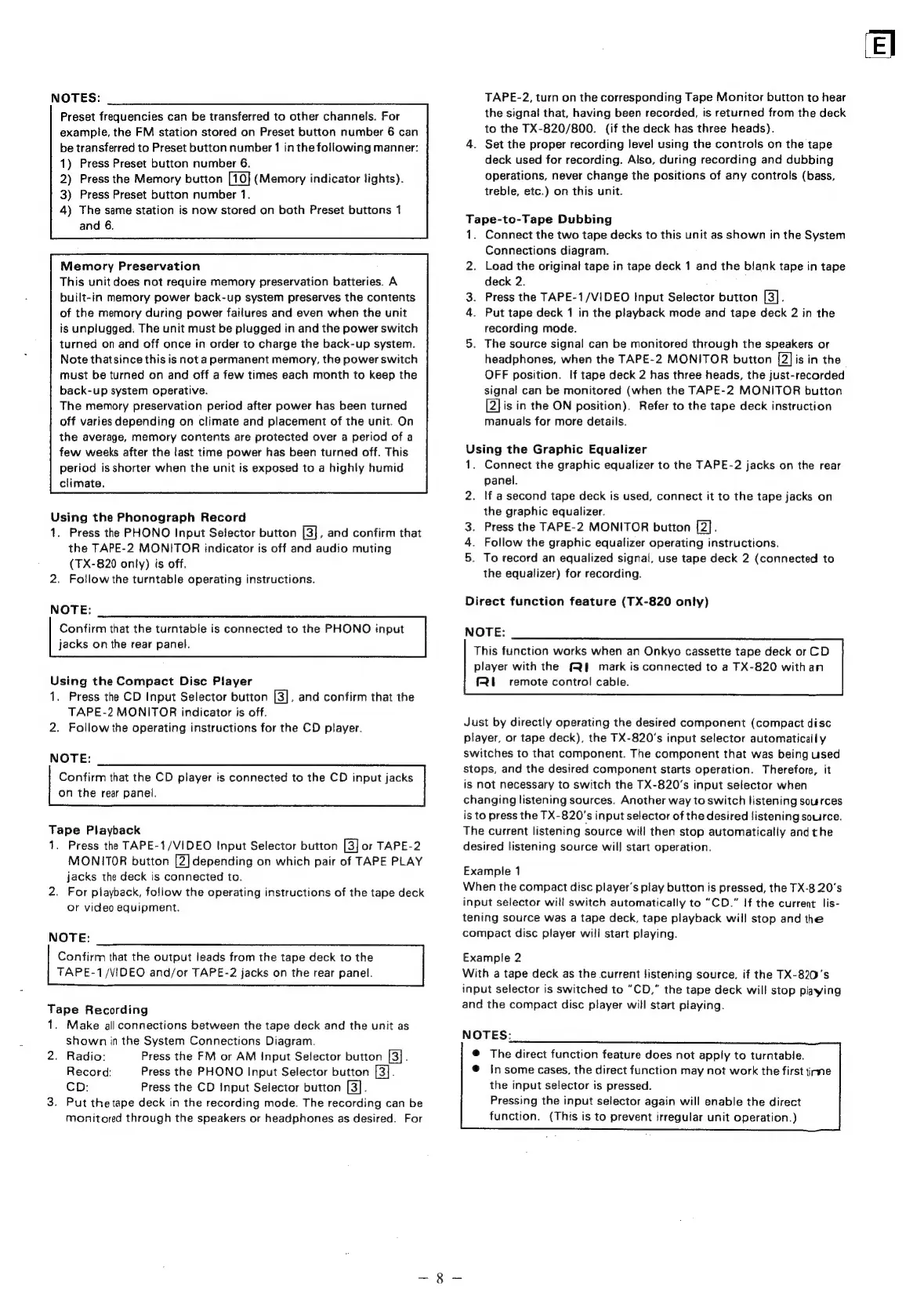

NOTES:
Preset frequencies can be transferred to other channels. For
example, the FM station stored on Preset button number 6 can
be transferred to Preset button number 1 in the following manner:
1) Press Preset button number 6.
2) Press the Memory button (Memory indicator lights).
3) Press Preset button number 1.
4) The same station is now stored on both Preset buttons 1
and 6.
Memory Preservation
This unit does not require memory preservation batteries. A
built-in memory power back-up system preserves the contents
of the memory during power failures and even when the unit
is unplugged. The unit must be plugged in and the power switch
turned on and off once in order to charge the back-up system.
Note thatsince this is not a permanent memory, the power switch
must be turned on and off a few times each month to keep the
back-up system operative.
The memory preservation period after power has been turned
off varies depending on climate and placement of the unit. On
the average, memory contents are protected over a period of a
few weeks after the last time power has been turned off. This
period is shorter when the unit is exposed to a highly humid
climate.
Using the Phonograph Record
1. Press the PHONO Input Selector button [3], and confirm that
the TAPE-2 MONITOR indicator is off and audio muting
(TX-820 only) is off.
2. Follow the turntable operating instructions.
NOTE:
Confirm that the turntable is connected to the PHONO input
jacks on the rear panel.
Using the Compact Disc Player
1. Press the CD Input Selector button [3], and confirm that the
TAPE-2 MONITOR indicator is off.
2. Follow the operating instructions for the CD player.
NOTE:
Confirm that the CD player is connected to the CD input jacks
on the rear panel.
Tape Playback
1. Press the TAPE-1/VIDEO Input Selector button [3] or TAPE-2
MONITOR button [2] depending on which pair of TAPE PLAY
jacks the deck is connected to.
2. For playback, follow the operating instructions of the tape deck
or video equipment.
NOTE:
Confirm that the output leads from the tape deck to the
TAPE-1/VIDEO and/or TAPE-2 jacks on the rear panel.
Tape Recording
1. Make all connections between the tape deck and the unit as
shown in the System Connections Diagram.
2. Radio: Press the FM or AM Input Selector button [3].
Record: Press the PHONO Input Selector button [3].
CD: Press the CD input Selector button [3].
3. Put the tape deck in the recording mode. The recording can be
monitored through the speakers or headphones as desired. For
TAPE-2, turn on the corresponding Tape Monitor button to hear
the signal that, having been recorded, is returned from the deck
to the TX-820/800. (if the deck has three heads).
4. Set the proper recording level using the controls on the tape
deck used for recording. Also, during recording and dubbing
Operations, never change the positions of any controls (bass,
treble, etc.) on this unit.
Tape-to-Tape Dubbing
1. Connect the two tape decks to this unit as shown in the System
Connections diagram.
2. Load the original tape in tape deck 1 and the blank tape in tape
deck 2.
3. Press the TAPE-1/VIDEO Input Selector button [3].
4. Put tape deck 1 in the playback mode and tape deck 2 in the
recording mode.
5. The source signal can be monitored through the speakers or
headphones, when the TAPE-2 MONITOR button is in the
OFF position. If tape deck 2 has three heads, the just-recorded
signal can be monitored (when the TAPE-2 MONITOR button
is in the ON position). Refer to the tape deck instruction
manuals for more details.
Using the Graphic Equalizer
1. Connect the graphic equalizer to the TAPE-2 jacks on the rear
panel.
2. If a second tape deck is used, connect it to the tape jacks on
the graphic equalizer.
. Press the TAPE-2 MONITOR button [2].
. Follow the graphic equalizer operating instructions.
5. To record an equalized signal, use tape deck 2 (connected to
the equalizer) for recording.
Bw
Direct function feature (TX-820 only)
NOTE:
This function works when an Onkyo cassette tape deck or CD
player with the {QI mark is connected to a TX-820 withan
fRI remote contro! cable.
Just by directly operating the desired component (compact disc
player, or tape deck), the TX-820’s input selector automatically
switches to that component. The component that was being used
stops, and the desired component starts operation. Therefore, it
is not necessary to switch the TX-820’s input selector when
changing listening sources. Another way to switch listening sources
is to press the TX-820’'s input selector of the desired fistening source.
The current listening source will then stop automatically and the
desired listening source wil] start operation.
Example 1
When the compact disc player's play button is pressed, the TX-8 20's
input selector will switch automatically to “CD.” If the current lis-
tening source was a tape deck, tape playback will stop and the
compact disc player will start playing.
Example 2
With a tape deck as the current listening source, if the TX-820's
input selector is switched to “CD,” the tape deck will stop playing
and the compact disc player will start playing.
NOTES:
@ The direct function feature does not apply to turntable.
@ Insome cases, the direct function may not work the first time
the input selector is pressed.
Pressing the input selector again will enable the direct
function. (This is to prevent irregular unit operation.)
