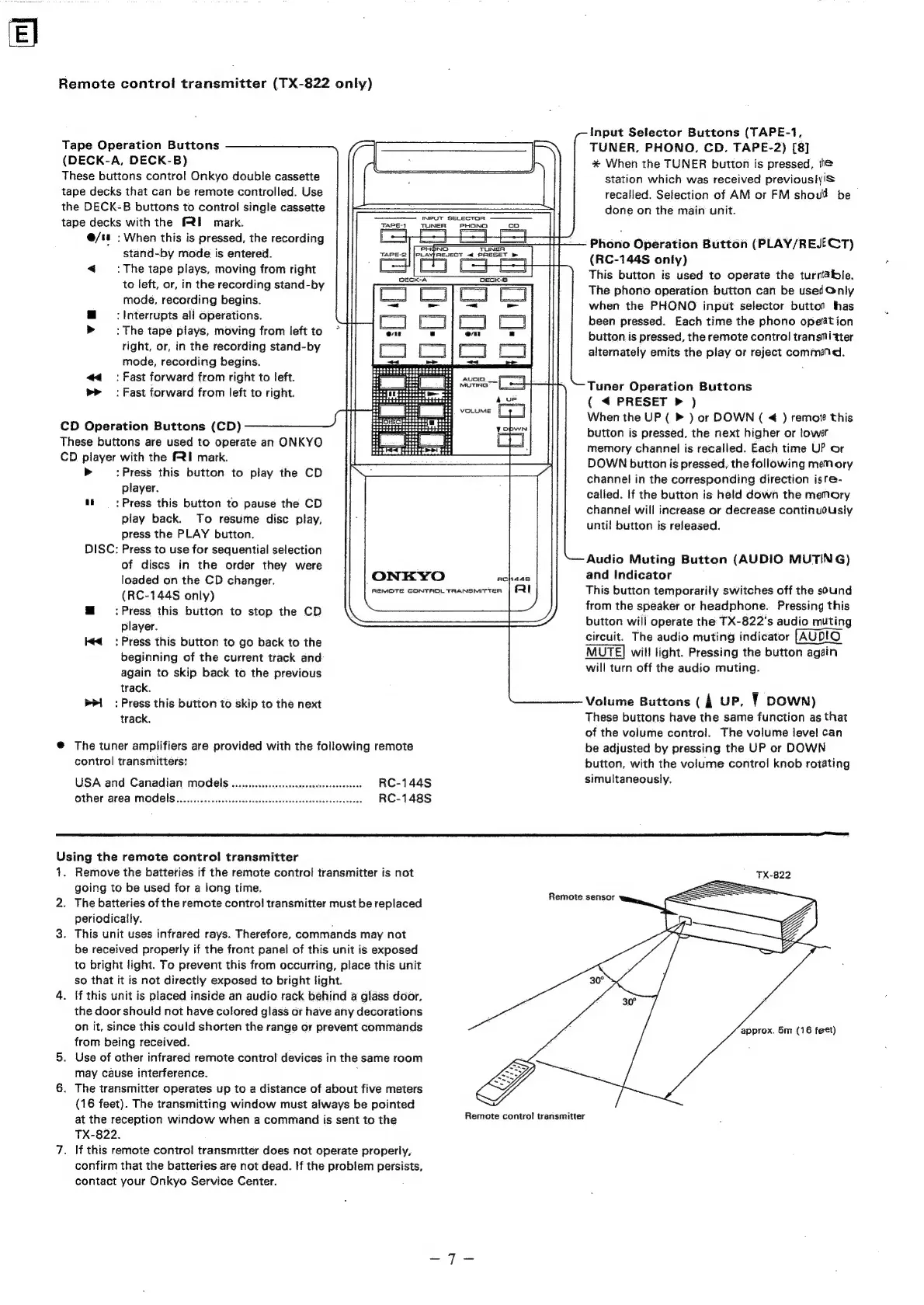

Remote control transmitter (TX-822 only)
Tape Operation Buttons
(DECK-A, DECK-B)
These buttons control Onkyo double cassette
tape decks that can be remote controlled. Use
the DECK-B buttons to control single cassette
tape decks with the FRI mark.
CD Operation Buttons (CD)
These buttons are used to operate an ONKYO
CD player with the (RI mark.
TAPE-1
INFUT SELECTOR
TUNER
PHONO
@/ts : When this is pressed, the recording
stand-by mode is entered.
< =: The tape plays, moving from right
to left, or, in the recording stand-by
mode, recording begins.
@ =: interrupts all operations.
» :The tape plays, moving from left to
right, or, in the recording stand-by
mode, recording begins.
<=: Fast forward from right to left.
>> : Fast forward from left to right.
> :Press this button to play the CD
player.
1! =: Press this button to pause the CD
play back. To resume disc play,
press the PLAY button.
DISC: Press to use for sequential selection
of discs in the order they were
loaded on the CD changer.
(RC-144S only)
@ Press this button to stop the CD
player.
4 : Press this button to go back to the
beginning of the current track and
again to skip back to the previous
track.
>i: Press this button to skip to the next
track.
The tuner amplifiers are provided with the following remote
control transmitters:
USA and Canadian models
Other area MOdEIS....... eee eee ceneeeesteesesteeensseeteeresee
RC-144S
RC-148S
ONKYO ma
REMOTE CONTROL TRANSMITTER
Input Selector Buttons (TAPE-1,
TUNER, PHONO, CD. TAPE-2) [8]
% When the TUNER button is pressed, te
station which was received previouslyiS
recalled. Selection of AM or FM should be
done on the main unit.
Phono Operation Button (PLAY/REJECT)
(RC-144S only)
This button is used to operate the turnlable.
The phono operation button can be used Only
when the PHONO input selector button has
been pressed. Each time the phono opelation
button is pressed, the remote control transmitter
alternately emits the play or reject comménd.
Tuner Operation Buttons
( «4 PRESET P )
When the UP ( » ) or DOWN ( € ) remote this
button is pressed, the next higher or lower
memory channel is recalled. Each time UP or
DOWN button is pressed, the following menory
channel in the corresponding direction isre-
called. If the button is held down the memory
channel will increase or decrease continuously
until button is released.
Audio Muting Button (AUDIO MUTING)
and Indicator
This button temporarily switches off the sound
from the speaker or headphone. Pressing this
button will operate the TX-822's audio muting
circuit. The audio muting indicator [AUDIO
MUTE| will light. Pressing the button again
will turn off the audio muting.
Volume Buttons (4 uP, 7 Down)
These buttons have the same function as that
of the volume control. The volume level can
be adjusted by pressing the UP or DOWN
button, with the volume control knob rotating
simultaneously.
Using the remote control transmitter
1.
2.
Remove the batteries if the remote control transmitter is not
going to be used for a long time.
The batteries of the remote control transmitter must be replaced
periodically.
This unit uses infrared rays. Therefore, commands may not
be received properly if the front panel of this unit is exposed
to bright light. To prevent this from occurring, place this unit
so that it is not directly exposed to bright fight.
. tf this unit is placed inside an audio rack behind a glass door,
the door should not have colored glass or have any decorations
on it, since this could shorten the range or prevent commands
from being received.
. Use of other infrared remote control devices in the same room
may cause interference.
. The transmitter operates up to a distance of about five meters
(16 feet). The transmitting window must always be pointed
at the reception window when a command is sent to the
TX-822.
. lf this remote control transmitter does not operate properly,
confirm that the batteries are not dead. If the problem persists,
contact your Onkyo Service Center.
Remote sensor
approx. 5m (16 feet)
Remote control transmitter
