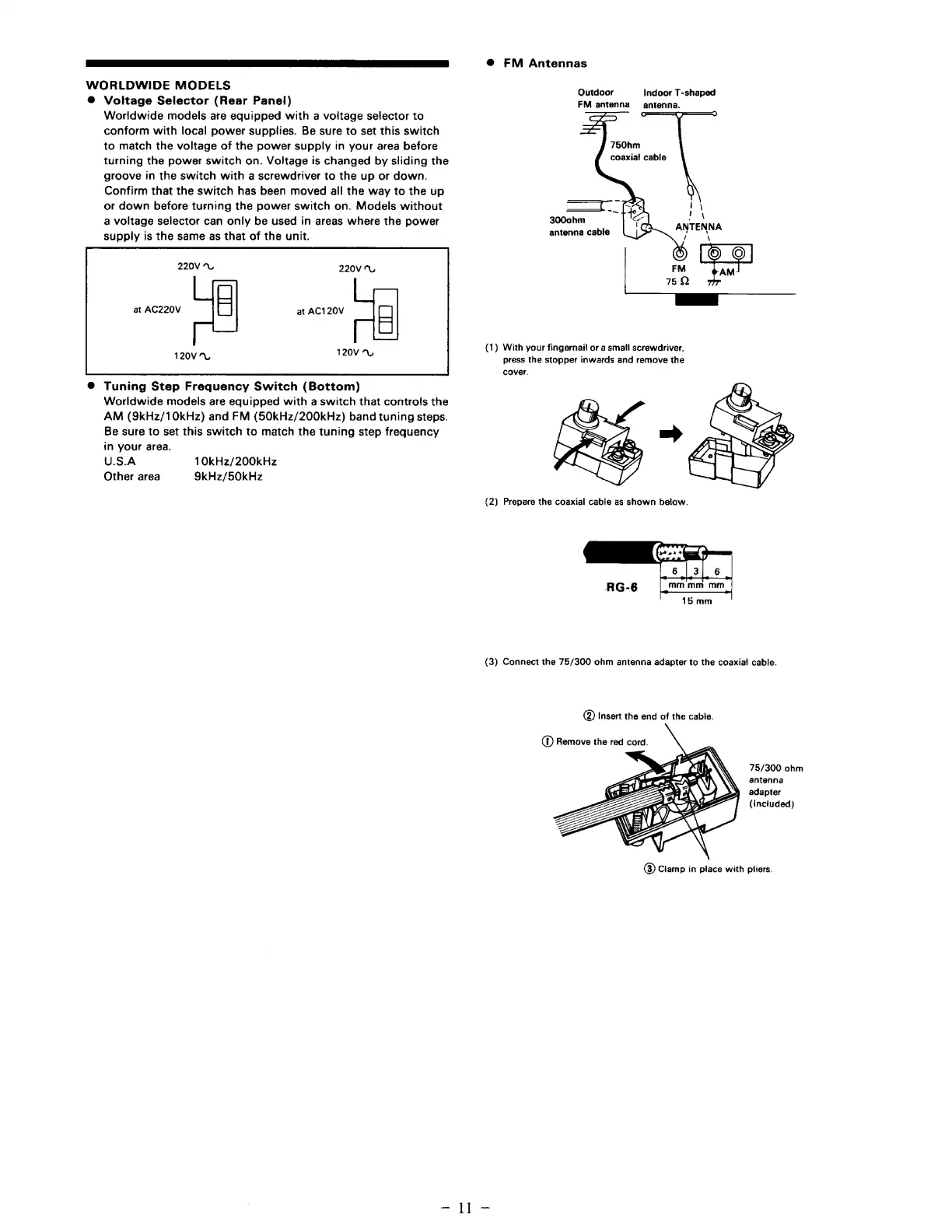

WORLDWIDE MODELS
® Voltage Selector (Rear Panel)
Worldwide models are equipped with a voltage selector to
conform with local power supplies. Be sure to set this switch
to match the voltage of the power supply in your area before
turning the power switch on. Voltage is changed by sliding the
groove in the switch with a screwdriver to the up or down.
Confirm that the switch has been moved all the way to the up
or down before turning the power switch on. Models without
a voltage selector can only be used in areas where the power
supply is the same as that of the unit.
at AC220V at AC120V
® Tuning Step Frequency Switch (Bottom)
Worldwide models are equipped with a switch that controls the
AM (9kHz/10kHz) and FM (50kHz/200kHz) band tuning steps.
Be sure to set this switch to match the tuning step frequency
in your area.
U.S.A 10kH2z/200kHz
Other area S9kHz/50kHz
® FM Antennas
Outdoor lndoor T-shaped
FM antenna = antenna.
coaxial cable
an
3000hm
antenna cable
by
ey
ANTENNA
/ \
(1) With your fingernail! or a smail screwdriver,
press the stopper inwards and remove the
cover.
(3) Connect the 75/300 ohm antenna adapter to the coaxial cable.
@) Insert the end of the cable.
O) Remove the red cord.
75/300 ohm
antenna
adapter
(inctuded)
@) Clamp in place with pliars.
