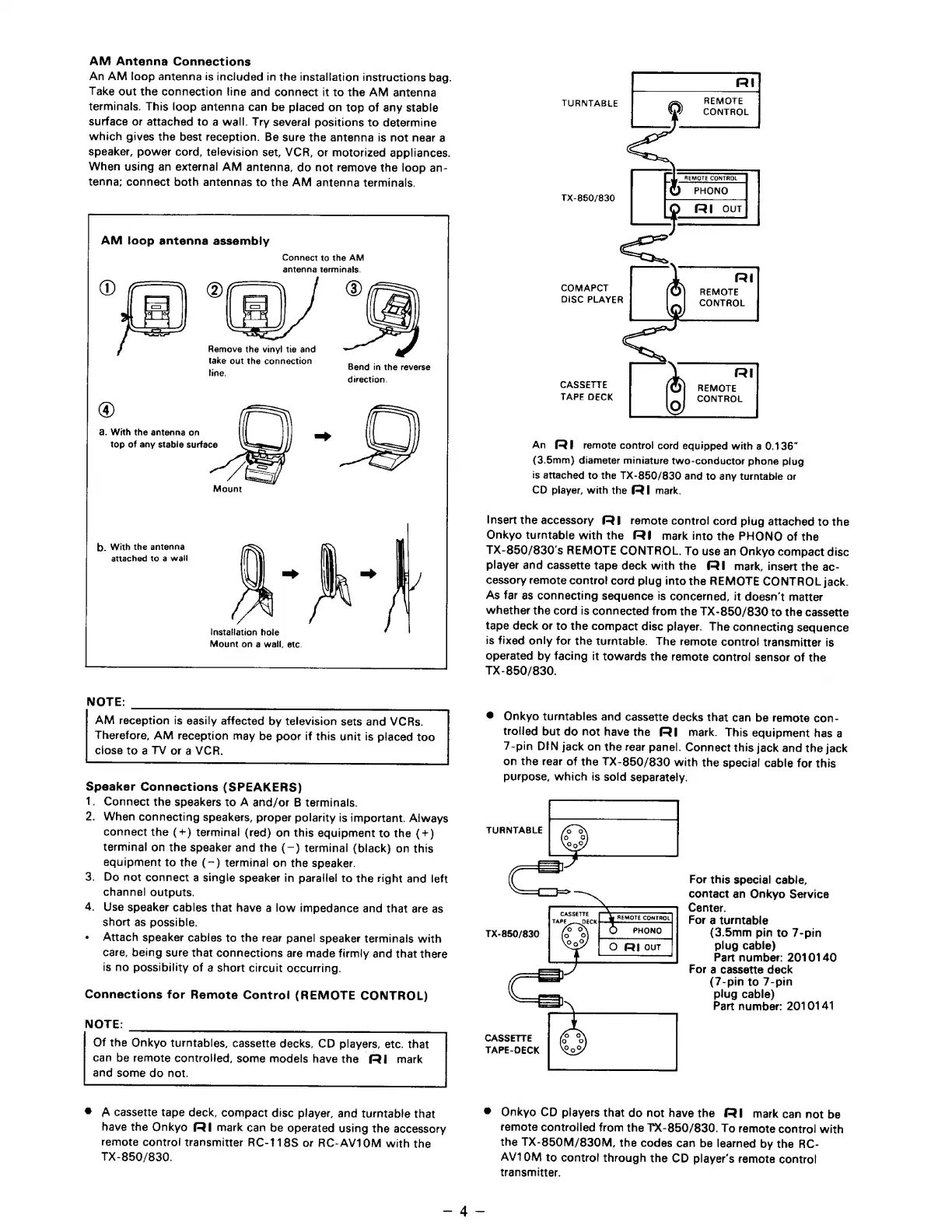

AM Antenna Connections
An AM loop antenna is included in the installation instructions bag.
Take out the connection line and connect it to the AM antenna
terminals. This loop antenna can be placed on top of any stable
surface or attached to a wall. Try several positions to determine
which gives the best reception. Be sure the antenna is not near a
speaker, power cord, television set, VCR, or motorized appliances.
When using an external AM antenna, do not remove the loop an-
tenna; connect both antennas to the AM antenna terminals.
AM loop antenna assembly
Connect to the AM
antenna terminals.
@)
Remove the vinyl tie and
take out the connection Bend in the reverse
direction.
®
a. With the antenna on
top of any stable surface
b. With the antenna
attached to a wall
Installation hole
Mount on a wail, etc.
NOTE:
AM reception is easily affected by television sets and VCRs.
Therefore, AM reception may be poor if this unit is placed too
close to a TV or a VCR.
Speaker Connections (SPEAKERS)
1. Connect the speakers to A and/or B terminals.
2. When connecting speakers, proper polarity is important. Always
connect the (+) terminal (red) on this equipment to the (+)
terminal on the speaker and the (—) terminal (black) on this
equipment to the (—) terminal on the speaker.
3. Do not connect a single speaker in parallel to the right and left
channel outputs.
4. Use speaker cables that have a low impedance and that are as
short as possible.
« Attach speaker cables to the rear panel speaker terminals with
care, being sure that connections are made firmly and that there
is no possibility of a short circuit occurring.
Connections for Remote Control (REMOTE CONTROL)
NOTE:
Of the Onkyo turntables, cassette decks, CD players, etc. that
can be remote controiled, some models have the FI mark
and some do not.
@ A cassette tape deck, compact disc player, and turntable that
have the Onkyo fR1 mark can be operated using the accessory
remote control transmitter RC-118S or RC-AV10M with the
TX-850/830.
REMOTE
CONTROL
TURNTABLE €)
,; REMOTE CONTROL
TX-850/830
(21
COMAPCT
REMOTE
DISC
PLAYER
CONTROL
RI
CASSETTE
REMOTE
TAPE DECK CONTROL
An f1 remote control cord equipped with a 0.136”
(3.5mm) diameter miniature two-conductor phone plug
is attached to the TX-850/830 and to any turntable or
CD player, with the (QI mark.
Insert the accessory fF} remote control cord plug attached to the
Onkyo turntable with the FRI mark into the PHONO of the
TX-850/830's REMOTE CONTROL. To use an Onkyo compact disc
player and cassette tape deck with the (QI mark, insert the ac-
cessory remote control cord piug into the REMOTE CONTROL jack.
As far as connecting sequence is concerned, it doesn’t matter
whether the cord is connected from the TX-850/830 to the cassette
tape deck or to the compact disc player. The connecting sequence
is fixed only for the turntable. The remote contro! transmitter is
operated by facing it towards the remote control! sensor of the
TX-850/830.
@ Onkyo turntables and cassette decks that can be remote con-
trolled but do not have the FRI mark. This equipment has a
7-pin DIN jack on the rear panel. Connect this jack and the jack
on the rear of the TX-850/830 with the special cable for this
purpose, which is sold separately.
TURNTABLE 63
0 Qo
For this special cable,
contact an Onkyo Service
Center.
For a turntabie
(3.5mm pin to 7-pin
plug cable)
Part number: 2010140
For a cassette deck
(7-pin to 7-pin
plug cable)
Part number: 2010141
TX-850/830
CASSETTE eS
TAPE-DECK e
® Onkyo CD players that do not have the (RI mark can not be
remote controlled from the TX-850/830. To remote contro! with
the TX-850M/830M, the codes can be learned by the RC-
AV10M to control through the CD player's remote control
transmitter.
