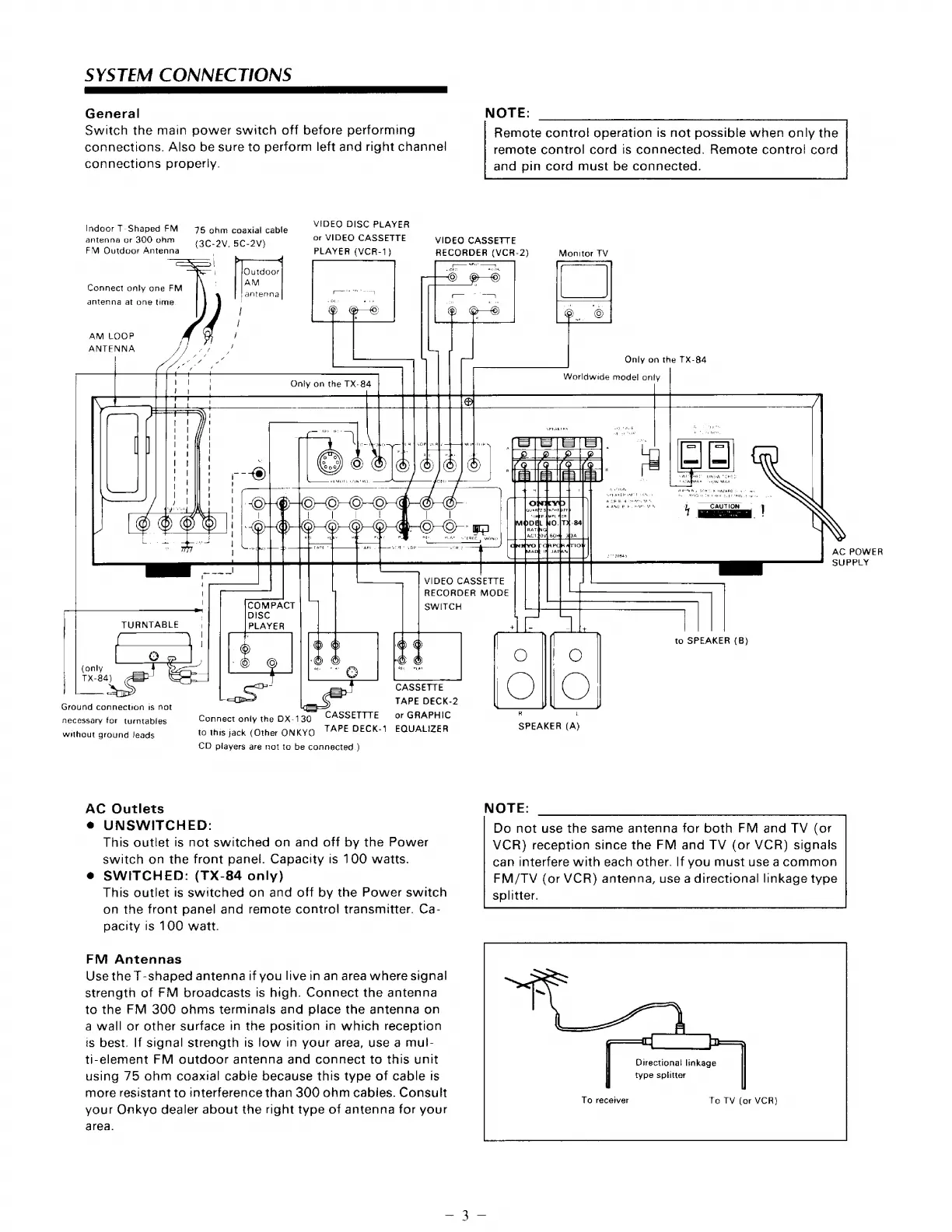

SYSTEM CONNECTIONS
General
Switch the main power switch off before performing
connections. Also be sure to perform left and right channel
connections properly.
VIDEO DISC PLAYER
or VIDEO CASSETTE
PLAYER (VCR-1)
Indoor T-Shaped FM
antenna or 300 ohm
FM Outdoor Antenna
75 ahm coaxial cable
{(3C-2V, 5C-2V)
Connect onty one FM
antenna at one time
AM LOOP
ANTENNA se
NOTE:
Remote control operation is not possible when only the
remote control cord is connected. Remote contra! cord
and pin cord must be connected.
VIDEO CASSETTE
RECORDER (VCR-2)}
Monitor TV
Only on the TX-84
Worldwide model only
!
t | 1
1 | |
1 | |
I 4 |
it
|} \
| t
I
|
| !
|
|
GG$GS
COMPACT
DISC
PLAYER
SWITCH
CASSETTE
; TAPE DECK-2
Ground connection is not —
necessary for turntables Connect only the DX-130 CASSETTTE — or GRAPHIC
without ground Jeads to this jack (Other ONKYO TAPE DECK-1 EQUALIZER
CD players are not to be connected )
AC Outlets
® UNSWITCHED:
This outlet is not switched on and off by the Power
switch on the front panel. Capacity is 100 watts.
@ SWITCHED: (TX-84 only)
This outlet is switched on and off by the Power switch
on the front panel and remote control transmitter. Ca-
pacity is 100 watt.
FM Antennas
Use the T-shaped antenna if you live in an area where signal
strength of FM broadcasts is high. Connect the antenna
to the FM 300 ohms terminals and place the antenna on
a wall or other surface in the position in which reception
is best. If signal strength is low in your area, use a mul-
ti-element FM outdoor antenna and connect to this unit
using 75 ohm coaxial cable because this type of cable ts
more resistant to interference than 300 ohm cables. Consult
your Onkyo dealer about the right type of antenna for your
area.
VIDEO CASSETTE
RECORDER MODE
AC POWER
SUPPLY
2c Pgs
to SPEAKER (B)
R L
SPEAKER (A)
NOTE:
Do not use the same antenna for both FM and TV (or
VCR) reception since the FM and TV (or VCR) signals
can interfere with each other. If you must use a common
FM/TV (or VCR) antenna, use a directional linkage type
splitter.
Directional linkage
type splitter
To receiver To TV (or VCR)
