Onkyo TX-84 - FRONT PANEL FACILITIES; 12 FM Mute;Mode Switch (FM MUTE;MODE); 14 Volume control and Indicator (VOLUME); 15 Stereo Image Expander Switch and Level Control and Indicator (TX-84 only)

Onkyo TX-84
14 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...

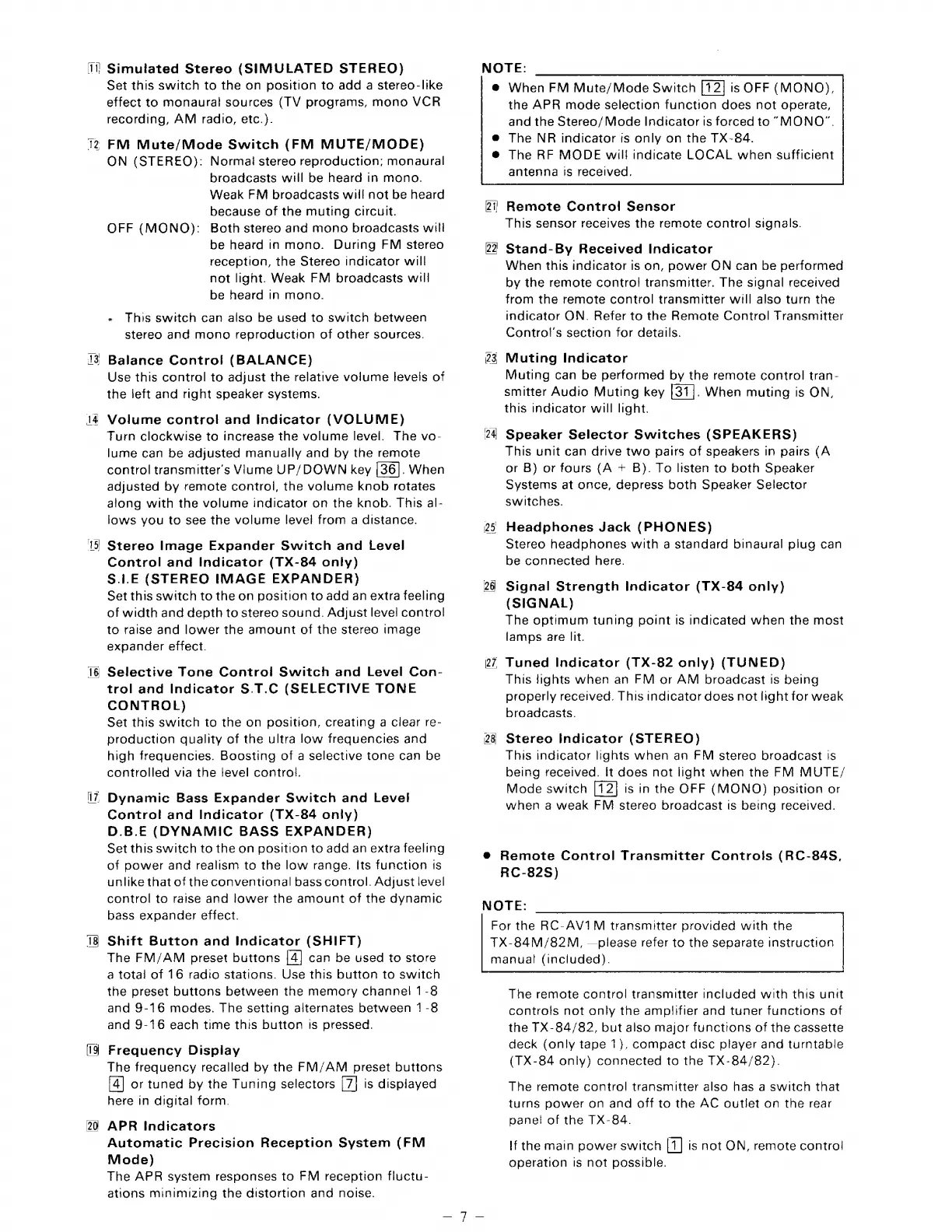

i
—!
4
:
Simulated
Stereo
(SIMULATED
STEREO)
Set
this
switch
to
the
on
position
to
add
a
stereo-like
effect
to
monaural
sources
(TV
programs,
mono
VCR
recording,
AM
radio,
etc.).
|
FM
Mute/Mode
Switch
(FM
MUTE/MODE)
ON
(STEREO):
Normal
stereo
reproduction;
monaural
broadcasts
will
be
heard
in
mono.
Weak
FM
broadcasts
will
not
be
heard
because
of
the
muting
circuit.
OFF
(MONO):
Both
stereo
and
mono
broadcasts
will
be
heard
in
mono.
During
FM
stereo
reception,
the
Stereo
indicator
will
not
light.
Weak
FM
broadcasts
will
be
heard
in
mono.
»
This
switch
can
also
be
used
to
switch
between
stereo
and
mono
reproduction
of
other
sources.
13
Balance
Control
(BALANCE)
Use
this
control
to
adjust
the
relative
volume
leveis
of
the
left
and
right
speaker
systems.
Volume
control
and
Indicator
(VOLUME)
Turn
clockwise
to
increase
the
volume
level.
The
vo-
lume
can
be
adjusted
manually
and
by
the
remote
control
transmitters
Viume
UP/DOWN
key
[36].
When
adjusted
by
remote
control,
the
volume
knob
rotates
along
with
the
volume
indicator
on
the
knob.
This
al-
lows
you
to
see
the
volume
level
from
a
distance.
Stereo
Expander
Switch
and
Level
Control
and
Indicator
(TX-84
only)
S.1.E
(STEREO
EXPANDER)
Set
this
switch
to
the
on
position
to
add
an
extra
feeling
of
width
and
depth
to
stereo
sound.
Adjust
level
control
to
raise
and
lower
the
amount
of
the
stereo
expander
effect.
Selective
Tone
Control
Switch
and
Level
Con-
trol
and
Indicator
$.T.C
(SELECTIVE
TONE
CONTROL)
Set
this
switch
to
the
on
position,
creating
a
clear
re-
production
quality
of
the
ultra
low
frequencies
and
high
frequencies.
Boosting
of
a
selective
tone
can
be
controlled
via
the
level
control.
;
Dynamic
Bass
Expander
Switch
and
Level
Control
and
Indicator
(TX-84
only)
D.B.E
(DYNAMIC
BASS
EXPANDER)
Set
this
switch
to
the
on
position
to
add
an
extra
feeling
of
power
and
realism
to
the
low
range.
Its
function
is
unlike
that
of
the
conventional
bass
control.
Adjust
level
control
to
raise
and
lower
the
amount
of
the
dynamic
bass
expander
effect.
Shift
Button
and
Indicator
(SHIFT)
The
FM/AM
preset
buttons
can
be
used
to
store
a
total
of
16
radio
stations.
Use
this
button
to
switch
the
preset
buttons
between
the
memory
channel
1-8
and
9-16
modes.
The
setting
alternates
between
1-8
and
9-16
each
time
this
button
!s
pressed.
Frequency
Display
The
frequency
recalled
by
the
FM/AM
preset
buttons
or
tuned
by
the
Tuning
selectors
is
displayed
here
in
digital
form.
APR
Indicators
Automatic
Precision
Reception
System
(FM
Node)
The
APR
system
responses
to
FM
reception
fluctu-
ations
minimizing
the
distortion
and
noise.
When
FM
Mute/Mode
Switch
is
OFF
(MONO),
the
APR
mode
selection
function
does
not
operate,
and
the
Stereo/
Mode
Indicator
is
forced
to
“MONO”.
The
NR
indicator
is
only
on
the
TX-84.
The
RF
MODE
wil!
indicate
LOCAL
when
sufficient
antenna
is
received.
2i]
Remote
Control
Sensor
This
sensor
receives
the
remote
control
signals.
22
Stand-By
Received
Indicator
When
this
indicator
is
on,
power
ON
can
be
performed
by
the
remote
control
transmitter.
The
signal
received
from
the
remote
control
transmitter
will
also
turn
the
indicator
ON.
Refer
to
the
Remate
Control
Transmitter
Contral’s
section
for
details.
23
Muting
Indicator
Muting
can
be
performed
by
the
remote
control
tran-
smitter
Audio
Muting
key
[31].
When
muting
is
ON,
this
indicator
will
light.
24
Speaker
Selector
Switches
(SPEAKERS)
This
unit
can
drive
two
pairs
of
speakers
in
pairs
(A
or
B)
or
fours
(A
+
B).
To
listen
to
both
Speaker
systems
at
once,
depress
both
Speaker
Selector
switches.
Headphones
Jack
(PHONES)
Stereo
headphones
with
a
standard
binaural
plug
can
be
connected
here.
26
Signal
Strength
Indicator
(TX-84
only)
(SIGNAL)
The
optimum
tuning
point
is
indicated
when
the
most
lamps
are
lit.
27
Tuned
Indicator
(TX-82
only)
(TUNED)
This
lights
when
an
FM
or
AM
broadcast
is
being
properly
received.
This
indicator
does
not
light
for
weak
broadcasts.
28
Stereo
Indicator
(STEREO)
This
indicator
lights
when
an
FM
stereo
broadcast
|s
being
received.
It
does
not
light
when
the
FM
MUTE/
Mode
switch
is
in
the
OFF
(MONO)
position
or
when
a
weak
FM
stereo
broadcast
ts
being
received.
®
Remote
Control
Transmitter
Controls
(RC-84S,
RC-82S)
NOTE:
For
the
RC-AV1M
transmitter
provided
with
the
TX-84M/82M,
—please
refer
to
the
separate
instruction
manual
(included).
The
remote
control
transmitter
included
with
this
unit
controls
not
only
the
amplifier
and
tuner
functions
of
the
TX-84/82,
but
also
major
functions
of
the
cassette
deck
(only
tape
1),
compact
disc
player
and
turntable
(TX-84
only)
connected
to
the
TX-84/82).
The
remote
control
transmitter
also
has
a
switch
that
turns
power
on
and
off
to
the
AC
outlet
on
the
rear
panel
of
the
TX-84.
lf
the
main
power
switch
is
not
ON,
remote
contro!
operation
Is
not
possible.
