5.1.2 Channel System + ZONE SPEAKER
78
1
3
2
45
6
MAIN ROOM

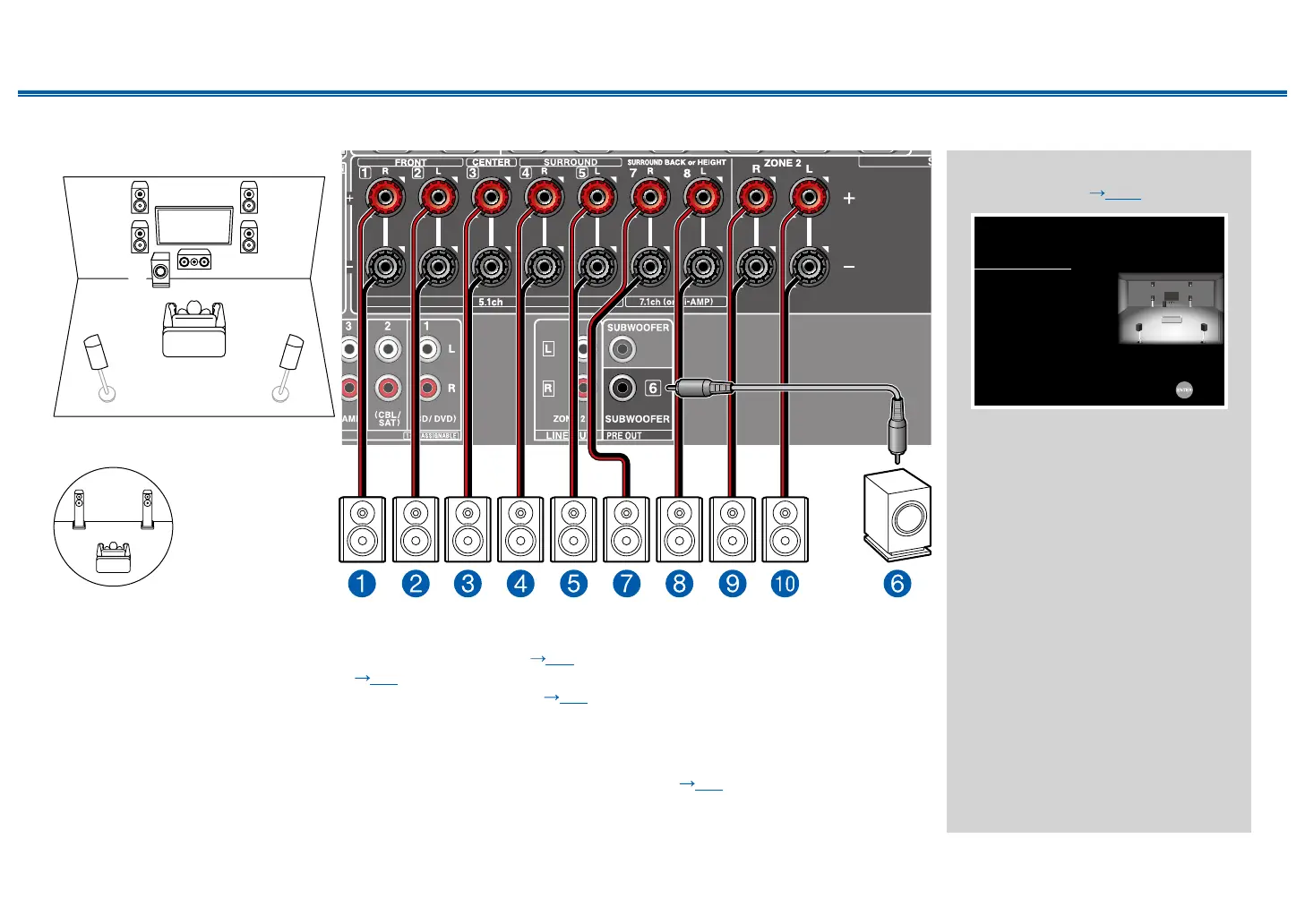

MAIN ROOM: This is a combination of the 5.1 Channel System and front high speakers. A front high speaker is a type of
height speaker. You can select only one set of height speakers from the following three types for connection.
❏ Front High Speakers/Rear High Speakers Installation Example ( p17)
❏ Ceiling Speakers Installation Example ( p18)
❏ Dolby Enabled Speakers (Dolby Speakers) Installation Example ( p19)
ZONE 2: You can enjoy 2-ch audio in the separate room (ZONE 2) while performing playback in the main room (where
this unit is located). The same source can be played back in the main room and ZONE 2 simultaneously. Also, dierent
sources can be played back in both rooms. To output audio from an externally connected AV component to ZONE 2, use
either a digital coaxial cable, digital optical cable or analog audio cable for connection. ( p37)
• While ZONE 2 playback is being performed, height speakers installed in the main room cannot play audio.
“Speaker Setup” settings during
Initial Setup ( p117)
Speaker Setup
Speaker Channels
Subwoofer
Height Speaker
Zone Speaker
Bi-Amp
Select how many speakers you have.
Next
5.1.2 ch
< >
Yes
Front High
Zone 2
No
• Speaker Channels: 5.1.2 ch
• Subwoofer: Yes
• Height Speaker: Select the type of
height speaker actually installed.
• Zone Speaker: Zone 2
• Bi-Amp: No
ZONE 2
To Next Page
