Onkyo TX-NR708 User Manual

74
En
*2
The following iPod models are not supported in Standard
Mode. These iPod models can only be controlled in Extended
Mode.
*3
When you disconnect the iPod/iPhone, the AV receiver stores
the mode. This means that if you disconnect when in
Extended Mode, the AV receiver will start in Extended Mode
when you next connect the iPod/iPhone.
*4
Displays a list.
*5
Plays all tracks in random order.
*6
Displays information about currently playing track.
Models sold are different depending on the region.
• iPod (5th generation)
• iPod nano (1st generation)

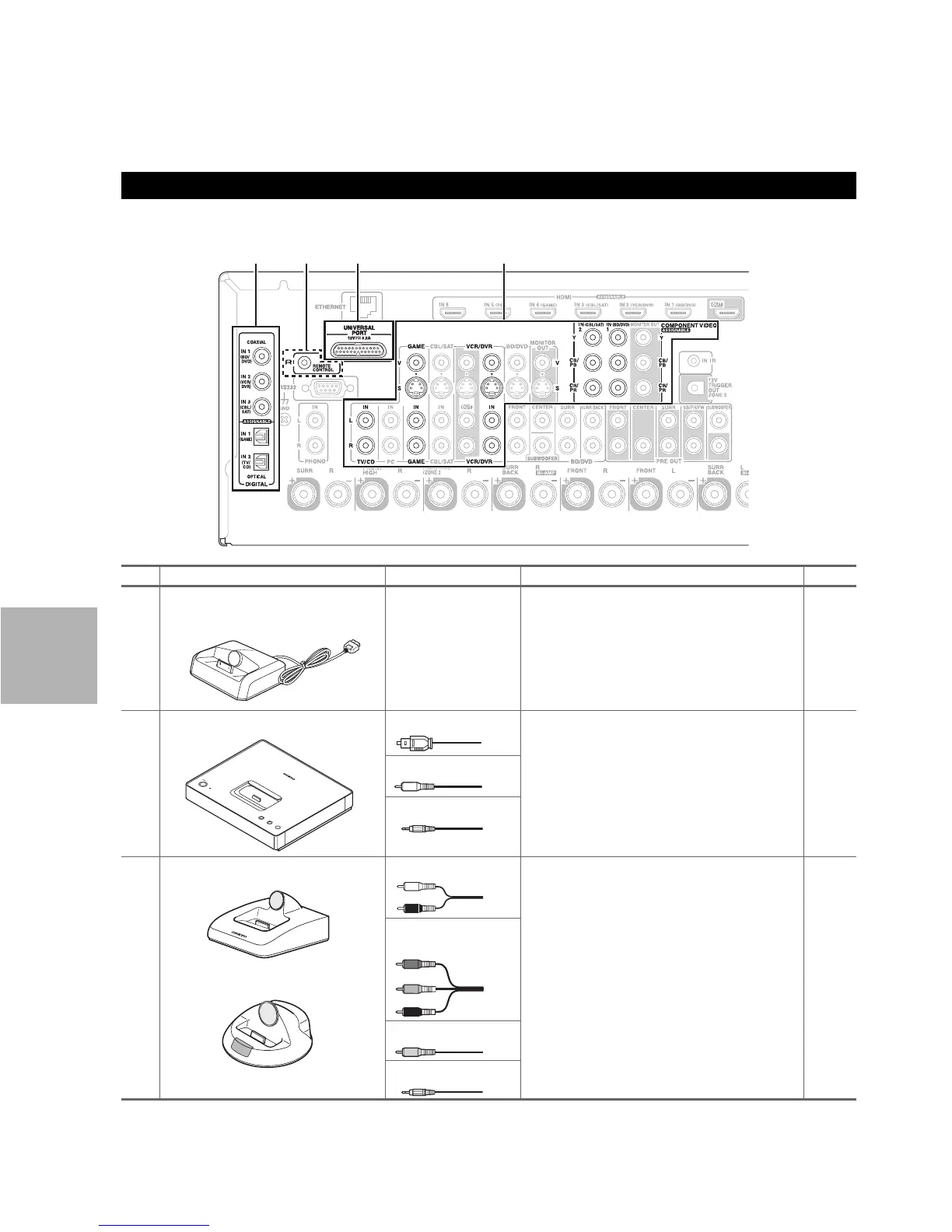

Connecting an Onkyo Dock
*1
BCA
No. Onkyo Dock Cable Note Page
A
UP-A1 Dock
(Universal Port Option Dock)
— • When UP-A1 Dock that seated iPod is connected,
the power consumption on standby mode slightly
increases.
• You can control your iPod when PORT is
selected as the input source.
• See the UP-A1 Dock’s instruction manual for
more information.
75
B
ND-S1 Optical digital audio • See the ND-S1’s instruction manual for more
information.
*1
The ND-S1’s audio outputs are digital outputs.
If the digital audio input on your AV receiver
cannot be assigned to an input selector whose
Input Display can be set to “DOCK”, do not
connect the u cable, otherwise a malfunction
may occur.
75
Coaxial digital audio
u cable
*1
C
RI Dock Analog audio (RCA) • See the RI Dock’s instruction manual for more
information.
*1
To use u (Remote Interactive), you must
make an analog audio connection (RCA)
between the AV receiver and the RI Dock.
76
Component video
Composite video
u cable
*1
YB
D
N
A
T
S
/
NO
Y
B
D
N
A
TS
d
o
Pi
C
P
/
C
NY
S
C
NY
S
N
U
Y
P
B/CB
PR/CR

Onkyo TX-NR708 Specifications

Power

power supply	AC 220–240 V~, 50/60 Hz
power consumption	570 W
dynamic power (3 Ω)	250 W
dynamic power (4 Ω)	220 W
dynamic power (8 Ω)	130 W

Amplifier Specifications

power output (front L/R)	170 W/Ch (6 Ω, 1 kHz, 1 channel driven, IEC)
power output (center)	170 W (6 Ω, 1 kHz, 1 channel driven, IEC)
power output (surround L/R)	170 W/Ch (6 Ω, 1 kHz, 1 channel driven, IEC)
thd (total harmonic distortion)	0.08% (Rated power)
damping factor	60 (Front, 1 kHz, 8 Ω)

Audio Specifications

input sensitivity and impedance (line)	200 mV/47 kΩ
input sensitivity and impedance (phono MM)	2.5 mV/47 kΩ
frequency response	5 Hz–100 kHz/+1 dB, -3 dB (DSP bypass)
tone control (bass)	±10 dB, 50 Hz
tone control (treble)	±10 dB, 20 kHz

Video Specifications

video input sensitivity/output level and impedance (component and S-Video Y)	1.0 Vp–p/75 Ω
video input sensitivity/output level and impedance (component PB/CB, PR/CR)	0.7 Vp–p/75 Ω
video input sensitivity/output level and impedance (S-Video C)	0.25 Vp–p/75 Ω
video input sensitivity/output level and impedance (composite)	1.0 Vp–p/75 Ω
component video frequency response	5 Hz–100 MHz/0 dB, -3 dB

Tuner Specifications

tuning frequency range (fm)	87.5 MHz–108 MHz
tuning frequency range (am)	522 kHz–1, 611 kHz
fm/am preset memory	40 stations

Weight and Dimensions

weight	12.5 kg
dimensions	435 x 175 x 379 mm
carton dimensions	570 x 298 x 469 mm
carton weight	16.5 kg
