Onkyo TX-RZ800

Schematic Diagram
5 4 3
2
1
6
D
C
A
B
D
C
A
B
5 4 3
2
1
6

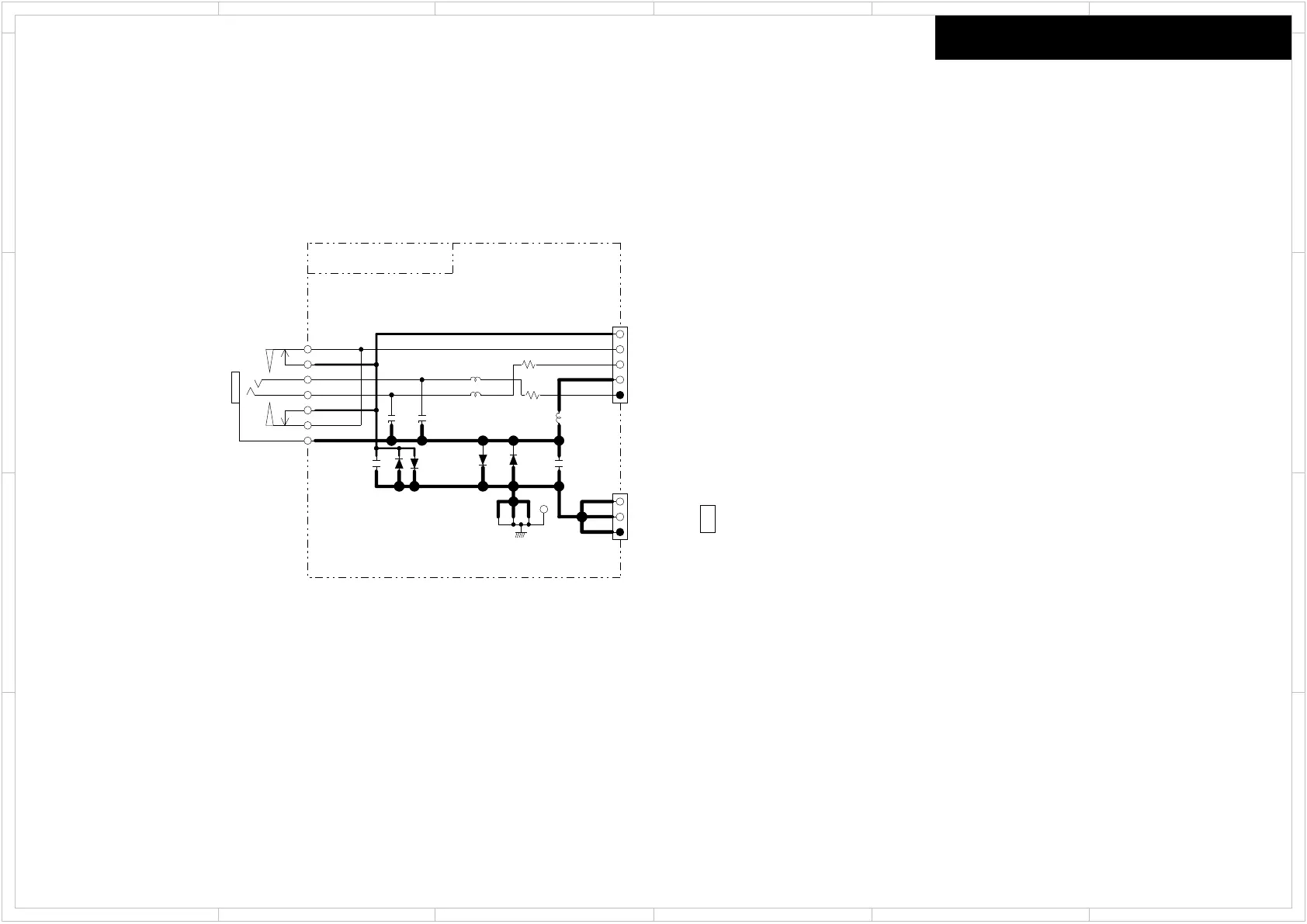

DISPLAY SECTION(HP BOARD)
GND_HP
HPR
HPL
HPDET
HPDET
GND_DG
CH_GND
102J
C7583
102J
C7580
C7582
102J
C7581
102J
P7562B
NSCT-3P874
1 2 3
P6605B
NPLG-5P119
1 2 3 4 5
D7583
NC
D7580
NC
D7581
NC
D7582
NC
P7580
MSJ-064-05A GR
1
2
3
4
5
7
8
LBC2518T2R2M
L7581
LBC2518T2R2M
L7580
LBC2518T2R2M
L7582
R7581
1/2W
390
R7580
1/2W390
TP101
P7581
NTM-1P233(M1969)
1 2 3 4
TO BATRM-1804(PART-36)
HEADPHONE
BAETC-1819
MODEL NO.DTR-50.7/60.7 DHC-60.7 SCHEMATIC DIAGRAM(PART-29)
TO BASW-1817(PART-27)
KEY
DISPLAY SECTION(HP BOARD)
TO BAAF-1785(PART-4)
R7580/7581 DTR-60.7/50.7 390ohm 1/2W
DHC-60.7 33ohm 1/2W
(DTR-50.7/60.7) (DHC-60.7)
