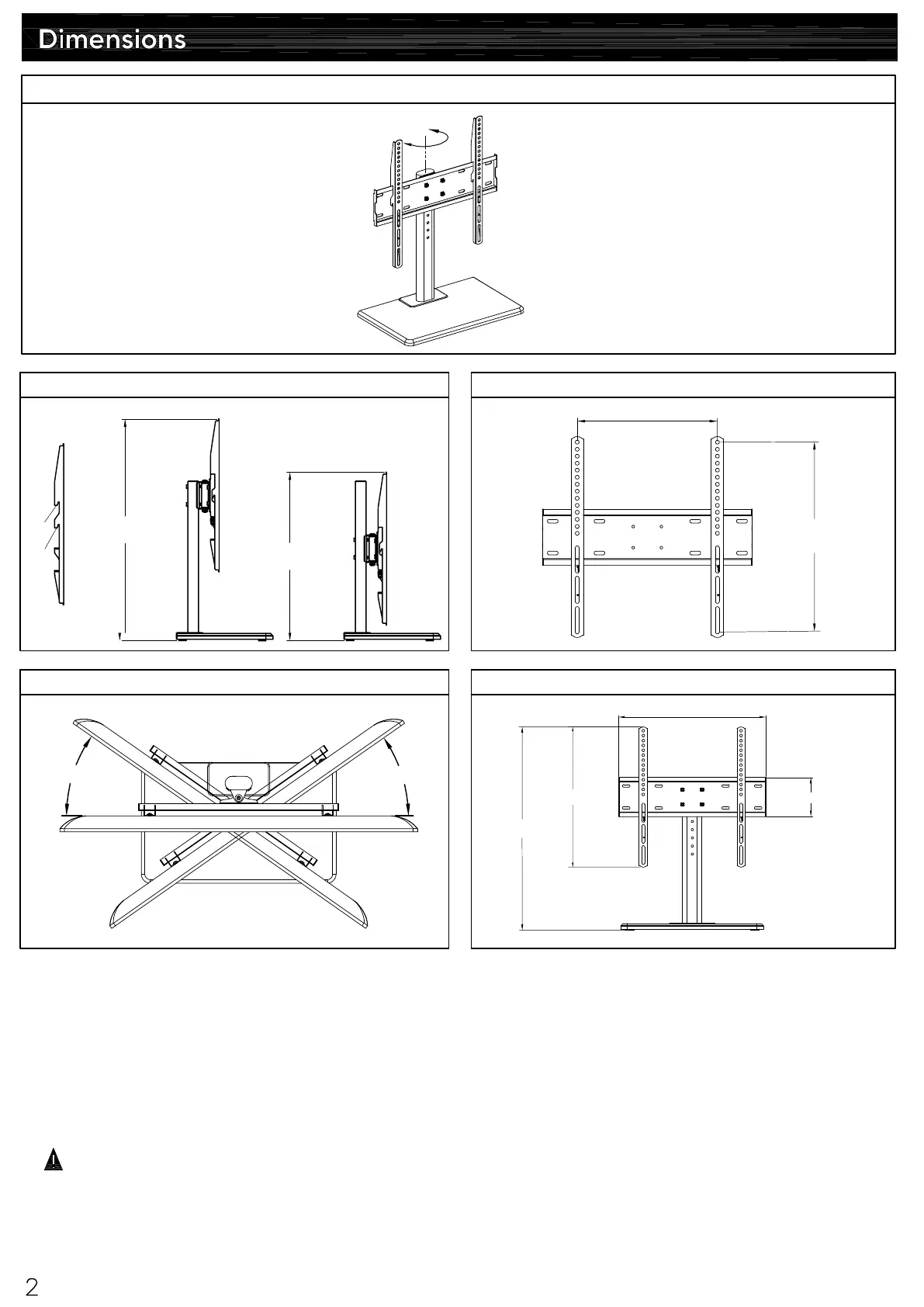

Onn 100010116 - Product Dimensions and Overview; Visual Dimensions and Interface; Assembly Preparation Tips; Weight Capacity Warning

VESA INTERFACE
SIDE VIEW
FULLY ASSEMBLED MOUNT
TOP VIEW-SWIVEL
ASSEMBLY TIPS:
1. Carefully read the entire Product Guide before beginning your installation.
2. Make sure that all parts are in the box and in good condition.
3. Assemble the product on open flat carton or a rug to protect the product and your floor.
4. Do not install on sloping surface.
5. Two people are recommended for proper assembly.
±
3
5
°
S
w
iv
e
l
PRODUCT OVERVIEW
①
24.41" / 620mm
②
26.77" / 680mm
①
18.50" / 470mm
②
20.87" / 530mm
17.72" (450mm)
24.41" / 620mm
26.77" / 680mm
4.72" (120mm)
MAX: 400mm (15.75")
MIN: 75mm (2.95")
MAX: 400mm (15.75")
MIN: 75mm (2.95")
16.93" (430mm)
①
②
35°
35°
CAUTION
:
This swivel TV base is intended for use only with the maximum weights indicated. Used with products
heavier than the maximum weight indicated may result in collapse of the mount and its accessories causing
possible injury.
