SYSTEM OVERVIEW
The system contains three sets of hardware and the
necessary assembly screws:
1. A soldered sensor headboard with screw−on lens
AF0130_CSP87_SER_DEMO3_REV0 + 5 V 4 A
power supply
2. A laser driver board
IM1068_LASER_DRIVER_BOARD_REV2 +
12 V 9.2 A power supply
3. The demo3 USB interface board AGB1NOCS
REV7 + tripod stand & USB3 cable
Sensor Headboard

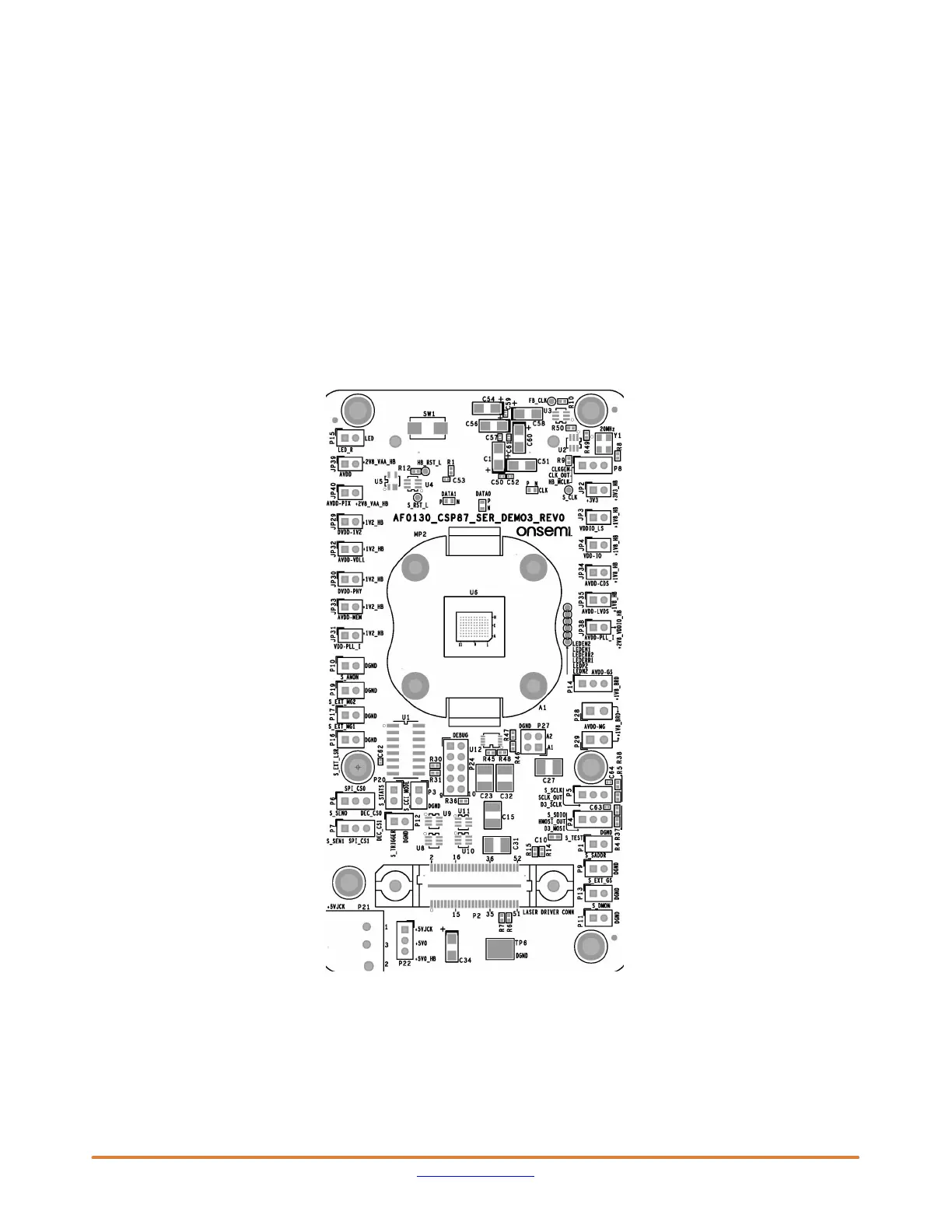

Figure 2 gives a top view of the sensor headboard and
orientation of the sensor.
ATTENTION: Please make sure to connect the 5 V power
supply for the sensor headboard and not
the 12 V.
The included lens set and its adapter consist of:
• Largan Precision Co. 920−960 nm, CRA < 29.8 deg lens
• King Ray Technology 940 nm Band Pass Filter, 3.35 x
3.35 T 0.21 mm
• Lens Mount: Demo to C−mount
• Lens Adapter: C−mount to M18 x 0.35
• Lens Adapter: M18 x 0.35 to M6.9 x 0.25
• 4 mm Lens Extension
Figure 2. Top View Sensor Headboard
