130 Vehicle care

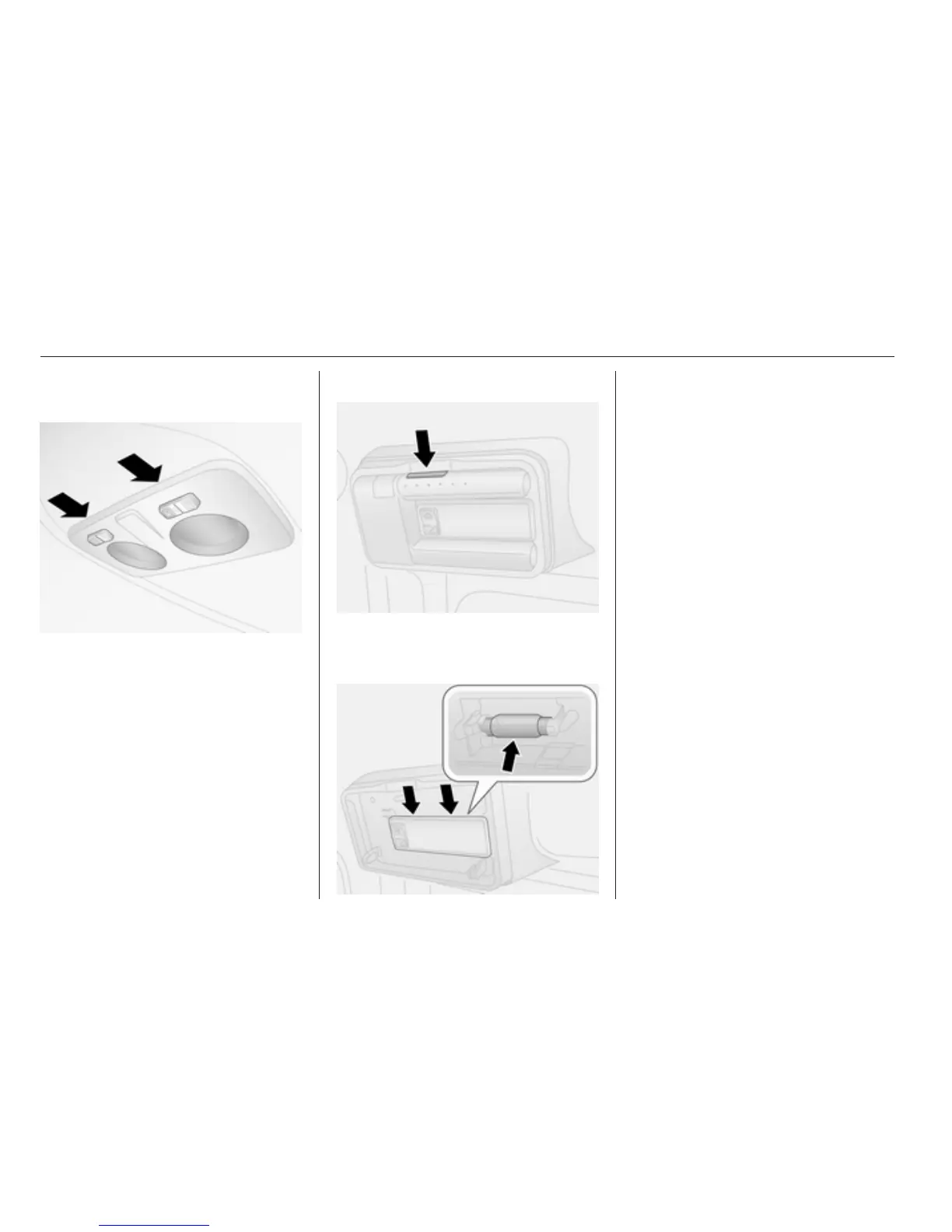

Front courtesy light, reading
lights
1. Remove lens using a flat blade
screwdriver.
2. Open the rear cover.
3. Renew bulbs.
4. Close rear cover.
5. Reinstall lens.
Removable rear courtesy light
1. Press the button at the top of the
lamp assembly to release it and
pull down gently to remove.
2. Prise the lamp assembly out with
a flat blade screwdriver at the
points illustrated.
3. Renew bulb.
4. Reinstall lamp assembly.
Instrument panel
illumination
Have bulbs replaced by a workshop.
