182 Self-help, vehicle care

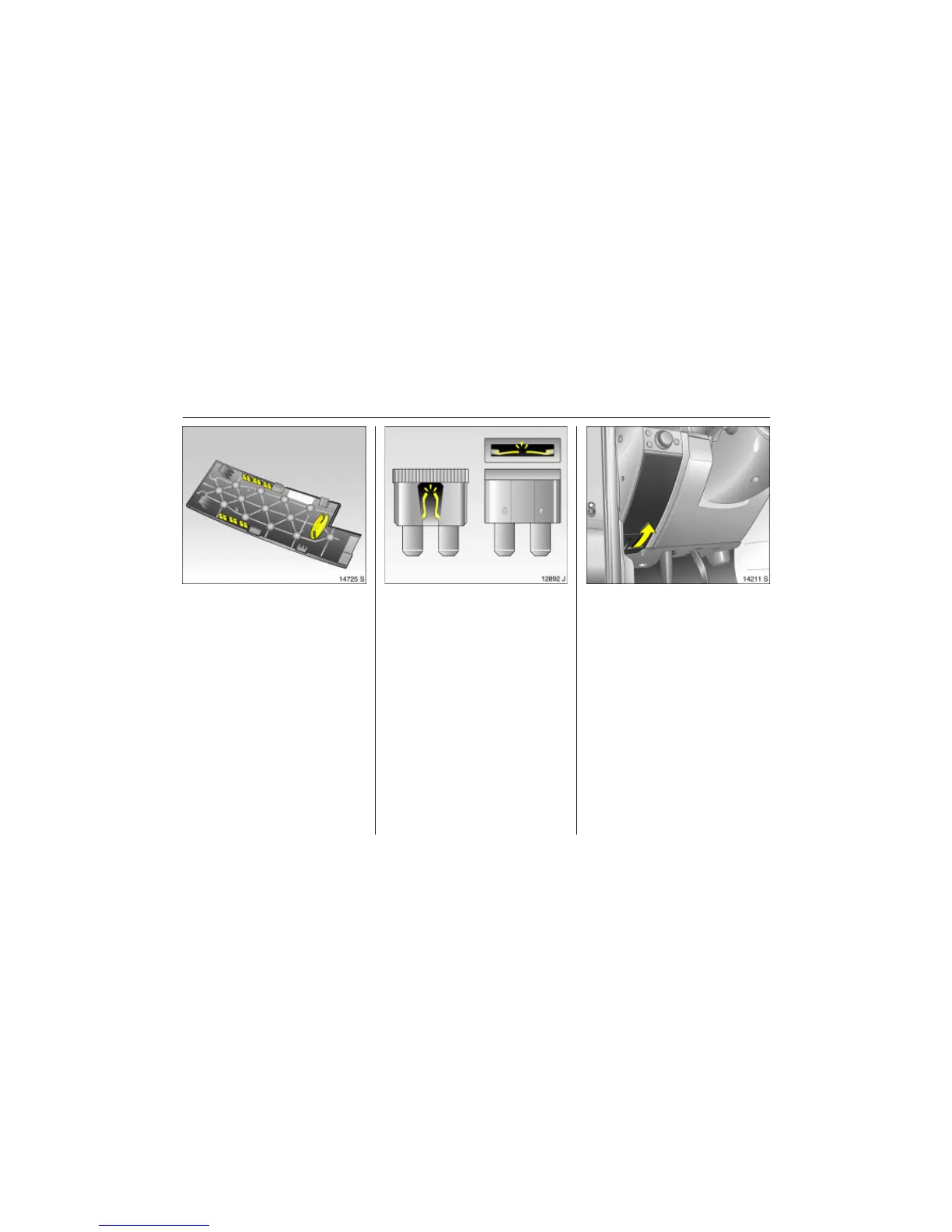

Picture no: 14725s.tif
Keep spare fuses in the fuse box lid (shown
in yellow in the Fig.). Open lid 3 182.
Before replacing a fuse, turn off the
respective switch and the ignition.
A blown fuse can be recognised by its
melted wire. Do not replace the fuse until
the cause of the fault has been remedied.
To help in replacing fuses, there is a special
fuse-gripping tool in the fuse box 3.
Picture no: 12892j.tif
Slot fuse-gripping tool onto fuse and
withdraw it.
Some functions are protected by several
fuses.
There may be fuses inserted with no
function.
Always use fuses with the correct current
value. This is shown on each fuse, and is
also indicated by the fuse colour and the
plug-in location in the fuse box.
Different versions of fuses are used.
Picture no: 14211s.tif
Fuses and the most important
circuits they protect
Fuse box in passenger compartment
Disengage fuse box cover at bottom and
remove.
No. Circuit
1 Central control unit
2 Immobiliser, hazard warning
lamps, exterior lighting
3 Headlamp washer system
