26
5. Remove the two lower side fixing
screws from the wheel arches.
6. Pull the bumper horizontally for
about 10 cm until the attachment
points come away.

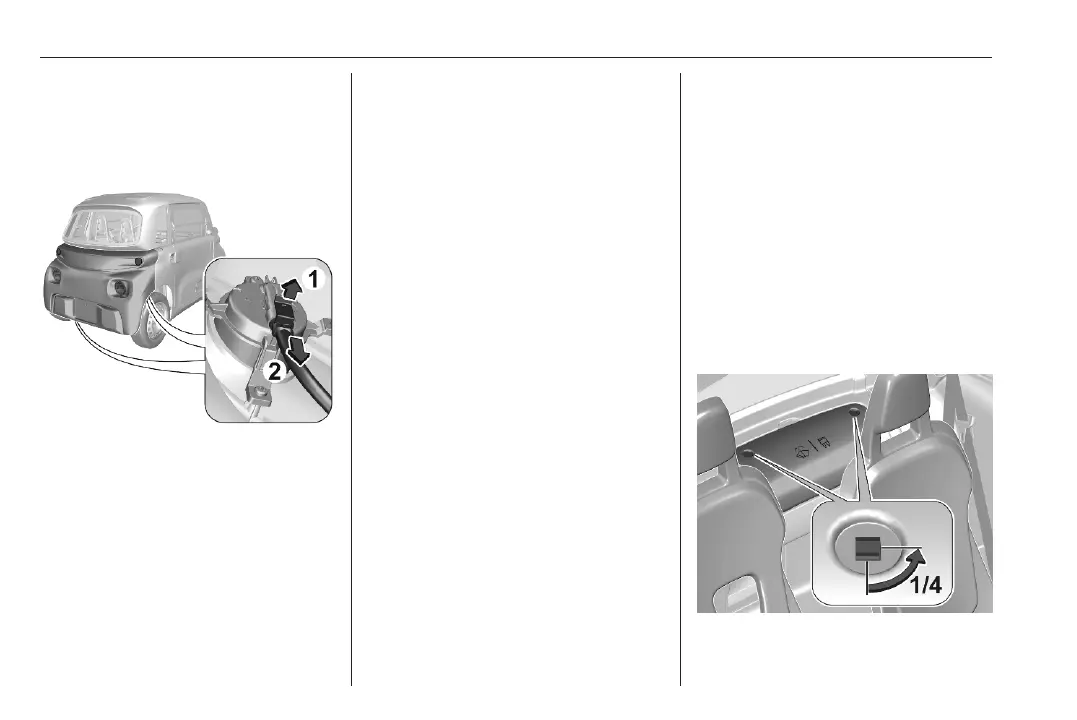

7. Disconnect the turn light wiring
looms.
Refitting the front or rear bumper
1. Bring the bumper close to the
frame.
2. Connect the turn light wiring
looms.
3. Place the bumper in position and
push the bumper horizontally until
the attachment points clip into
place.
4. Screw the two upper side fixing
screws into the flaps.
5. Screw the two lower side fixing
screws into the wheel arches.
6. Screw the two lower fixing screws
into the frame.
7. Clip the two upper access flaps to
the wings.
When the rear bumper is refitted,
replace the number plate light.
Removing and refitting the
number plate light
1. Lie down behind the vehicle in the
middle of the rear bumper.
2. Pass an arm behind the bumper
to reach the light above the foam
shock absorber.
3. Pinch the fixing clip holding the
light.
4. Push the light down while holding
the fixing clip.
5. Disconnect the light from its wiring
loom.
6. Leave the wiring loom dangling
through the bumper.
To refit the number plate light,
reconnect the light to the suspended
wiring loom and replace the light into
its housing by pressing it until it clips
into place.
Washer fluid
The washer fluid tank is located
behind the seats.
Turn both fixing screws a quarter turn
and remove the access cover.
