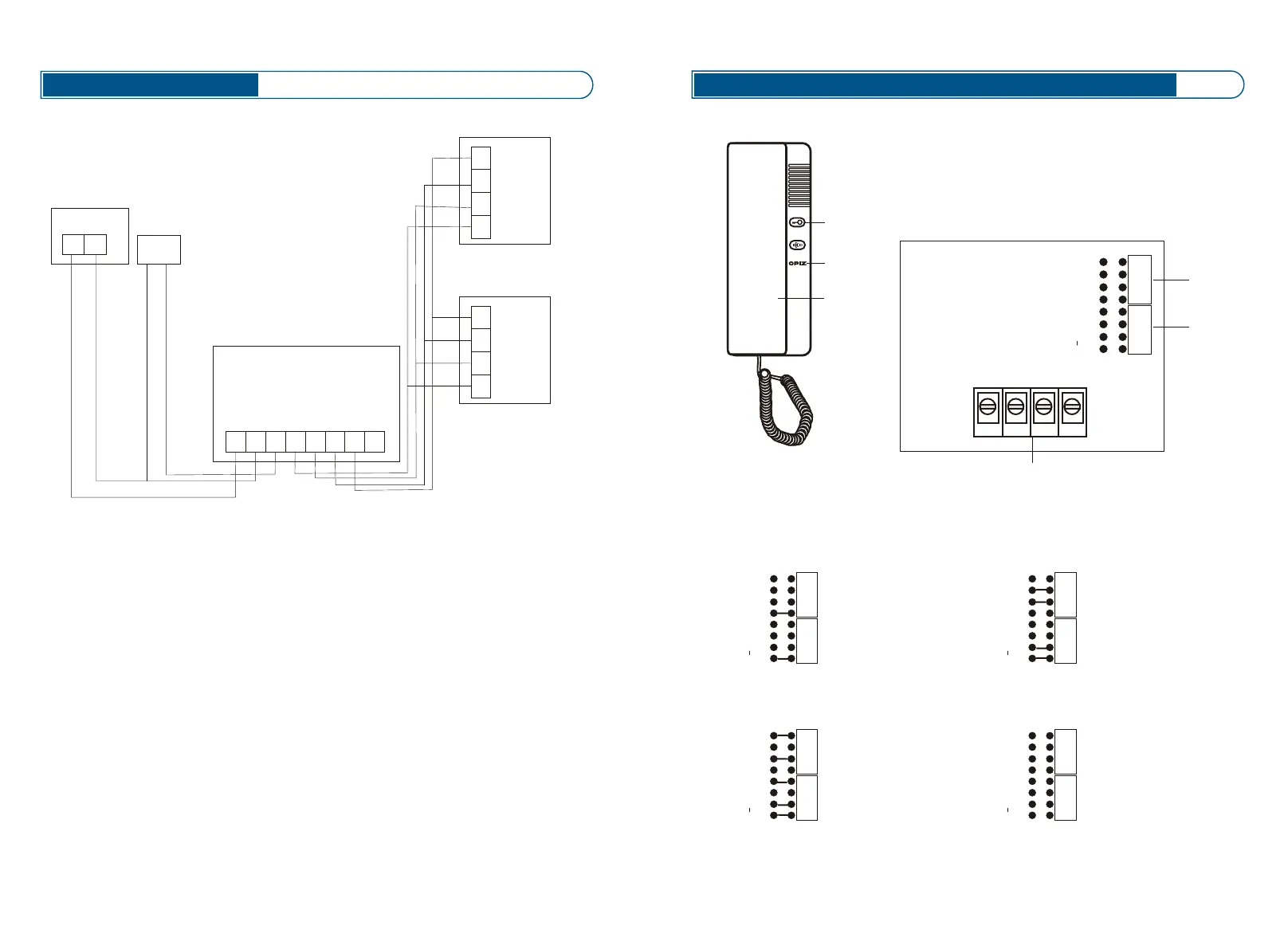

Ⅴ. PROGRAMMING
+
-
L K
1 2 3 4
V
+
-
4
3
2
1
4
3
2
1
Power supply
E-Lock
Door bell
Door phone
Door phone
The product configuration
Door station
8P plugs line, mounting screws, if take charge function will increase
the management card 2 pieces, remote control one
Monitor
Door station power supply 12V 1A
Product cable instructions
Door station to monitor distance with 50 meters use RVV4 * 0.5 square mm of line,
more than 50 meters with RVV4 * 0.75squares mm
Branch line within 20 meters use RVV4 * 0.2 square mm of line, more than 20
meters with RVV4 * 0.3squares mm
Door station to power supply use RVV2 * 0.75 square mm of line
Door station to electronic within 5 meters use RVV2 * 1.0 square mm of line
1 2 3 4
Room
nu
mb
e
r
8
2 41
8
2 41
- 4 -
Ⅵ.FOUR WIREDS INDOOR PHONE EXPLANATIONS
⑵
⑶
⑴
① Unlock button
② LOGO
③ Receiver
⑴ System connection port. connects with the outdoor station 1234 line on corresponding.
⑵ Floor code port, all the pins are corresponding number add together is the floor number.
⑶ Room code port, all the pins are corresponding number add together is the floor number.
Floor
Such as:
This room number is 101 This room number is 306
This room number is 1110 This room number is 1616
8
2 41
8
2 41
Room
nu
mb
e
r
Floor
8
2 41
8
2 41
Room
nu
mb
er
Floor
8
2 41
8
2 41
Roo
m
n
um
ber
Floor
8
2 41
8
2 41
R
o
o
m
n
um
ber
Floor
①
②
③
