High-Pressure Air Assist Nozzle Accessory Usage
The High-Pressure Air Assist Nozzle (HP Nozzle) can be installed on the XT-50 laser
head by simply sliding the nozzle cap on the lens sleeve and tightening the nozzle’s
position with the 4 provided screws.
For XT-50, the nozzle should not be placed higher than the oblong line on the XT-50’s
lens sleeve. On the other side, the HP Nozzle should ideally be placed approximately
2-3 mm above the material being processed.

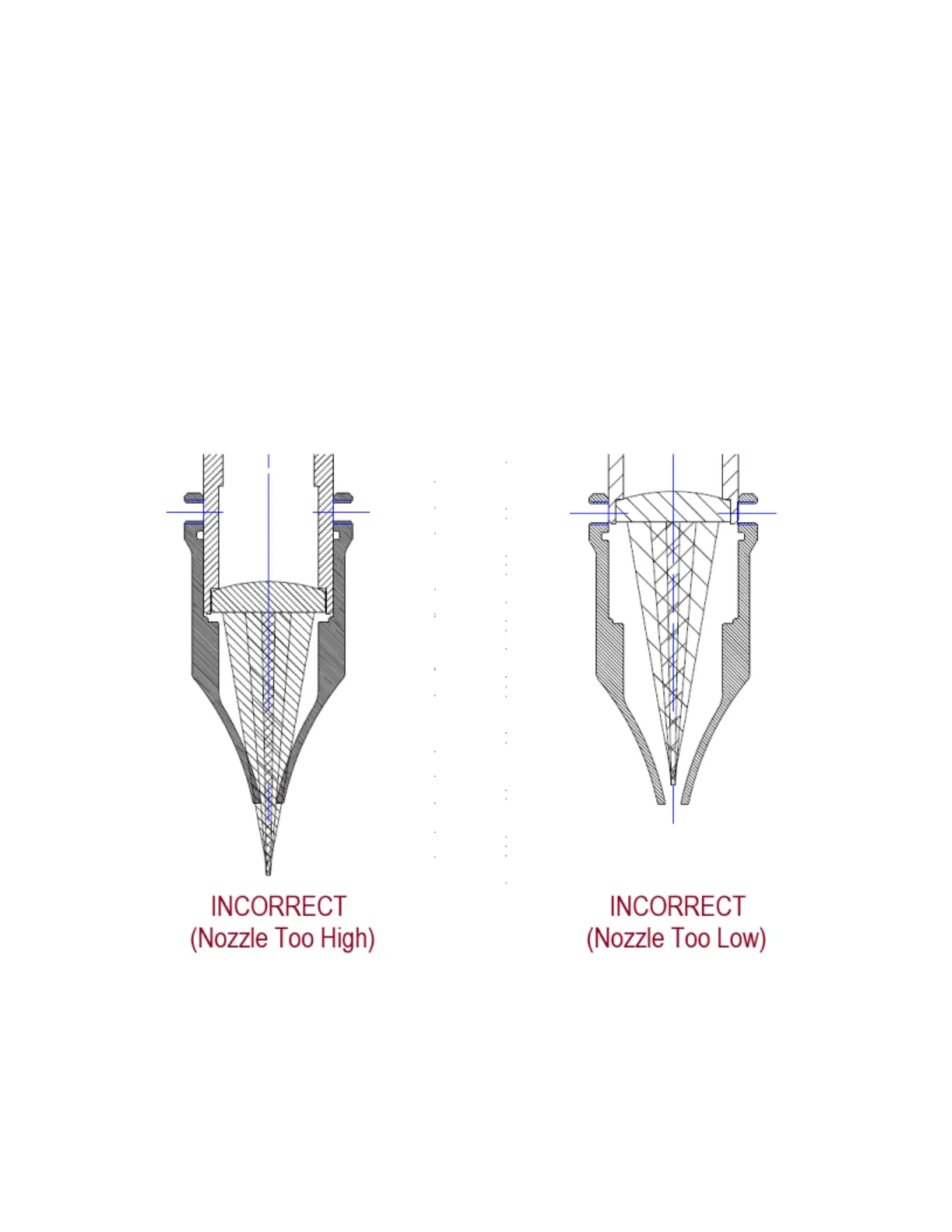

Incorrect High-Pressure Air Assist Nozzle Installation Symptoms
