Optech Basic Series - Optional Accessories

5c
5d
5b
5f
5e
5a

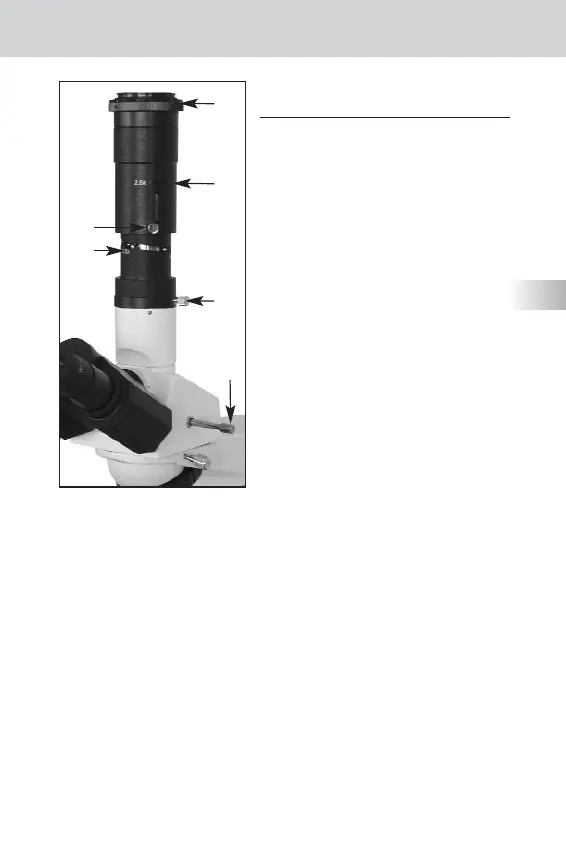

Figure 5
MICRO-PHOTOGRAPHIC REFLEX
CAMERA DEVICE MODEL MF (ref. fig. 5).
Equipment:
T2-ring (5f); intermediate optic 2,5x-4x (5e);
WF 10x eyepiece with photographic graticule;
reflex camera body 24x36 (not supplied - available
on request).
a) Installation:
1) Having loosened the locking screw
(5b - ref. fig. 5) of the camera tube in the
trinocular head (1 - ref. fig. 1) and removed
the protective cover, mount the tube
containing the 2,5x-4x intermediate optic
(5e - ref. fig. 5).Tighten the locking screw
again (5b - ref. fig. 5).
2) Screw fit the T2 ring (5f - rif. fig. 5) to the
intermediate optic (5e - ref.fig.5), then lock
the reflex camera body onto the ring.
b) Preparation of the
micro-photographic device:
1) Substitute an eyepiece (13 - ref. fig. 1)
in the head with the WF 10x eyepiece with
photographic graticule.
2) Focus the photographic graticule using the
dioptric compensation ring of the same eyepiece.
ENGLISH 27
OPTIONAL ACCESSORIES
c) How to select the photographic optic 2,5x or 4x:
1) To get the 4x magnification, loosen the external screw (5d - ref. fig. 5) and reach
the 4x position. Lightly tighten the screw (5d - ref. fig. 5). Please check the lever
(5c - ref. fig. 1), positioned inside the photographic tube, is set to the 4x magnifying factor.
2) To get the 2,5x magnification, slide the lever (5c - ref. fig. 5), positioned inside the
photographic tube, to the 2,5x magnifying factor and lightly tighten the external
screw (5d - ref. fig. 5) on the 2,5x position.
d) How to take photos:
1) Place the specimen slide onto the stage (7 - ref. fig. 1) and, using the spring-arm
slide holder control knobs (10 - ref. fig. 1), search for the area to be photographed.
2) Focus on the specimen with high precision with the coarse/fine control knobs
(11 - ref. fig. 1).
3) Set the microscope illuminator to maximum intensity through the brightness
control (24 - ref. fig. 1).
4) Take the photo.
PLEASE NOTE:With prism slide knob (5a - ref. fig. 5) - equipped trinocular heads,
please remember to pull the slide knob outwards before taking the photo.
