OPTi 604/6848 - Step 4: Final Handlebar Assembly

Assembly Instructions
Step 4

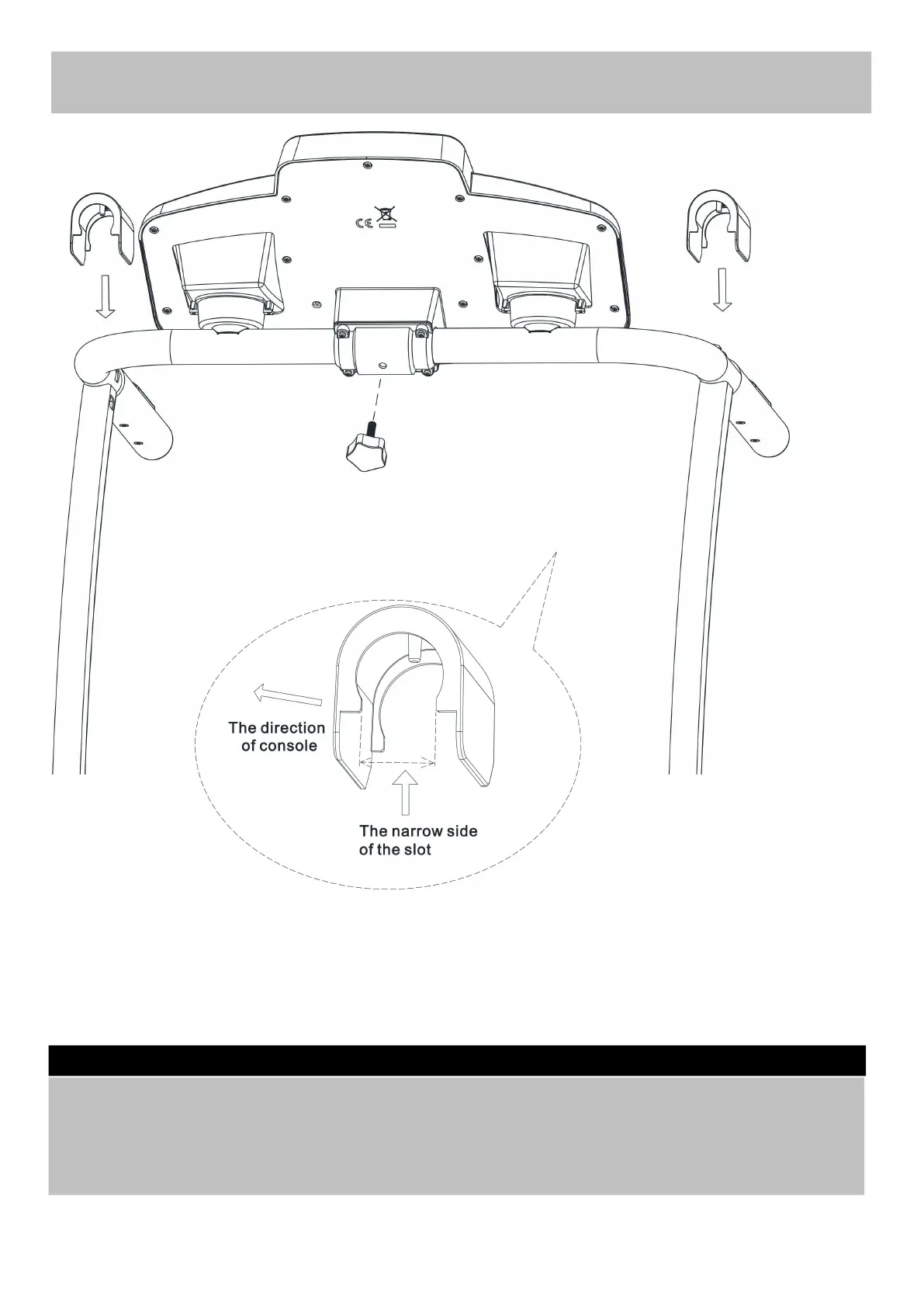

a. Fix the console to the handrail (1) with the Knob (31)
b. Attach the 2 Handle Cover (18) on the handlebars as shown in the diagram.
C.The narrow side of the slot points to the direction of console.
2
3
10
18
18
1
31
