Assembly and maintenance instruction recirculating ball screw
5. Dezember 2007 Page 25Recirculating ball screw assembly and maintenance instruction ; Version 2.0
© 2007
GB
£ Put the support of the Y-axis on the
spindle nut.
£ Fix the support to the spindle nut
using the hexagon socket screws.
Apply a securing mean before
screwing the hexagon socket
screws.
£ Clamp the fixture. Before clamping
the fixture, turn the cross table once
completely to the front and to the
back. Clamp the support to the front
position of the cross table.
£ When mounting the CNC kit you
should no longer use the clamping
lever to clamp the table since they
might possibly interfere when
traveling the axis. Use hexagon sok-
ket screws with counternuts instead.
£ Now fasten the hexagon socket
screws on the housing.
£ Now mount the remaining parts of
the CNC add-on kit (CNC conver-
sion instructions).

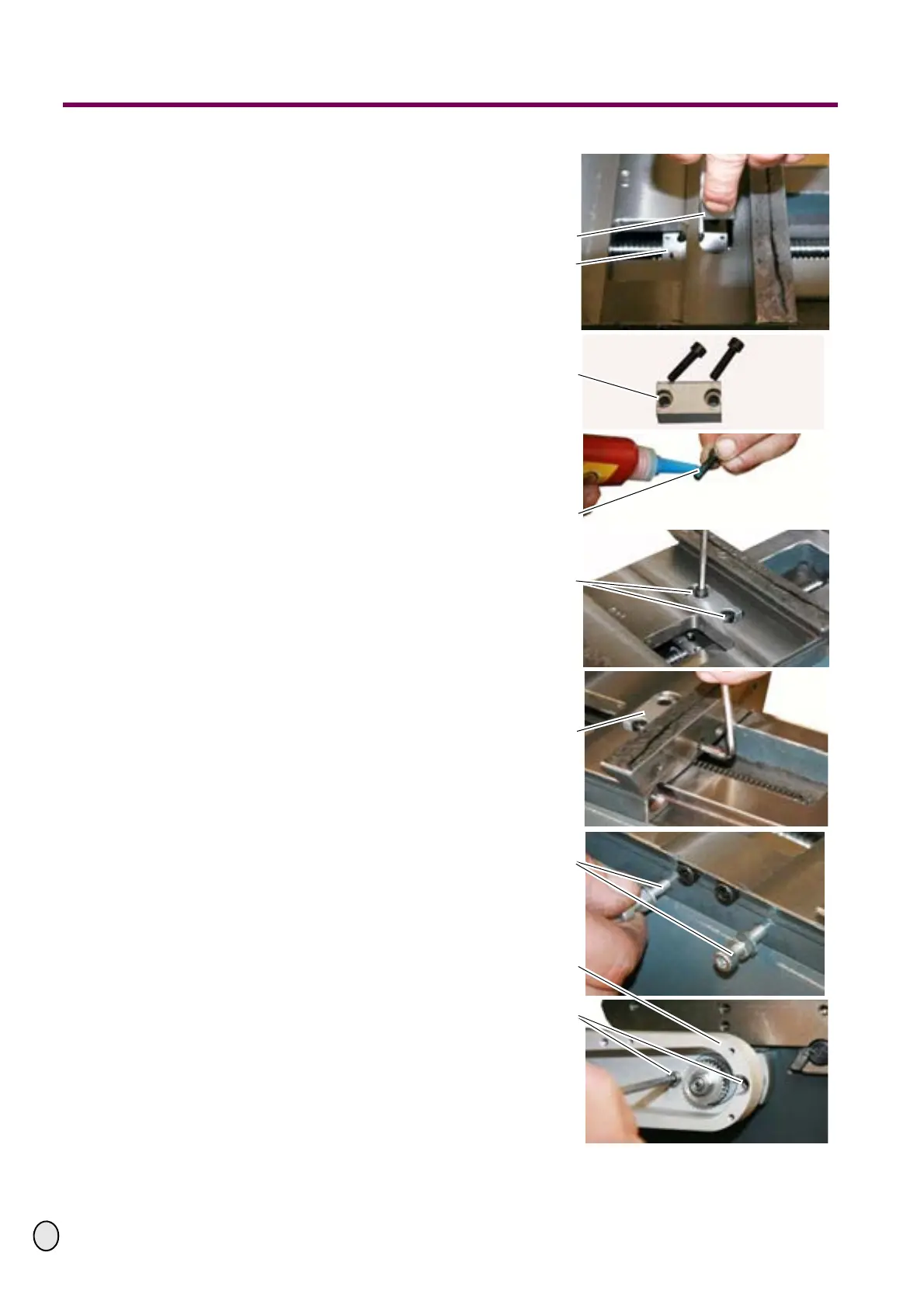

Fig.1-51: Assembly Y-axis
Support Y-axis
Spindle nut
Support Y-axis
Securing mean
Hexagon socket
screws
Support Y-axis
Hexagon socket
screws
Housing
Hexagon socket
screws
