Assembly and maintenance instruction recirculating ball screw
5. Dezember 2007 Page 37Recirculating ball screw assembly and maintenance instruction ; Version 2.0
© 2007
GB
£ Position the slide above the sup-
port. Fix the slide of the Z-axis using
the two hexagon sokket screws.
£ If required, adjust the distance of the
spindle and of the spindle nut using
the locking screws and in doing so
adjust the smooth running of the
spindle.
£ Fix the pillow block of the Z-axis
once again.
£ When assembling the CNC kit, you
should no longer use the clamping
levers for the table clamping, since
they possibly might interfere when
traveling the axis. Use hexagon sok-
ket screws with counternuts instead.

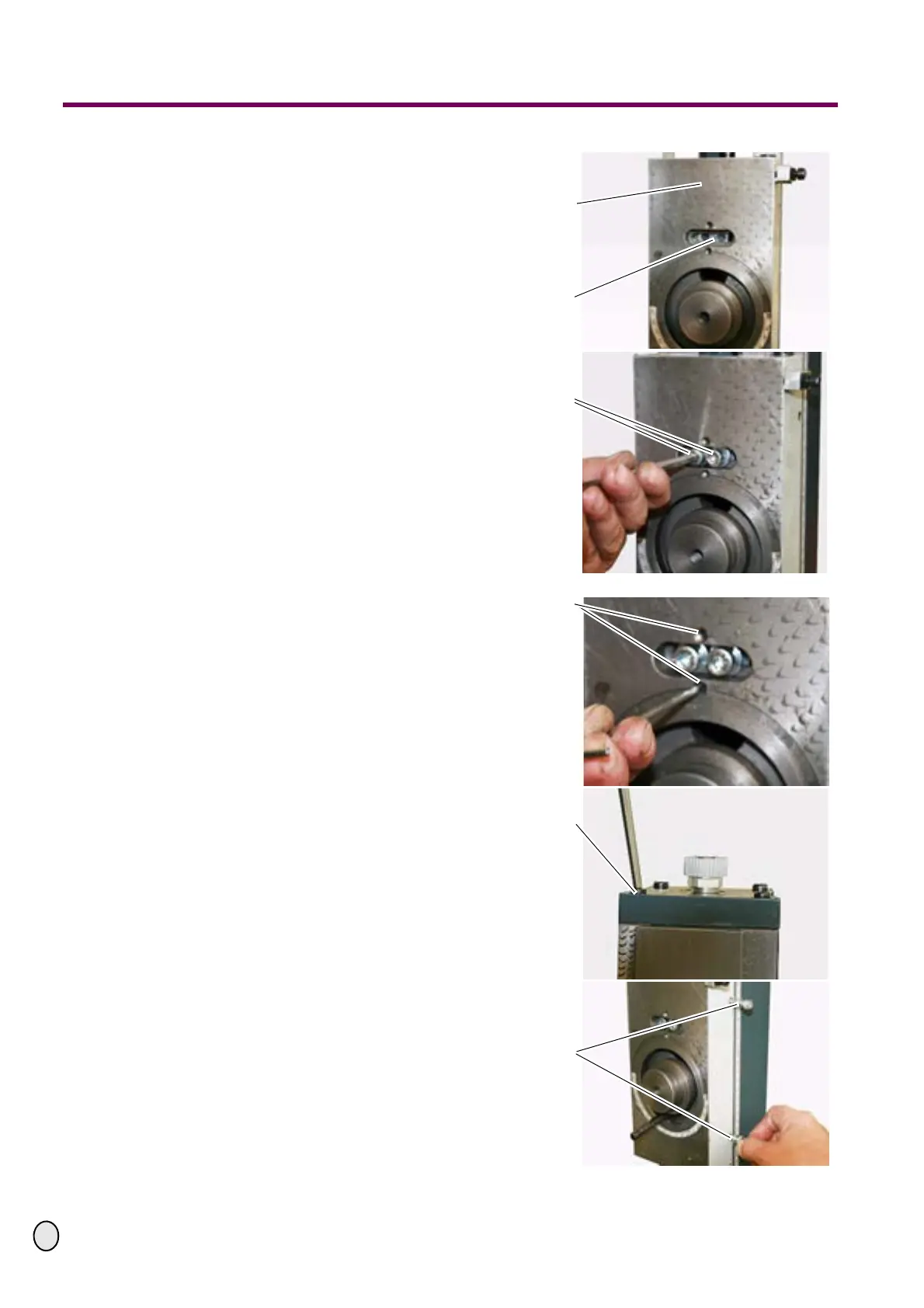

Fig.1-63: Assembly Z-axis
Slide Z-axis
Support
Hexagon socket
screws
Locking screw
Hexagon socket
screw
Hexagon socket
screws
