Assembly and maintenance instruction recirculating ball
OPTIMUM
MASCHINEN - GERMANY
5. Dezember 2007Page 38 Recirculating ball screw assembly and maintenance instruction ; Version 2.0
© 2007
GB
£ Assemble the housing of the Z-axis
using the fixing material.
£ Mount the attached covering of the
Z-axis using hexagon socket
screws.
£ Fix or clamp the drilling-milling head
using the hexagon socket screw and
the hexagon nut.
CAUTION!
Risk of crushing when assembling
the milling head. The drilling-milling
head is weighing about 25 kg!

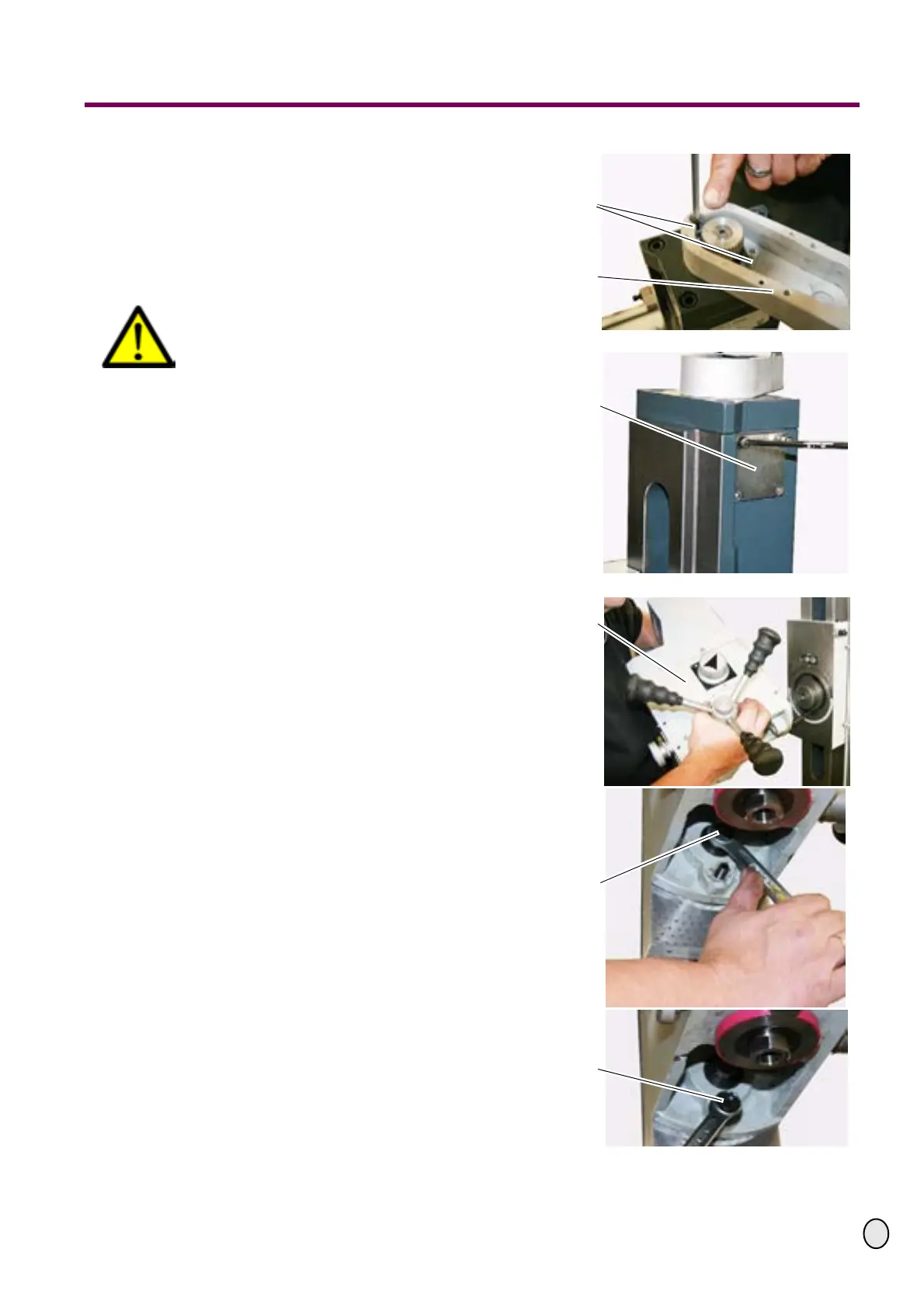

Fig.1-64: Assembly drilling-milling head
Hexagon socket
screws
Housing Z-axis
Covering Z-axis
Drilling-milling head
Hexagon socket
screw
Hexagon nut
