Optimum TV - Samsung Model Setup; Connect Digital Cable Box; Connect Digital Cable Box to TV

Back of
HDTV
IN
OUT
IN
OUT
IN
OUT
Coaxial cable
VHF/UHF
S VIDEO
VIDEO
L AUDIO
R AUDIO
VIDEO IN
13
VHF/UHF
S VIDEO
VIDEO
L AUDIO
R AUDIO
VIDEO IN
13
VHF/UHF
S VIDEO
VIDEO
L AUDIO
R AUDIO
VIDEO IN
13

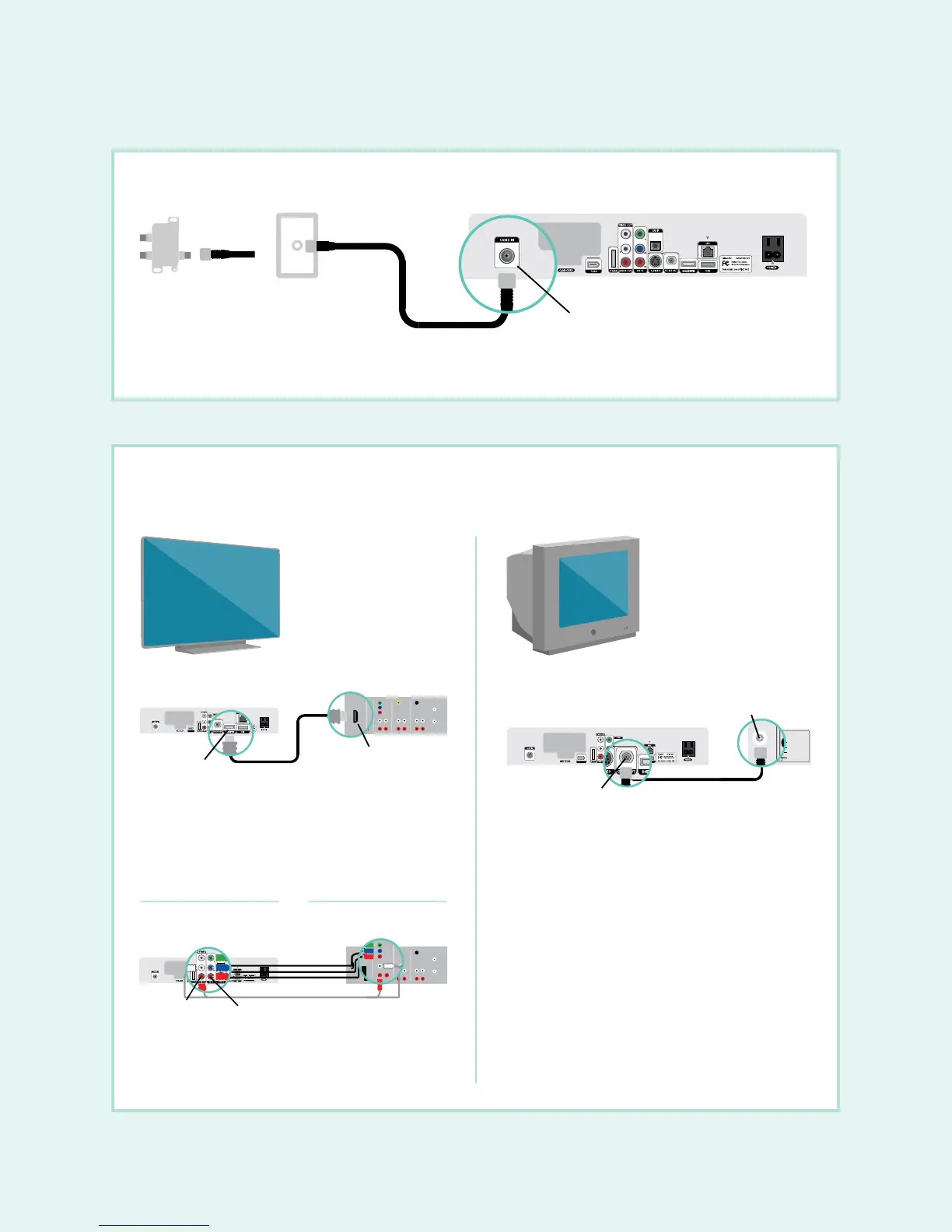

• Connect the coaxial cable from the cable splitter or wall to the “CABLE IN” port on the back of the digital
cable box/HD digital cable box.
Samsung Model
1
3
2
Cable splitter or Wall outlet
Back of digital cable box
Cable in
Connect the digital cable box to the TV
Either HDMI or component cables can be used for HDTV.
Using an HDMI cable to connect your HDTV:
• Connect it from the HDMI port on the back of the
digital cable box to the back of the HDTV.
DO NOT connect any additional cables.
Connect your SDTV:
• Connect one end of the coaxial cable to the
“CH 3/4 out” port on the digital cable box and the
other end to the “VHF/UHF” or “antenna in” port
on your TV.
DO NOT connect any additional cables.
For the best picture quality, use the wrench included to
make sure the cable connections are secure.
HDTV SDTV
Component ports
Component
cables
Audio ports
Plug the component and audio cables into specified colors.
Back of digital cable box
Back of HDTV
OR
Back of digital cable box
VHF/UHF
or
antenna in
Back of
SDTV
Coaxial cable
CH 3/4 out
HDMI port
HDMI port
HDMI cable
Connect the digital cable box
Using component cables to connect your HDTV:
• Connect them from the HD digital cable box to the
back of the HDTV according to the specified colors.
