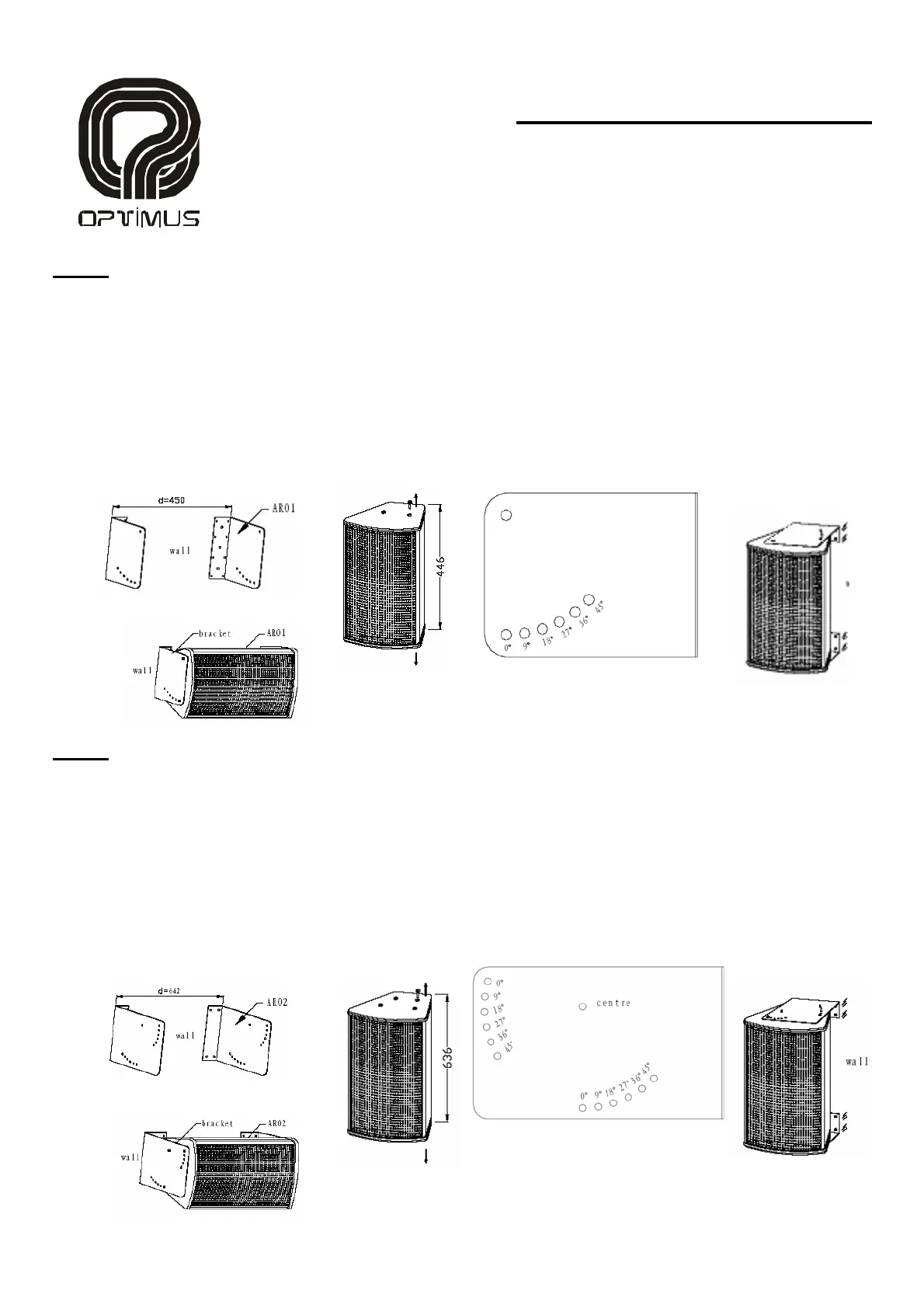

INSTRUCTION MANUAL
S-077S1 / S2
WALL MOUNTING KIT
AR SERIES
AR01
1. Place the brackets on the wall where AR-01 speaker will be suspended. Mark and drill 4 screw holes
on the wall. Install 4 screws in order to fix the brackets on the wall. Figure 1.
2. Dismantle the 2 screws of the speaker’s top side and the 2 screws of the bottom side, as figure 2.
3. Install the speaker between the brackets. Adjust installation angle according to desired orientation,
as showed in figure 3. Fasten the speaker to the brackets by means of 2 screws Ø11x50 in each
side panel.
AR02
1. Place the brackets on the wall where AR-02 speaker will be suspended. Mark and drill 8 screw holes
on the wall. Install 8 screws in order to fix the brackets on the wall. Figure 6.
2. Dismantle the 4 screws of the speaker’s top side and the 4 stands and 4 screws of the bottom side,
as figure 7.
3. Install the speaker between the brackets. Adjust installation angle according to desired orientation,
as showed in figure 8. Fasten the speaker to the brackets by means of 3 screws Ø11x50 in each
side panel.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 10
Figure 7
Figure 8
Figure 9
