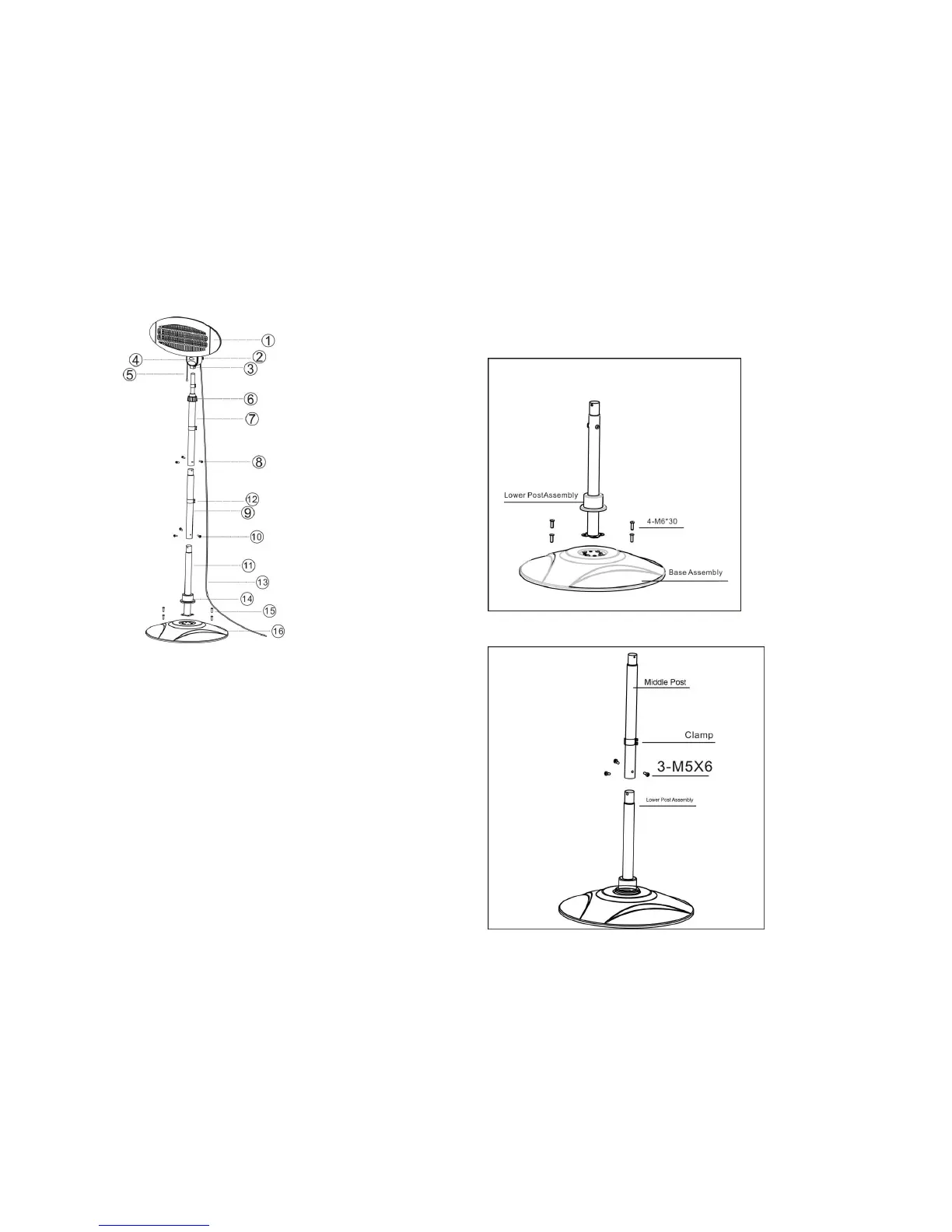

Parts List:
Parts Description:
1. Heating Element Assembly
2. Knob
3. Body
4. Position Indication Plate
5. Pull Switch
6. Tube Cover
7. Upper Post Assembly
8. 3 -M5 X 6 Screw
9. Middle Post
10. 3-M5 X 6 Screw
11. Lower Post Assembly
12. Clamp
13. Power Cord
14. Base Cover
15. 4-M6 X 30 Screw
16. Base Assembly
Before installing your appliance, you must disconnect the unit with the electrical power
supply.
IMPORTANT! – Remove any packaging before use, but retain safety instructions and
store them with this product.
ASSEMBLY INSTRUCTIONS:
Assembly:
1. Fix the bottom tube to the base by 4pcs M6*30mm screws.
2. Screw out 3pcs M5*6mm screw in the bottom tube and put the cord support to the middle
tube before fix the middle tube.
