Optoma DW339 - Input;Output Connections

9
English
Introduction
AUDIO-IN
AUDIO OUT
VGA1-IN / YPbPr
RS-232C
VGA-OUT
VGA2-IN / YPbPr
HDMI
S-VIDEO
VIDEO
USB

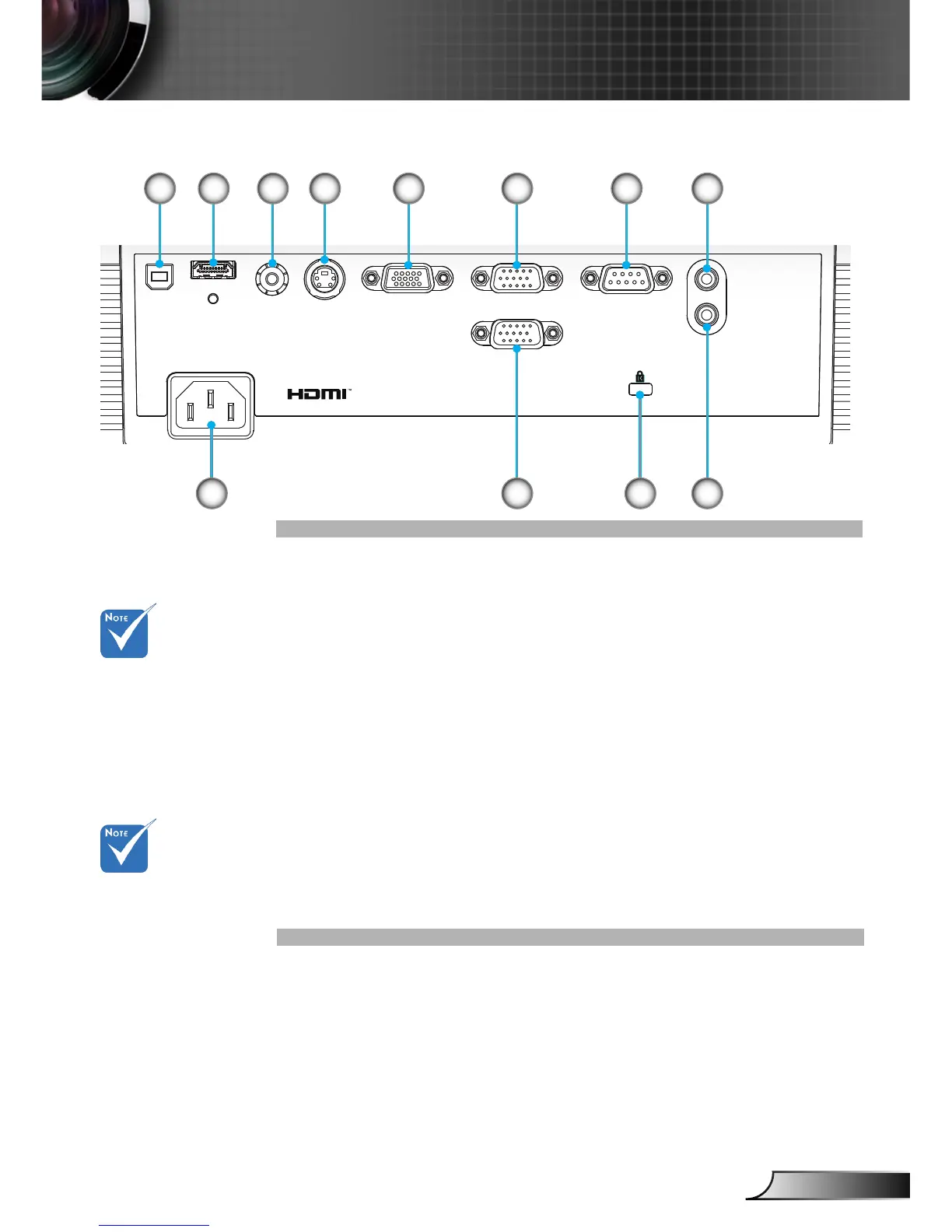

Input/Output Connections
Monitor loop
through only sup-
port in VGA1-In/
YPbPr.
1. USB Connector (Connect to PC for Remote Mouse func-
tion)
2. HDMI Connector
3. Composite Video Input Connector
4. S-Video Input Connector
5. VGA-Out Connector (Monitor Loop-through Output)
6. VGA1-In/YPbPr Connector
(PC Analog Signal/Component Video Input/HDTV/YPbPr)
7. RS-232 Connector (9-pin DIN Type)
8. Audio Input connector (3.5mm mini jack)
9. Audio Output Connector (3.5mm Mini Jack)
10. Kensington
TM
Lock Port
11. VGA2-In/YPbPr Connector
(PC Analog Signal/Component Video Input/HDTV/YPbPr)
12. Power Socket
542
12
1
10
3 8
11
6 7
9
The interface
is subject to
model’s speci-
cations.
