EW536 SPECIFICATIONS
Native Resolution WXGA 1280 x 800
Compressed Resolution up to UXGA (1600 x 1200)
Brightness 2800/2300 Lumens (BRIGHT/STD mode)
Contrast 3000.1
Noise Level 28dB
Lamp Life** 4000/3000 (STD/BRIGHT mode)
Projection Lens F/2.5 ~ 2.67, f=21.86 ~ 24.0mm, 1.1x Manual Zoom
Throw Ratio 1.55 - 1.7:1 (Projection Distance:Image Width)
Projection Distance 1.2 - 12m
Image Size 0.83 - 9.13m (32.77” - 359.44”) Diagonal 16:10
Display Technology Single 0.65” WXGA DC3 DMD chip DLP
®
Technology
by Texas Instruments
Weight / Dimensions (W x D x H) 2.3 kg / 286 x 192 x 84mm
Remote Control Full function remote with direct source selecting
INPUTS HDMI (HDCP) - audio supported (DVI-D via adaptor)
15 Pin D-Sub VGA (SCART & Component via adaptor)
S-Video 4 Pin Mini Din
Composite RCA
3.5mm Audio Mini Jack
CONTROL RS232 3 Pin Mini DIN
OUTPUTS 15 Pin D-Sub VGA (monitor loop-through)
3.5mm Audio Mini Jack
Audio 1 x 2W Speaker
Aspect Ratio 16:10 Native, 4:3 & 16:9 Compatible
Keystone Correction ± 40˚ Vertical
On Screen Display 18 Languages: English, German, French, Italian, Spanish,
Portuguese, Polish, Dutch, Russian, Swedish, Greek,
Norwegian, Danish, Hungarian, Czech, Turkish, Farsi & Arabic
Video Compatibility PAL SECAM 576i/p, NTSC 480i/p, HD 720p/1080i/1080p
Uniformity 85%
Displayable Colours 16.7 Million
Horizontal Scan Rate 15.3 – 91.1kHz
Vertical Scan Rate 24 – 120Hz
Power Supply 100 - 240V, 50 - 60Hz
Power Consumption 233W BRIGHT mode < 1W Standby mode
207W STD mode < 1W Standby mode
Operating Conditions Operating: 5 - 35˚C, 85% Humidity (Max),
3000m Altitude (Max)
Security One Kensington Lock Port, Password Protection
Standard Accessories Lens Cover, AC Power Cord, VGA Cable, Carry Bag, Full
Function Remote, Batteries x 2, Quick Start Guide, CD
User Manual, Warranty, WEEE Card
RoHS Compliant
Lamp Warranty 6 months or 1000 hours - whichever comes sooner
Warranty Warranty may vary by country. Please see
www.optomaeurope.com or ask your local
supplier for details
Colour Guarantee* 5 Years
3D Support 120Hz frame sequential 3D for resolutions up to 720P.
60Hz field sequential 3D for resolutions up to 480i
3D Viewing Requires Optoma DLP
®
Link™ active shutter glasses
– sold separately
Optoma Europe Ltd.
42 Caxton Way, Watford Business Park, Watford, Hertfordshire, UK. WD18 8QZ
www.optoma.co.uk
*Optoma guarantees that in normal use, Optoma DLP® colour quality will be indistinguishable from when new. Exclusions: (a) Guarantee is voided if the projector is subject to damage through misuse. (b) Guarantee may be void in industrial or commercial
entertainment environments where dust or smoke is excessive (c) Guarantee will not apply if lamp brightness is below 50% due to wear or if the projector is not working due to other faults. (d) Over time worn lamps within all projector types will show a slight colour
variance. **Typical lamp life achieved through testing. Will vary according to operational use and environment conditions. Copyright © 2012, Optoma Europe Ltd. All other product names and company names used herein are for identifications purposes only and
may be trademarks or registered trademarks of their respective owners. Errors and omissions excepted, all specifications are subject to change without notice. DLP
®
, BrilliantColor™ and the DLP logo are registered trademarks of Texas Instruments. All images of
products are for representation purposes only. Whilst every care is taken to provide accurate images of our products, actual products may differ slightly. Some product images may have been digitally altered by us to add an Optoma logo to the front panel. Optoma
reserves the right to amend or alter actual product or product images without notice. Some images may be simulated.

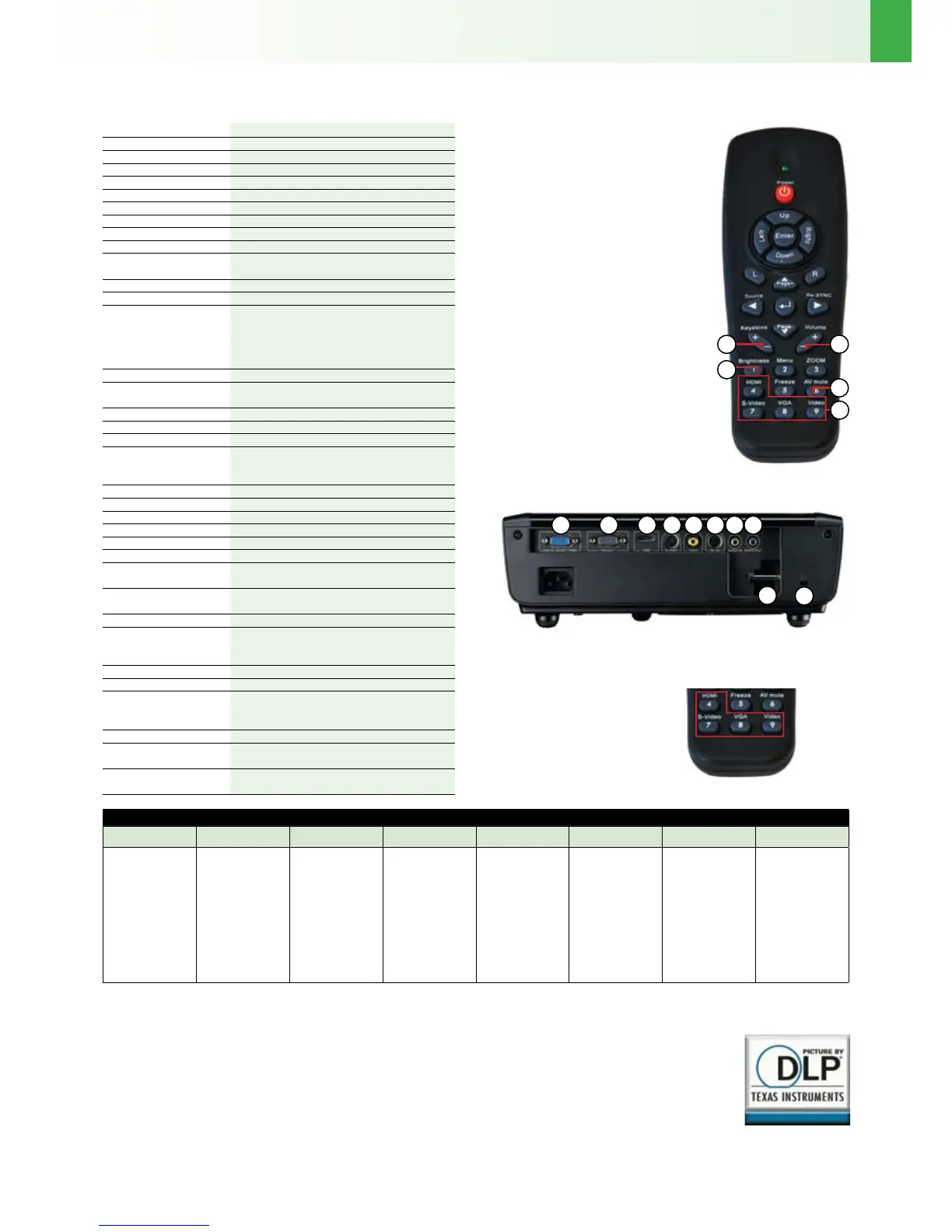

EW536
EW536 Remote Control
1 Vertical Keystone Correction
2 Volume Control
3 Brightness Adjustment
4 AV Mute
5 Direct Input Source Selection
EW536 Connections
6 VGA In - SCART & Component
7 VGA Out
8 HDMI (audio supported)
9 S-Video
10 Composite Video
11 RS232 - 3 Pin
12 Audio In
13 Audio Out
14 Security Bar
15 Kensington™ Lock
EASY TO USE REMOTE CONTROL
1
2
3
4
5
Exceptional Connectivity/ Multiple Terminals
6 8 119 10
14
7
Easy to use remote
with buttons to
change the input
sources
15
EW536 Projection Distance 1.2 - 12m (16:10 Aspect Ratio)
Projection Distance (m)
Max. Horizontal
Image Size (m)
Min. Horizontal
Image Size (m)
Max. Vertical Image Size (m) Min. Vertical Image Size (m) Max Diagonal Image Size (m)
Max Diagonal Image
Size (inch)
Max. Image Offset (m)
1.20
2.00
2.50
3.00
4.00
5.00
6.00
7.00
8.00
9.00
10.00
11.00
12.00
0.77
1.29
1.61
1.94
2.58
3.23
3.87
4.52
5.16
5.81
6.45
7.10
7.74
0.71
1.18
1.47
1.76
2.35
2.94
3.53
4.12
4.71
5.29
5.88
6.47
7.06
0.48
0.81
1.01
1.21
1.61
2.02
2.42
2.82
3.23
3.63
4.03
4.44
4.84
0.44
0.74
0.92
1.10
1.47
1.84
2.21
2.57
2.94
3.31
3.68
4.04
4.41
0.91
1.52
1.90
2.28
3.04
3.80
4.56
5.33
6.09
6.85
7.61
8.37
9.13
35.94
59.91
74.88
89.86
119.81
149.76
179.72
209.67
239.62
269.58
299.53
329.48
359.44
0.06
0.10
0.13
0.15
0.20
0.25
0.30
0.35
0.40
0.45
0.50
0.55
0.60
For guide purposes only
EW536 is capable of 4:3 and 16:9 aspect ratio projection. When projecting a 4:3/16:9 image the image sizes, screen height and offset information
will differ from the above.
12 13
V3 - 21/05/12
