-56 -
4.1.2 Industrial Process Interface (optional)
For use in industrial environment the industrial process interface with 500 V ACRMS isolation voltage between
PI and process is available (connection box with IP65, 5 m, 10 m or 20 m standard or high temperature cable
for camera connection, terminal for process integration). [►Appendix F Wiring diagrams PIF]
Pin assignment PIF cable (industrial process interface)

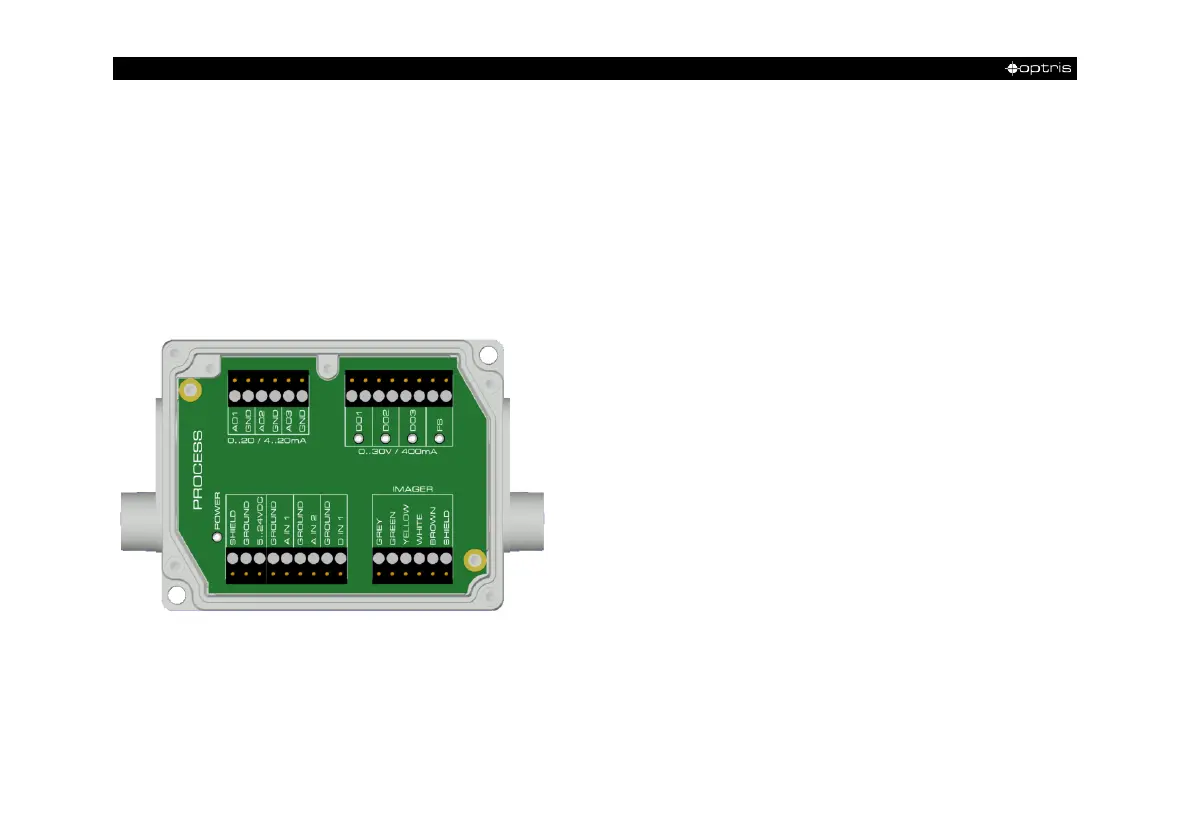

Figure 34: Connections of the industrial Process Interface
GREY
Interrupt
GREEN
SCL (I²C)
YELLOW
SDA (I²C)
WHITE
3.3 V
BROWN
GND
SHIELD
GND
