Opus WCU330 - System Configuration Options; Full Opus 300 System Setup

6
The WCU330 keypad can be used in two main configurations:
1. As part of a full Opus 300 system where it is plugged into an Opus hub (MCU300),
perhaps with other Opus accessories such as a video switching unit (VSU300) or local
input module (LIM300) fitted.
2. Where the keypad is plugged into the DZM amplifier as a sub-zone to the Opus 500
system or directly into an A-BUS
®
Ready/Opus Ready output of a compatible Opus (or
other brand) AV receiver or amplifier, no other accessories are possible other than the
required power supply and remote control/s.
The WCU330 has two modes of operation to support these configurations – Opus 300/
enhanced A-BUS
®
mode and Standard A-BUS
®
/Opus 500 mode. These modes are selected
by setting the Mode switch, located on the rear of the WCU330.
Note: Setting the Mode switch to the wrong setting can cause erroneous operation!
Full Opus 300 System

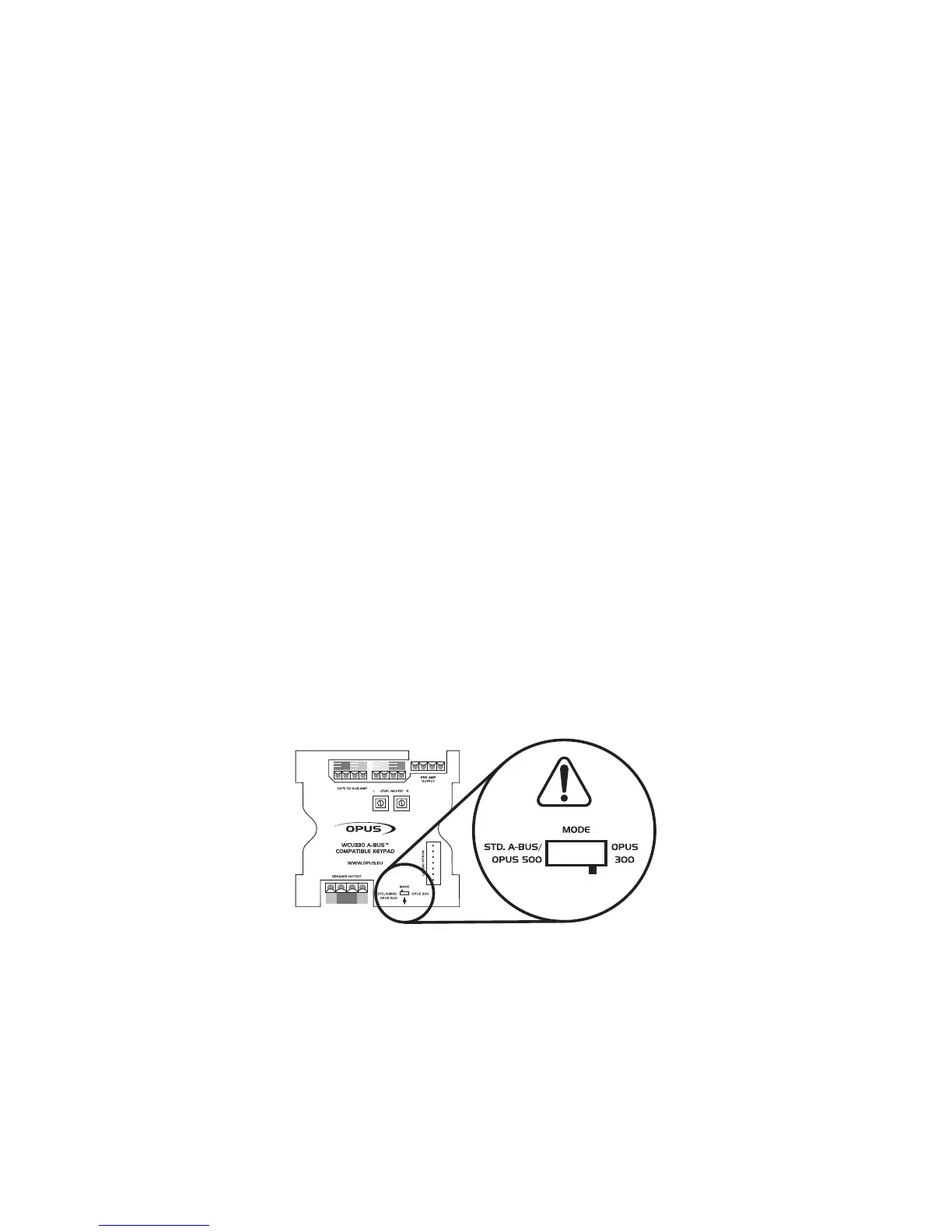

For use in a full Opus 300 System (see diagram opposite) the Mode Switch must be in the
‘Opus 300’ (enhanced A-BUS
®
) position as shown below:
System options
WCU330-EU rear
Please consult the MCU300 Opus Multi-Room Installation Guide for full details of the
various options available for the full Opus system.
