Oracle Audio Delphi Mk VI - Assembly and Initial Setup; ASSEMBLE THE SUB-CHASSIS; INSTALL THE TONE ARM AND PHONO CARTRIDGE

To Next Page

To Previous Page

Oracle Audio Technologies

ASSEMBLE THE SUB-CHASSIS

Important note : The platter is located below the acrylic base with the spindle pointing up.

Carefully lift the acrylic base and drive module assembly straight up so as not to damage the platter’s

spindle.

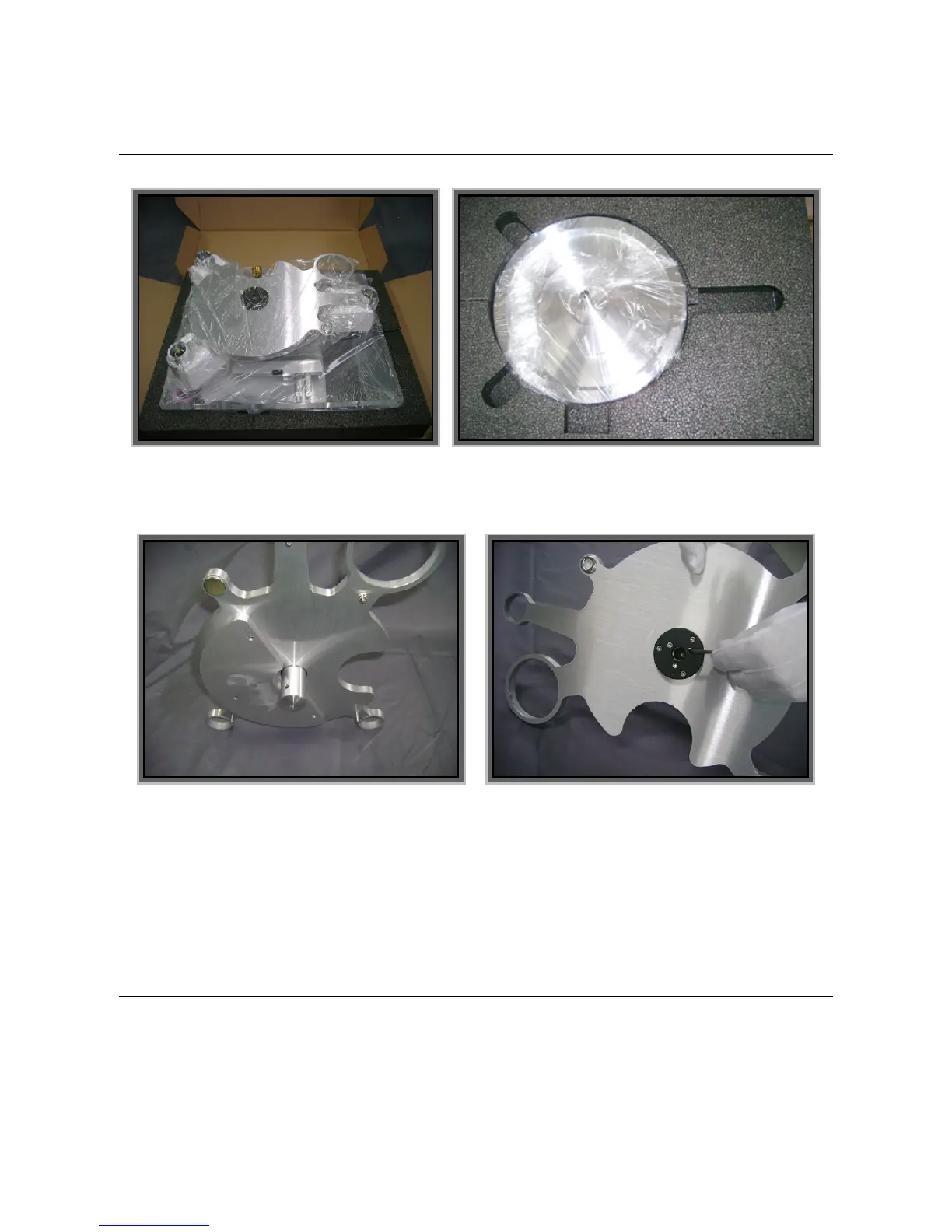

Assembling the spindle holder to the sub-chassis

• Locate the spindle holder assembly and remove the 3 mounting screws.

• Retrieve the 9/64

th“

allen key in the tool kit.

• Lift the sub-chassis straight up and install the spindle holder from under the sub-chassis (ground lug

side).

Note : DO NOT FILL THE SPINDLE HOLDER WITH OIL AT THIS TIME

INSTALL THE TONE ARM AND PHONO CARTRIDGE

Precaution – When performing anything near the tonearm and cartridge, we recommend not wearing

loose clothing, ties, sweaters or anything than can catch and damage the cartridge cantiliver.

Install the tone arm following the manufacturer’s recommendations.

Notes :

- At this time the MVSS plungers and wheel lock nuts will not be fitted to the sub-chassis.
