ORANGE Pi 2 - CSI Camera Connector Details

Orange Pi 2 User Manual Shenzhen Xunlong Software CO., Limited
www.orangepi.org www.xunlong.tv

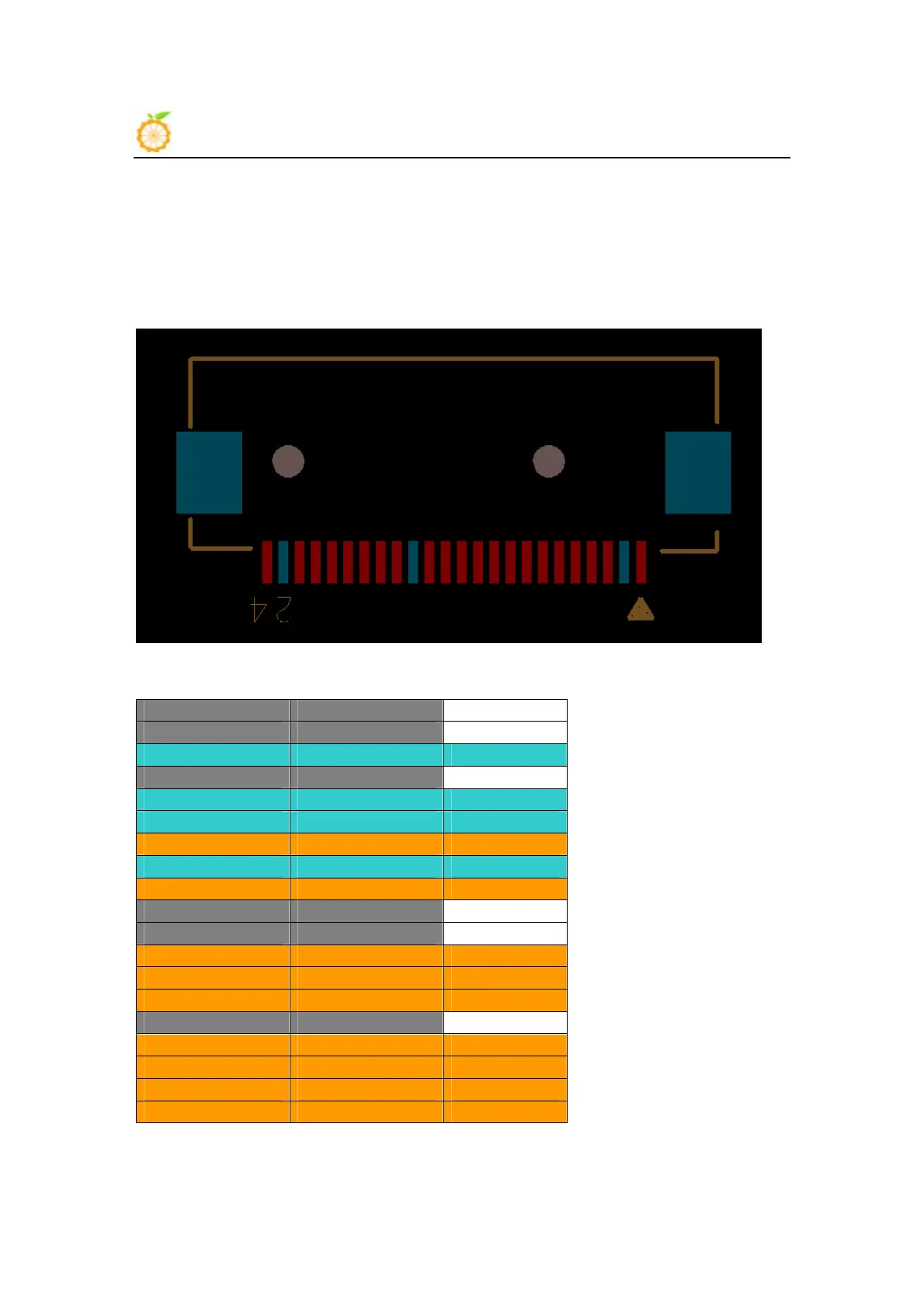

CSI Camera Connector specification:
CSI Camera Connector
The CSI Camera Connector is a 24-pin FPC connector which can connect external
camera module with proper
signal pin mappings. The pin definitions of the CSI interface are shown as below. This
is marked on the Orange Pi 2 board as “CON1″.
OrangePi 2-CSI
CON1-P01 NC
CON1-P02 GND
CON1-P03 TWI2-SDA PE13
CON1-P04 VCC-CSI
CON1-P05 TWI2-SCK PE12
CON1-P06 CSI-RESET# PE15
CON1-P07 CSI-VSYNC PE3
CON1-P08 CSI-STBY-EN PE15
CON1-P09 CSI-HSYNC PE2
CON1-P10 VDD1V8-CSI
CON1-P11 VCC-CSI
CON1-P12 CSI-D7 PE11
CON1-P13 CSI-MCLK PE1
CON1-P14 CSI-D6 PE10
CON1-P15 GND
CON1-P16 CSI-D5 PE9
CON1-P17 CSI-PCLK PE0
CON1-P18 CSI-D4 PE8
CON1-P19 CSI-D0 PE4
