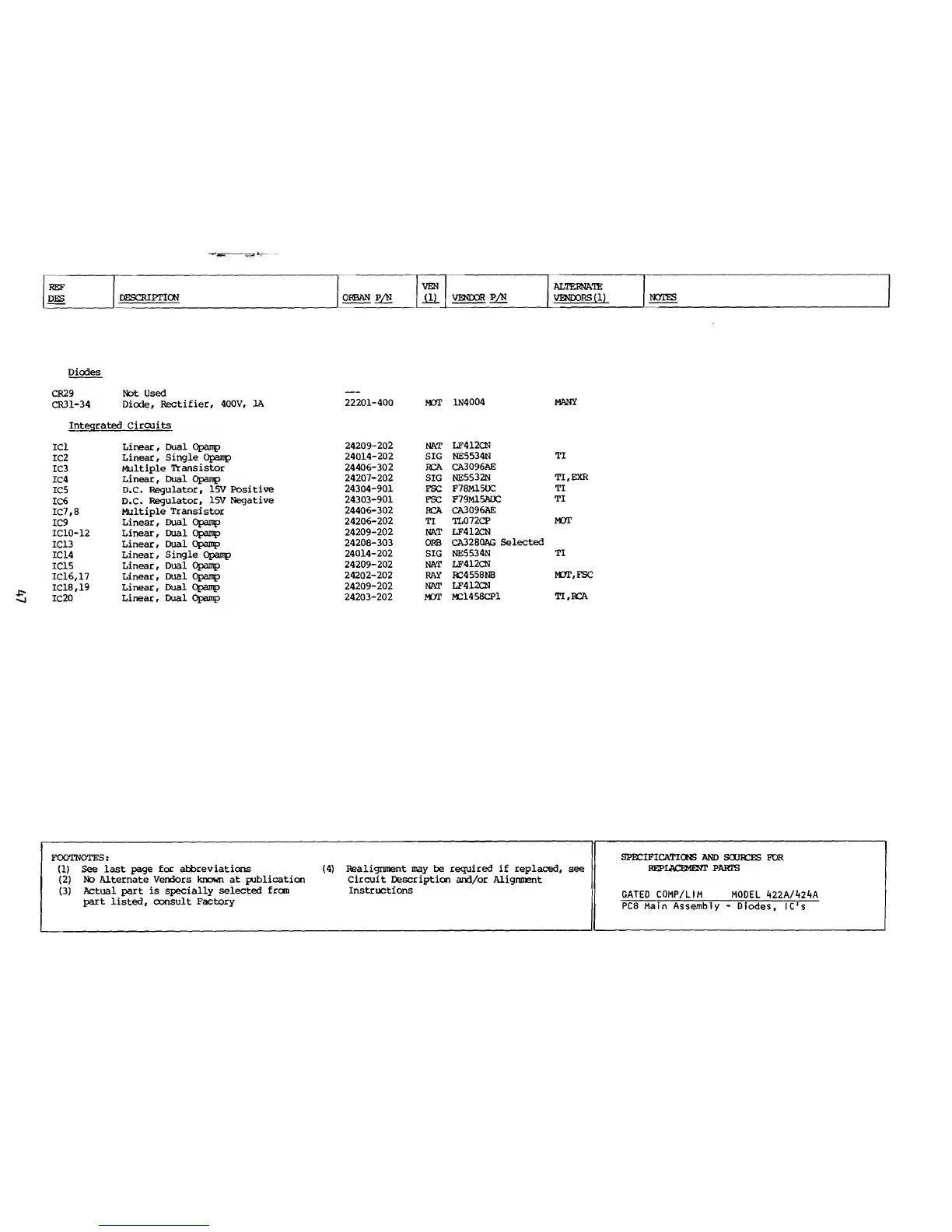

Orban 424A - Page 50

Diodes
CR29
Not
Used
—
CR31-34
Diode,
Rectifier,
400V, 1A
22201-400
MOT 1N4004
MANY
Intecirated Circuits
IC1 Linear,
Dual Opamp
24209-202
NAT
LF412CN
IC2
Linear,
Single
Opamp
24014-202 SIG NE5534N
TI
IC3
Multiple
Transistor
24406-302
BOA
CA3096AE
IC4
Linear, Dual
Opamp
24207-202 SIG
NE5532N
TI,EXR
ICS D.C.
Regulator, 15V Positive
24304-901
FSC
F78M15UC
TI
IC6
D.C.
Regulator, 15V
Negative
24303-901
FSC
F79M15AUC
TI
IC7,8
Multiple
Transistor
24406-302
RCA
CA3096AE
IC9
Linear,
Dual Opamp
24206-202 TI TL072CP
MOT
IC10-12 Linear,
Dual Opamp
24209-202 NAT LF412CN
IC13
Linear,
Dual
Opamp
24208-303 ORB CA3280AG
Selected
IC14
Linear,
Single
Opamp
24014-202
SIG
NE5534N
TI
IC15
Linear,
Dual
Opamp
24209-202 NAT
LF412CN
IC16,17 Linear,
Dual Opamp
24202-202
RAY
B04558NB
MDT,FSC
IC18 ,
19
Linear,
Dual
Opamp
24209-202 NAT
LF412CN
IC20 Linear,
Dual Opamp
24203-202 MOT M01458CP1
TI ,RCA
FOOTNOTES:
(1)
See last page
for abbreviations
(4)
Realignment may be required if
replaced,
see
(2)
No Alternate Vendors known at publication Circuit Description
and/or Alignment
(3)
Actual part is
specially selected
from Instructions
part
listed,
consult
Factory
SPECIFICATIONS
AND SOURCES FOR
REPLACEMENT PARTS
GATED
COMP/LIM
MODEL
A22AA24A
PCB
Main Assembly
-
Diodes, IC's
