TECHNICAL MANUAL24 | ORBEA ORBEA | 25
EN
BLUE PAPER MX JUNIOR · 2021

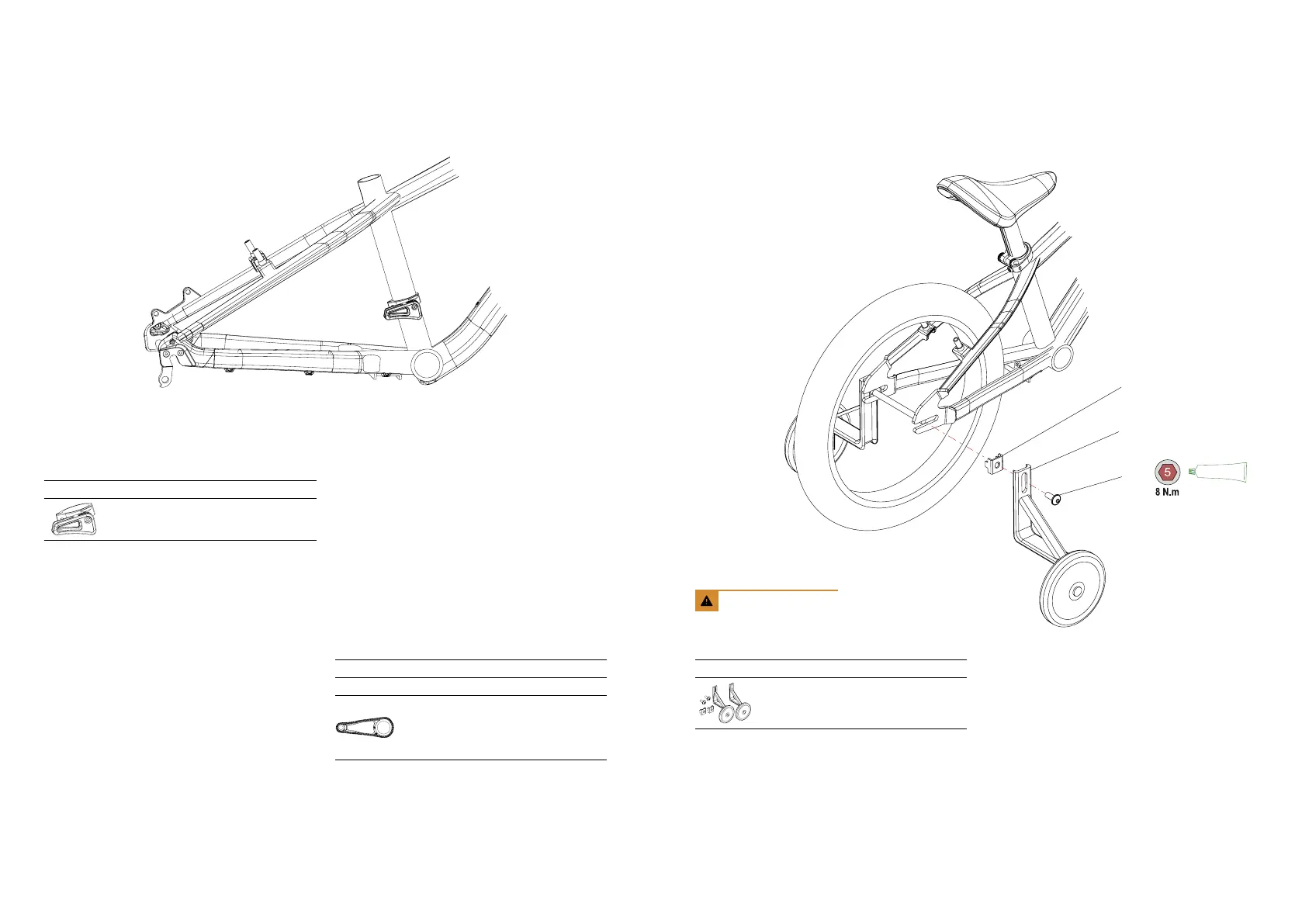

OC JUNIOR CHAINGUIDE. MX20, MX24 MX16 STABILISERS ASSEMBLY
HEBIE CHAINLOOPER CHAIN COVER. 71 LINKS. MX16
CHAINGUIDE-CHAIN COVER MX16 STABILISERS
24 ORBEA JUNIOR 1X CHAINGUIDE.
SEAT TUBE ASSEMBLY
Includes adapter for 31.8 and 34.9 seat tubes
ART Nº: X2620000 QTY.
24.1 CHAINGUIDE ORBEA JUNIOR 1X 1
24.2 SEAT TUBE CLAMP
24.3 ADAPTER 31.8-24.9
The Hebie ChainLooper chain cover is only available as a
replacement item due to breakage or warranty claim.
The chain cover can only be mounted on MX16 models
with a 32Tx18T gear ratio and a 71 links KMC chain. The
chaincover includes the chain.
Read the manufacturer´s documentation here:
https://www.chainlooper.de/pdf/2018_11_14%20Techni-
cal%20Information%20Chainlooper%200357F32.PDF
Watch the manufacturar´s assembly video here:
https://www.youtube.com/watch?v=FHYjMHRnCSQ
11 HEBIE CHAINLOOPER CHAIN COVER. 32X18T. 71
LINKS MX16
CONSULT ORBEA DEALER. QTY.
INCLUDES:
CHAINLOOPER 32x18T CHAIN COVER
BRACKET
CHAINLOOPER CHAIN COVER. 71 LINKS 1
KMX 1X CHAIN. 71 LINKS 1
Always follow the recommended
torque settings.
12 STABILISERS MX16
ART Nº: Y023 QTY.
STABILISER LEG+WHEEL 2
SAFETY BOLT M6x30 2
STABILISERS PLATE 2
12.3
12.1
12.2
GREASE
