Orbea MX JUNIOR 16 2021 - Digit Seatpost Assembly; Handlebar and Stem Integration

TECHNICAL MANUAL22 | ORBEA ORBEA | 23
EN
BLUE PAPER MX JUNIOR · 2021

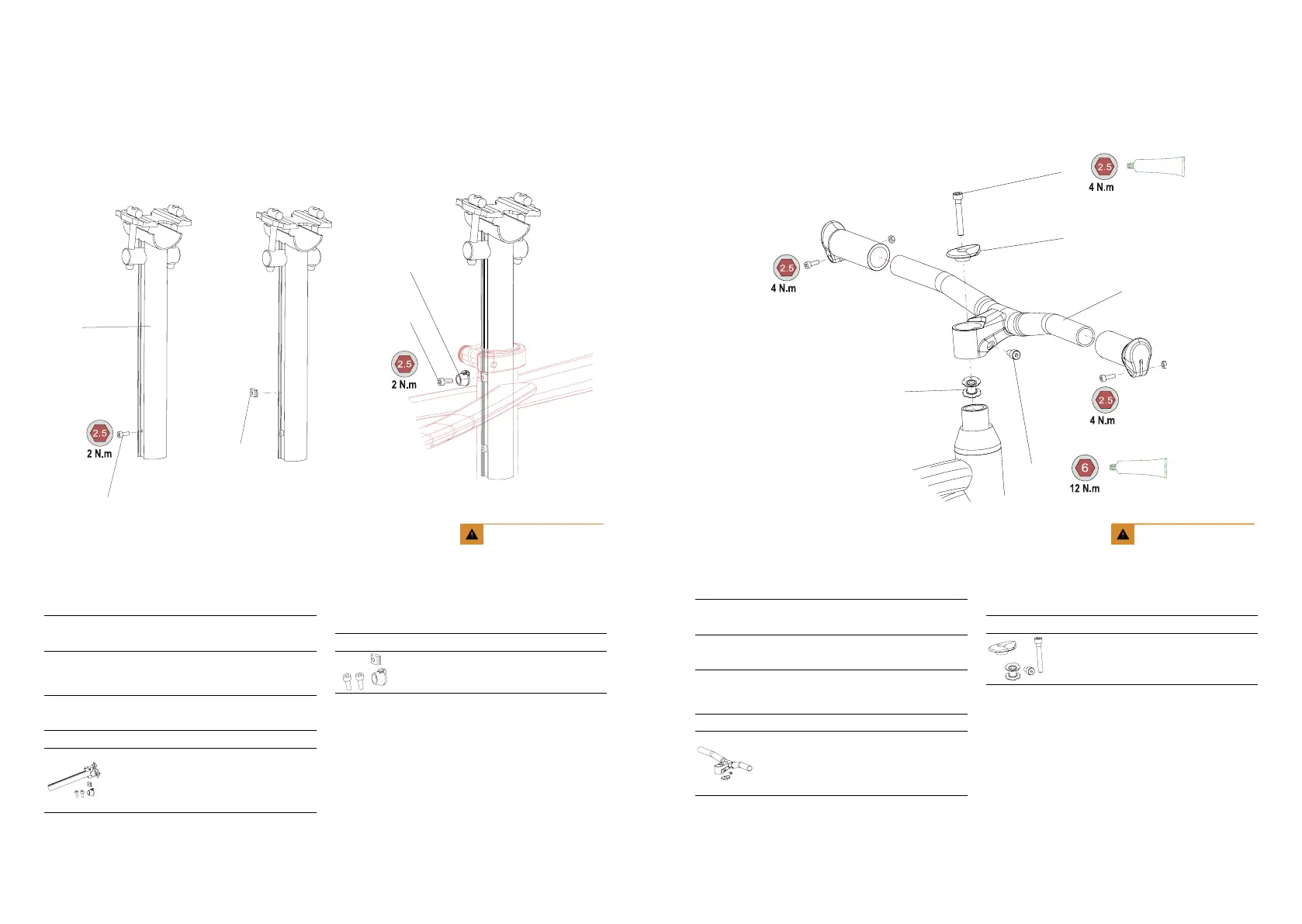

DIGIT JUNIOR SEATPOST. ASSEMBLY AND SPARES. INTEGRATED HANDLEBAR+STEM OC JUNIOR
07 DIGIT JUNIOR 27.2 SEATPOST
(Seatpost clamp not included)
DIGIT 27.2X180MM
(MX12)
X2501800
DIGIT 27.2x250mm
(MX16, MX20)
X2502500
DIGIT 27.2x300mm
(MX24)
X2503000
EACH ARTICLE CONTAINS: QTY.
7.1
DIGIT 27.2 ALLOY SEATPOST SB0
(Choosen size)
1
7.2 WEDGE GUIDE DIGIT 1
7.3 BOLT M3x8 2
7.4 EXTERNAL NUT DIGIT 1
09 HANDLEBAR+STEM ORBEA JUNIOR 21
HANDLEBAR 400MM +
STEM (MX12)
X2480000
HANDLEBAR 450mm +
STEM (MX16)
X2560000
HANDLEBAR 540mm +
STEM (MX20, MX24)
X2600000
EACH ARTICLE CONTAINS: QTY.
9.1
HANDLEBAR+STEM ORBEA JUNIOR 21
(Choosen)
1
9.2 STEM TOPCAP 1
9.3 STEM TIGHTENING BOLT 1
Always follow the recommended
torque settings.
Always follow the recommended
torque settings.
08 DIGIT JUNIOR 27.2 SEATPOST HARDWARE KIT
MX12, MX16, MX20, MX24
(Seatpost clamp not included)
ART Nº: X2490000 QTY.
8.1 WEDGE GUIDE DIGIT 1
8.2 BOLT M3x8 2
8.3 EXTERNAL NUT DIGIT 1
10 HANDLEBAR+STEM ORBEA JUNIOR 21 HARWARE KIT
MX12, MX16, MX20, MX24
ART Nº: X2530000 QTY.
10.1 STEM TOPCAP 1
10.2 BOLT M6x30 HEADSET PRELOAD 1
10.3 STARNUT 1 1/8" 1
10.4 STEM TIGHTENING BOLT
1
2.5
7
8.2
8.1
8.3
10.2
10.3
9.2/10.1
9.1
9.3/10.4
8.2
GREASE
GREASE
DIGIT SEATPOST HANDLEBAR
