BLUE PAPER MX JUNIOR · 2021

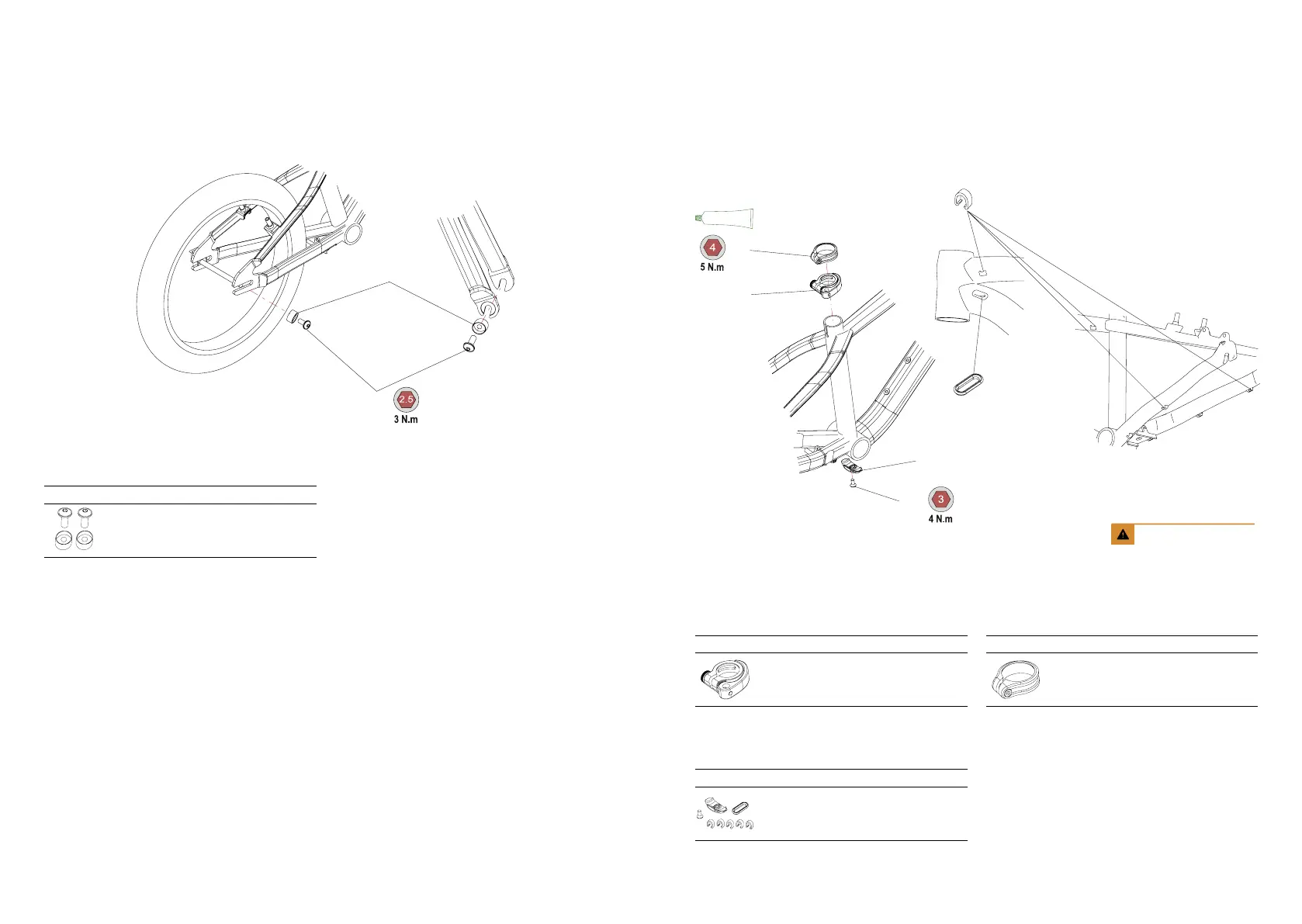

MX12, MX16 WHEEL SAFETY BOLT KIT
03 MX12, MX16 WHEEL SAFETY BOLT KIT
ART Nº: X2450000 QTY.
3.1 BOLT M6x20 2
3.2 LOCKING WASHER M6 JUNIOR 2
04 SEATPOST CLAMP 31.8 QR
WITH RUBBER PROTECTOR. BLACK
MX12, MX16, MX20, MX24. WITH DIGIT SEATPOST
ART Nº: X2510000 QTY.
1
06 CABLEGUIDE KIT
MX20, MX24
ART Nº: X2610000 QTY.
6.1 CABLEGUIDE CLIP 5
6.2 CABLEGUIDE BB MX20, MX24 1
6.3 BOLT M5x12 1
6.4 RUBBER PLUG 22x8 HOLE 1
05 SEATPOST CLAMP 31.8 WITH BOLT. BLACK
MX20, MX24. WITH STANDARD SEATPOST.
ART Nº: X2520000 QTY.
1
Always follow the recommended
torque settings.
3.2
6.1
5
4
6.2
6.3
3.1
GREASE
FRAME HARDWARE
