TECHNICAL MANUAL18 | ORBEA ORBEA | 19
EN
BLUE PAPER MX JUNIOR · 2021
07 ASSEMBLY AND SPARES
HEADSET
Type Measurement
TOP Semi integrated 1-1/8"
BOTTOM Semi integrated 1-1/8"
MX12 MX16 MX20 MX24
FORK
QR 100mm
With safety bolt
QR 100mm
With safety bolt
QR 100mm QR 100mm
FRAME
QR 100mm
With safety bolt
QR 113mm
With safety bolt
QR 135mm QR 135mm

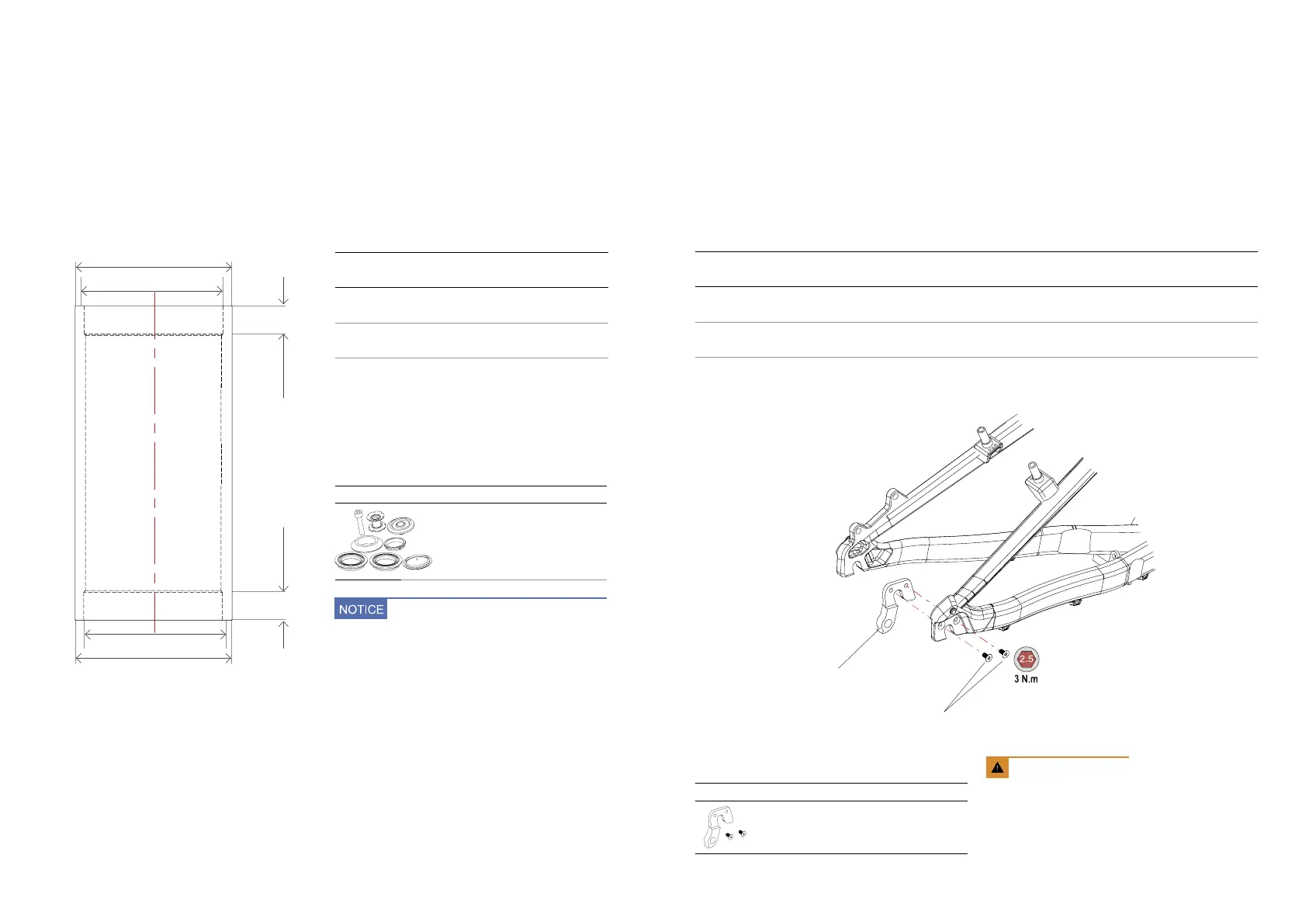

HEADTUBE DIMENSIONS
MX12, MX16, MX20, MX24
HEADSET SPECIFICATION
MX12, MX16, MX20, MX24
DROPOUTS
STANDARDS
REAR DERAILLEUR HANGER. MX20, MX24
Ø50
Ø50
Ø44
Ø44
SPARES
01 1 1/8"1 1/8" SEMI INTEGRATED HEADSET
Compatible with: MX12, MX16, MX20, MX24
ART Nº: X2550000 QTY.
1
9
9
This headset includes a round stem topcap
for standard stems. For assemblies with
OC Junior integrated handlebar-stem assem-
blies, the spare proled topcap is included
in article X2530000. Read the Handlebar
section of this manual.
AXLE AND
REAR DERAILLEUR HANGER
02 DERAILLEUR HANGER QR. MX20, MX24
ART Nº: X2590000 QTY.
2.1 DER. HANGER STD QR 1
2.2 BOLT M4x8 COUNTERSUNK 2
Always follow the recommended
torque settings.
2.1
2.2
