1 2 354
M
SUPRA
52.5
53
102
45

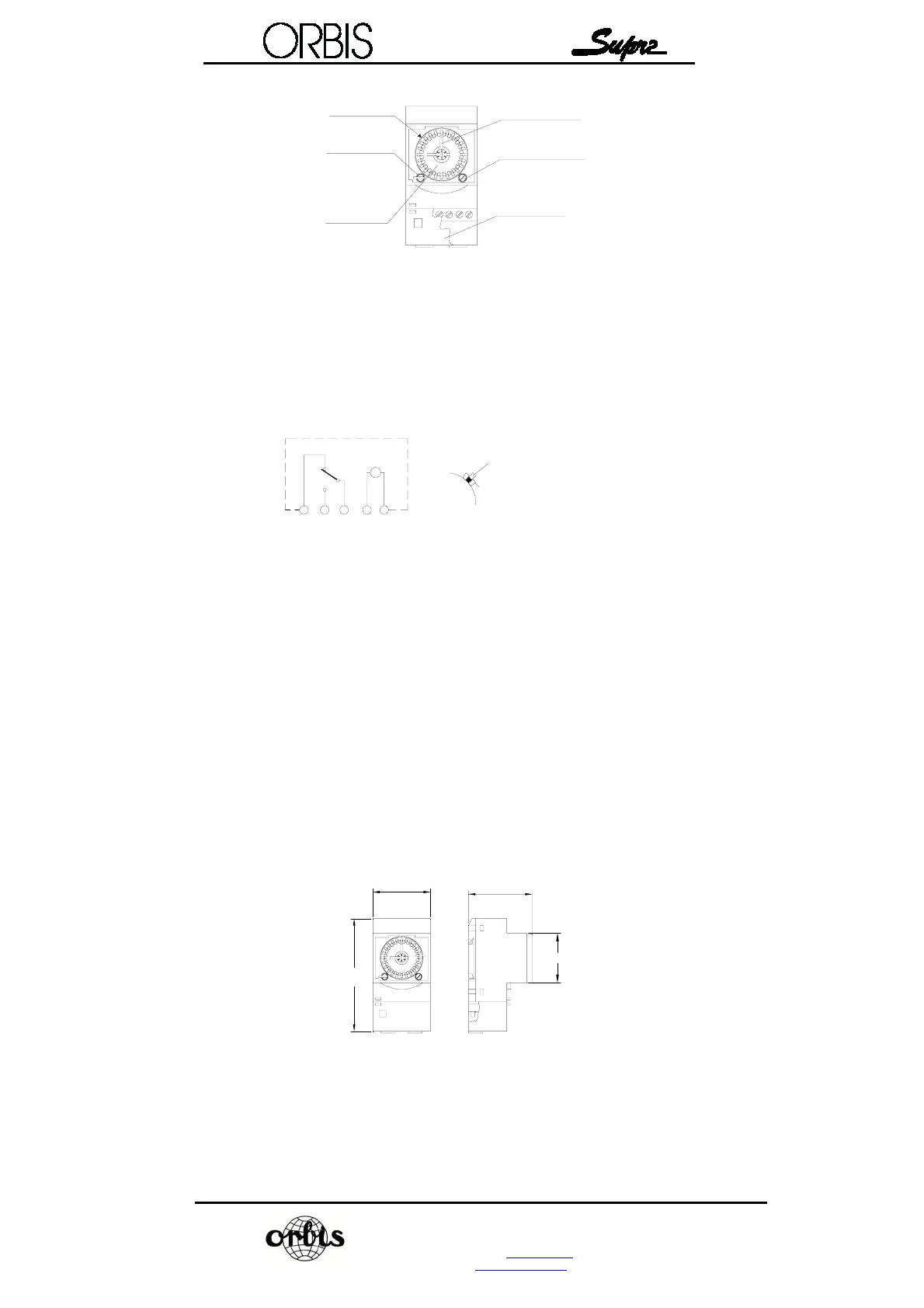

Index
Hands clock
Time-set button
Programming
dial
Terminal cover
Manual control
TIME SWITCH
INSTRUCTIONS FOR USE
DESCRIPTION
The SUPRA time switch can control any electrical installations by means of daily or
weekly programmes.
INSTALLATION
WARNING: Installation and mounting of the electrical apparatus should be carried
out by an authorised installer.
The apparatus is internally protected against interference by a security circuit.
However, certain, especially string magnetic fields may cause alterations in its
operation.
MOUNTING: In a distribution cabinet, fitted with a 35 mm symmetric profile, in
accordance with the EN 50022 standard (DIN Rail), or wall mounted with fixing
supplement incorporated.
CONNECTION: Connection drawing.
PROGRAMMING: Move all the tabs towards the interior of the dial.
Move the tabs that corresponding to the required connection times outwards, in which
contact 2-3 remains closed.
SETTING THE TIME: Turn the time-set control to the right until the indicators mark the
actual time.
MANUAL CONTROL: 3 Positions.
I Permanently on (2-3 closed)
0 Permanently off (2-3 open)
A Automatic operation
TECHNICAL SPECIFICATIONS:
Power supply: As indicated on the device
Switching capability: 16(4) A /250 V~
Own power consumption: 0.5 W
Time-keeping precision: ± 1 sec./day at 22 ºC
Time-keeping back-up (QRD, QRS) 100 hours
Dial type Daily: 48 tabs
Weekly: 42 tabs
Minimum operation time Daily: 30 minutes
Weekly: 4 hours
Operating temperature: -10 ºC to +50 ºC
Type of protection: IP 20 in accordance with EN 60529
Protection class II in accordance with EN 60335
under correct mounting conditions.
DIMENSIONS:
ATTENTIÓN
Those models of time switch with time-keeping back-up include a battery that may be
harmful to the environment if not correctly disposed of. Do not dispose of the device
without first removing the battery and depositing it in a container designed for
recycling these types of battery, or return the product to the factory.
A016.29.50039
ORBIS TECNOLOGÍA ELÉCTRICA, S.A.
Lérida, 61 E–28020 MADRID
Teléfono:+ 34 91 5672277; Fax:+34 91 5714006
E-mail: info@orbis.es
http://www.orbis.es
Closed (2-3) Open (1-3)
Open (2-3) Closed (1-3)
