4

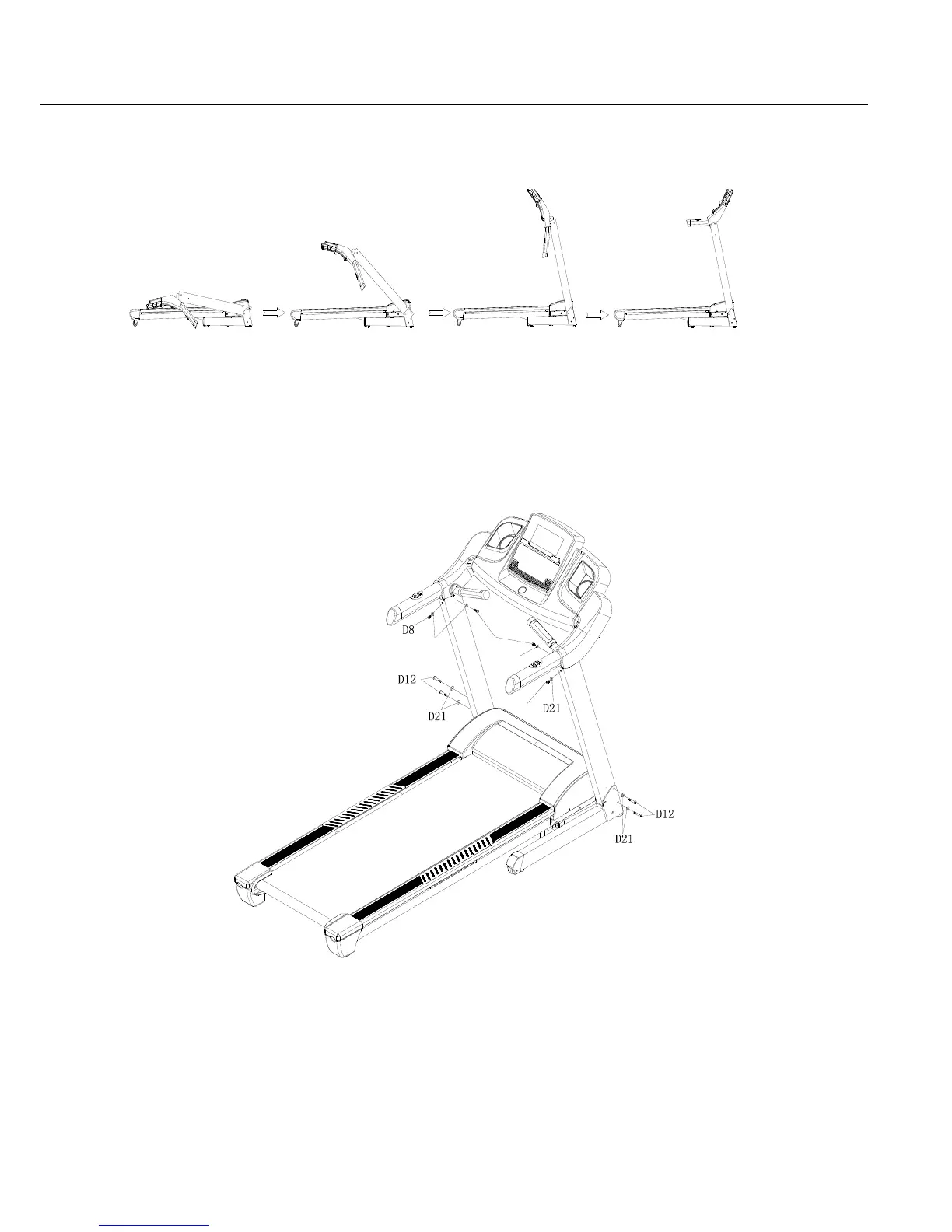

STEP 1Follow the below diagram to lift up the computer bracket. Be careful not to cut, jam
and damage cables inside the frame tubes when folding up.
STEP 2: Use bolt M10*55 (D12) and flat washer M10 (D21) to tighten bottom uprights, and
fix console/handrail bracket with bolt M10*15 (D8) and flat washer M10 (D21).
D21
D8
D8
D21
