Orbit X304 - Assembly Step 4; Assembly Step 4: Explosion Drawing

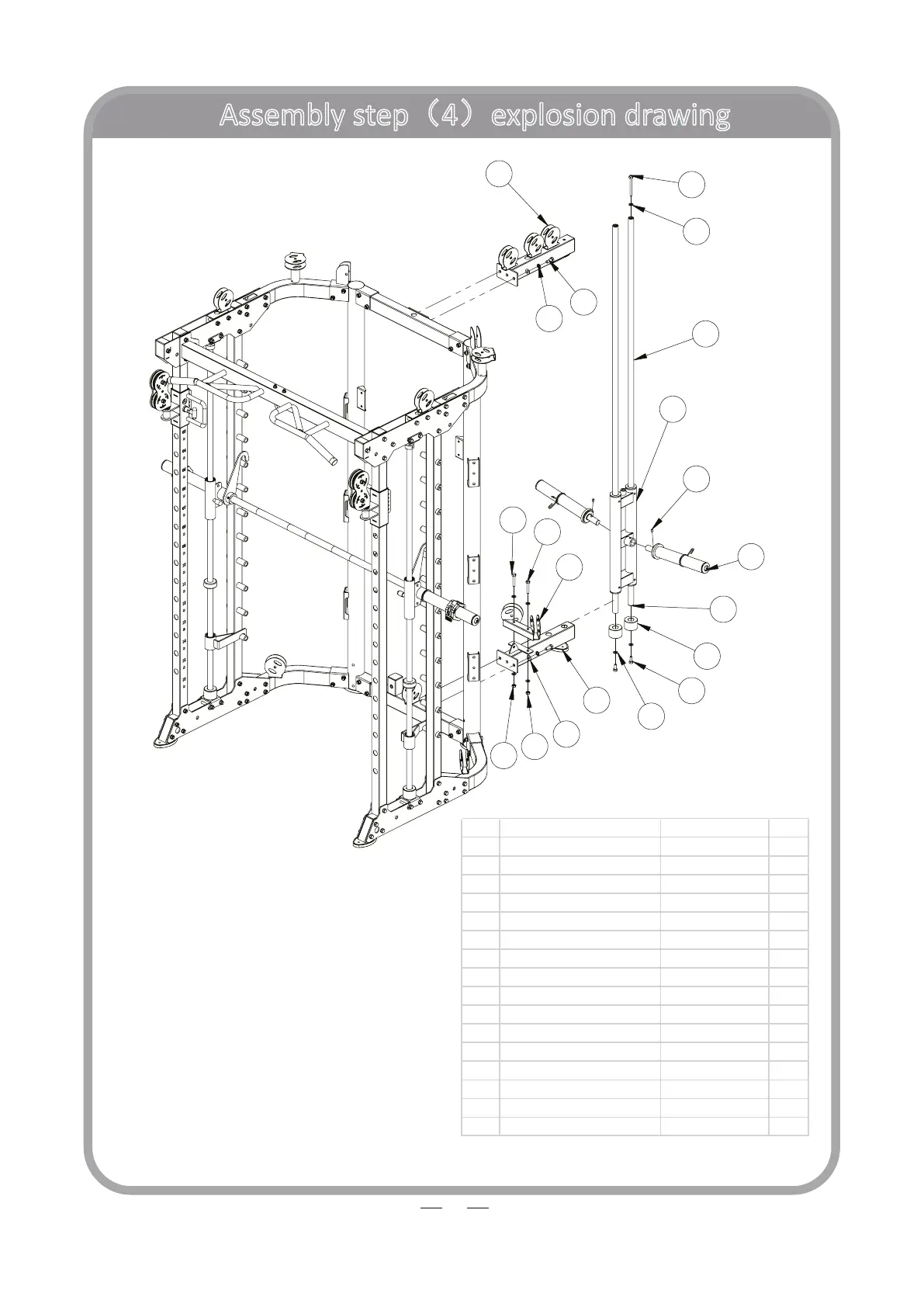

Assembly step（4）explosion drawing
13
39
44
52
50
55
47
48
49
53
40
51
10
45
11
54
51
10
11
47
46
No. Descripon Note Qty.
10 lock nut M10 2
11 washer Φ10 7
39 spring washer Φ12 4
40 washer Φ12 4
44 upper connecon tube 1
45 lower connecon tube 1
46 big sliding sleeve 1
47 guide rod hollow 2
48 rubber pad Φ60*Φ26*45 2
49 hexagon bolt M10*25 2
50 hexagon bolt M10*95 1
51 hexagon bolt M10*55 2
52 hexagon bolt M12*30 4
53 double pulley bracket 1
34 socket set screw M8*10 2
55 back barbell plate holder 2
