Orbit X304 - Assembly Step 3: Assembly Instructions

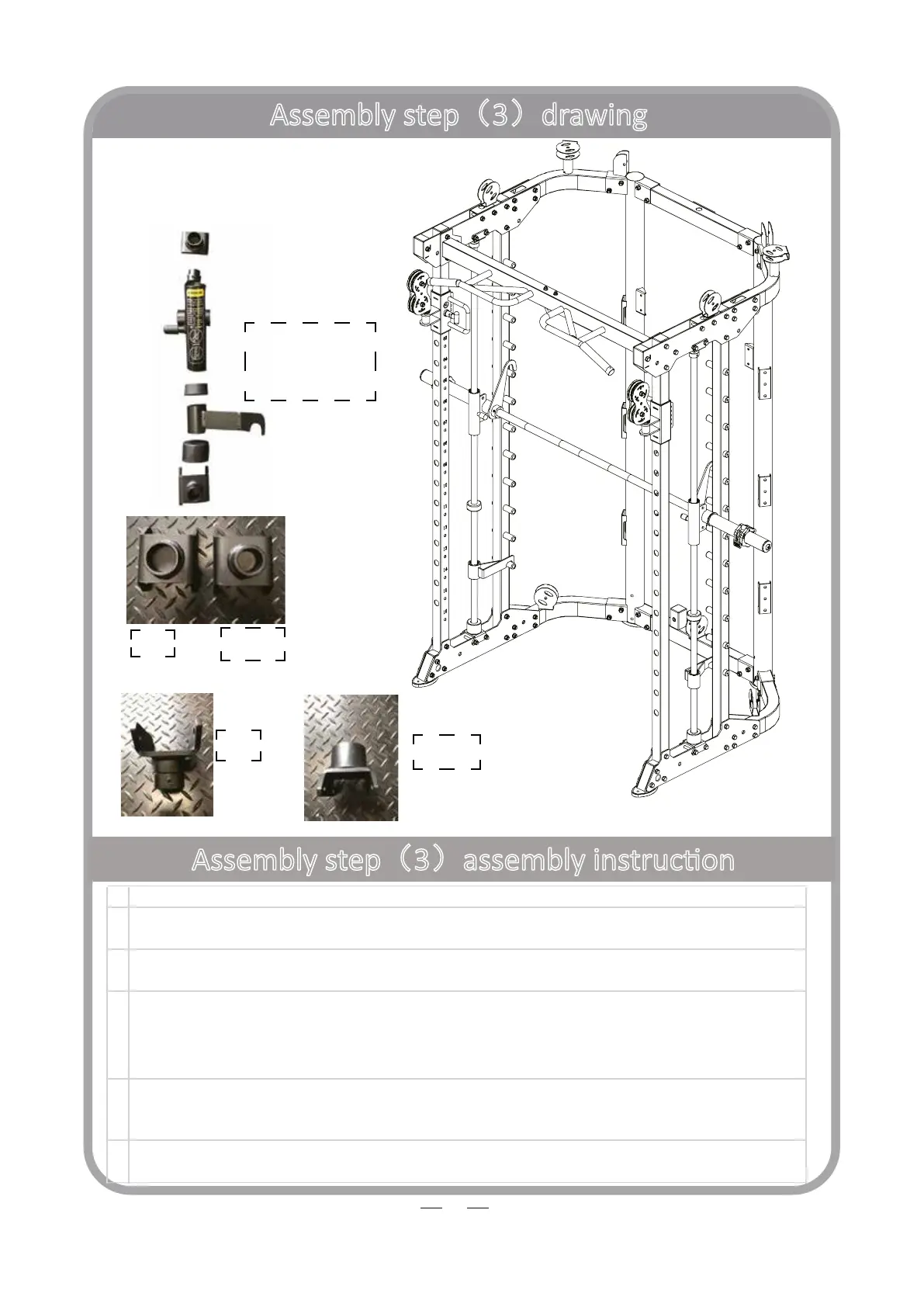

Assembly step（3）drawing
12
Assembly step（3）assembly instrucon
Installation
order
UP
Down
UP
Down
1 Install 1 x side first and fit bar.
2 Fix lower base-25 fastening on lower plate using M10x90 hexagon bolt-33, Φ10 washer-11 and M10
lock nut-10
3 Fix upper base-26 fastening on upper plate using M10x90 hexagon bolt-33, Φ10 washer-11 and M10
lock nut-10
4 Guide rod in turn through lock sleeve-28, sliding sleeve-29, rubber pad-43, safety hook le-32 and
rubber pad with groove-30 fastening on base using M
8x10socket set screw-34
aenon: the guide rod should be place upright
5 Barbell rod-41 in turn through sliding sleeve-29, check ring-36, inner pipe-42, pipe-37 and end cap-35
fastening using M12x40 buon head socket screw-38, Φ12 spring washer-39 and Φ12 washer-40,
then fit on barbell clamp collar-89
6 Guide rod in turn through lock sleeve-28, sliding sleeve-29, rubber pad-43, safety hook right-31 and
rubber padwith groove-30 fastening on base using M8x10socket set screw-34
