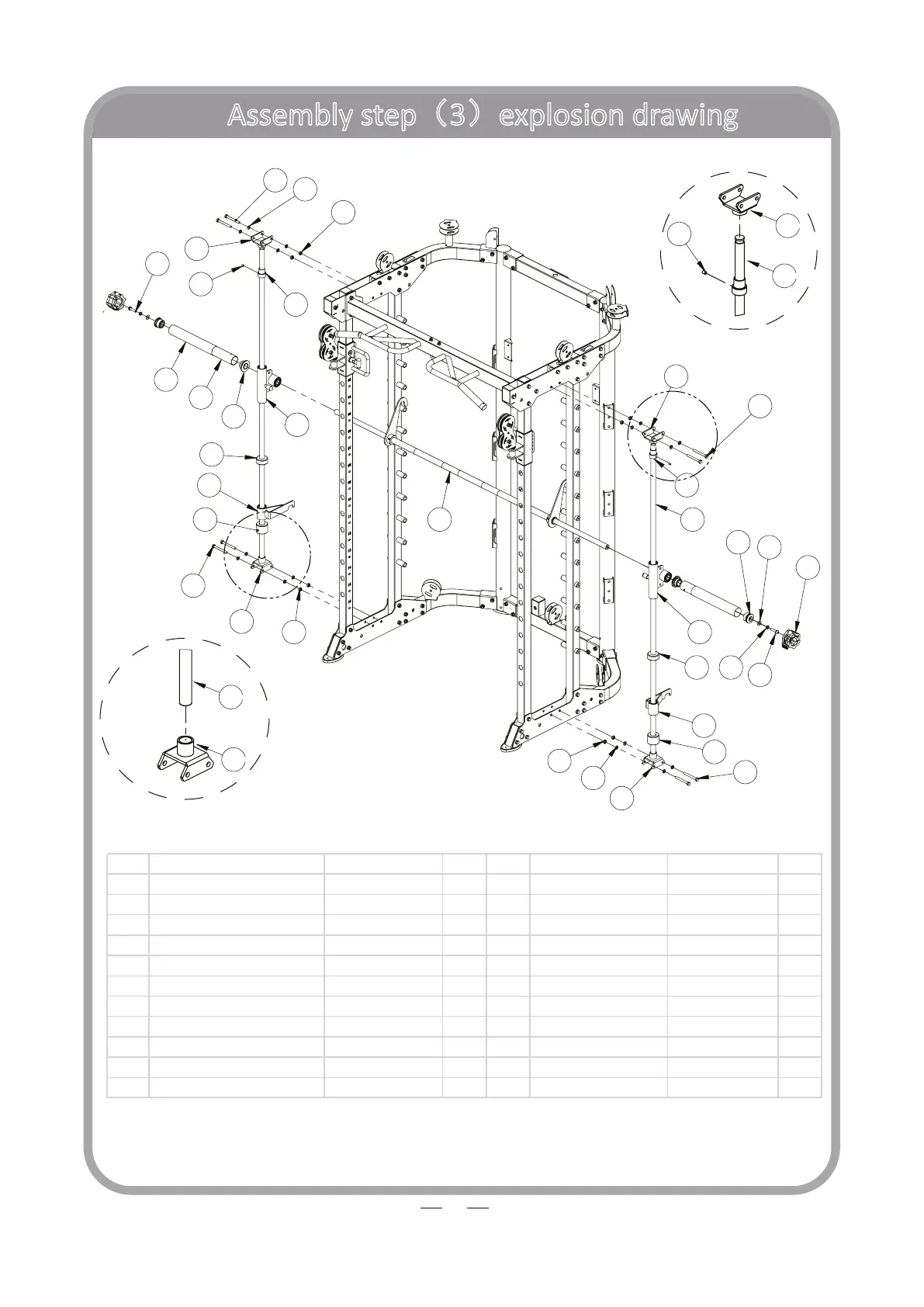

Orbit X304 - Assembly Step 3; Assembly Step 3: Explosion Drawing

Assembly step（3）explosion drawing
11
33
11
26
34
10
36
42
37
35
40
39
38
25
25
27
29
28
30
31
32
29
41
33
10
33
10
11
43
43
28
33
26
30
38
89
27
26
34
25
27
No. Descripon Note Qty. No. Descripon Note Qty.
10 lock nut M10 8 34 socket set screw M8*10 2
11 washer Φ10 16 35 end cap 2
25 lower base 2 36 check ring 2
26 upper base 2 37 pipe Φ 2
27 guide rod Φ25*1850 2 38 buon head socket M12*40 2
28 lock sleeve 2 39 spring washer Φ12 2
29 sliding sleeve 2 40 washer Φ12 2
30 rubber pad with groove Φ60*Φ26*45 2 41 barbell rod 1
31 safety hook right 1 42 inner pipe Φ 2
32 safety hook le 1 43 rubber pad Φ60*Φ26*25 2
33 hexagon bolt M10*
90 8 89 barbell rod ring 2
