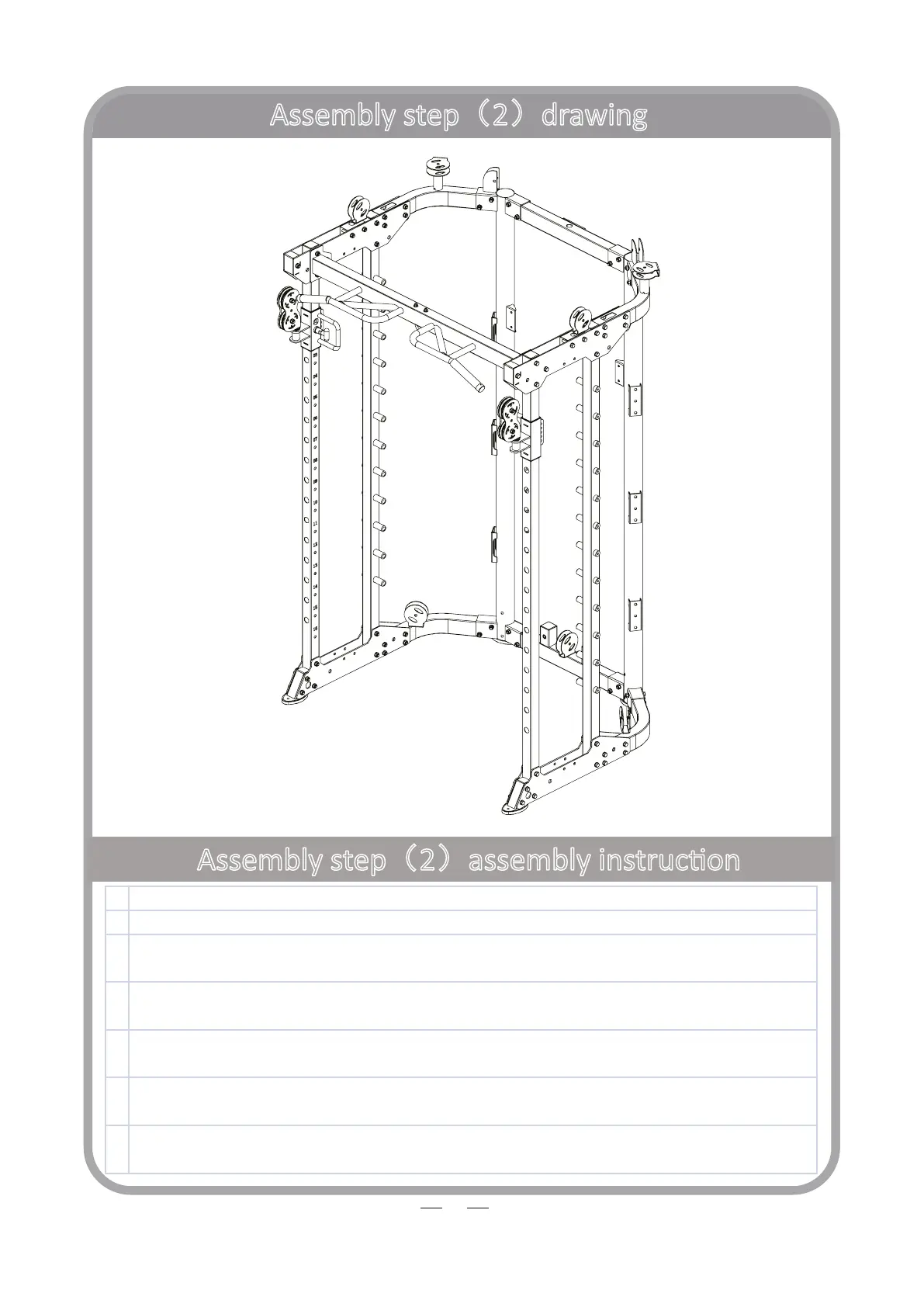

Assembly step（2）drawing
10
Assembly step（2）assembly instrucon
1
Fix sliding tube le-21 on tube with hole le-18
2
Fix sliding tube right on tube with hole right-17
3
Fix upright tube-16 and tube with hole le-18 fastening on assembly step-1 using M10x75
hexagon bolt-9, Φ10 washer-11, M10 lock nut-10, upper plate-13 and lower plate-19
4
Fix pulley frame tube right-14 and pulley frame tube le-15 fastening on upper plate-13
using M10x75 hexagon bolt-9, Φ10 washer-11 and M10 lock nut-10
5
Fix end tube-23 fastening on upper plate-13 using M10x75 hexagon bolt-9, Φ10 washer-11
and M10 lock nut-10
6
Fix foot tube cover-22 fastening on lower plate-19 using M10x75 hexagon bolt-9, Φ10
washer-11 and M10 lock nut-10
7
Fix chin up bar-12 fastening on upper plate-13 using M10x80 hexagon bolt-24, Φ10 washer-
