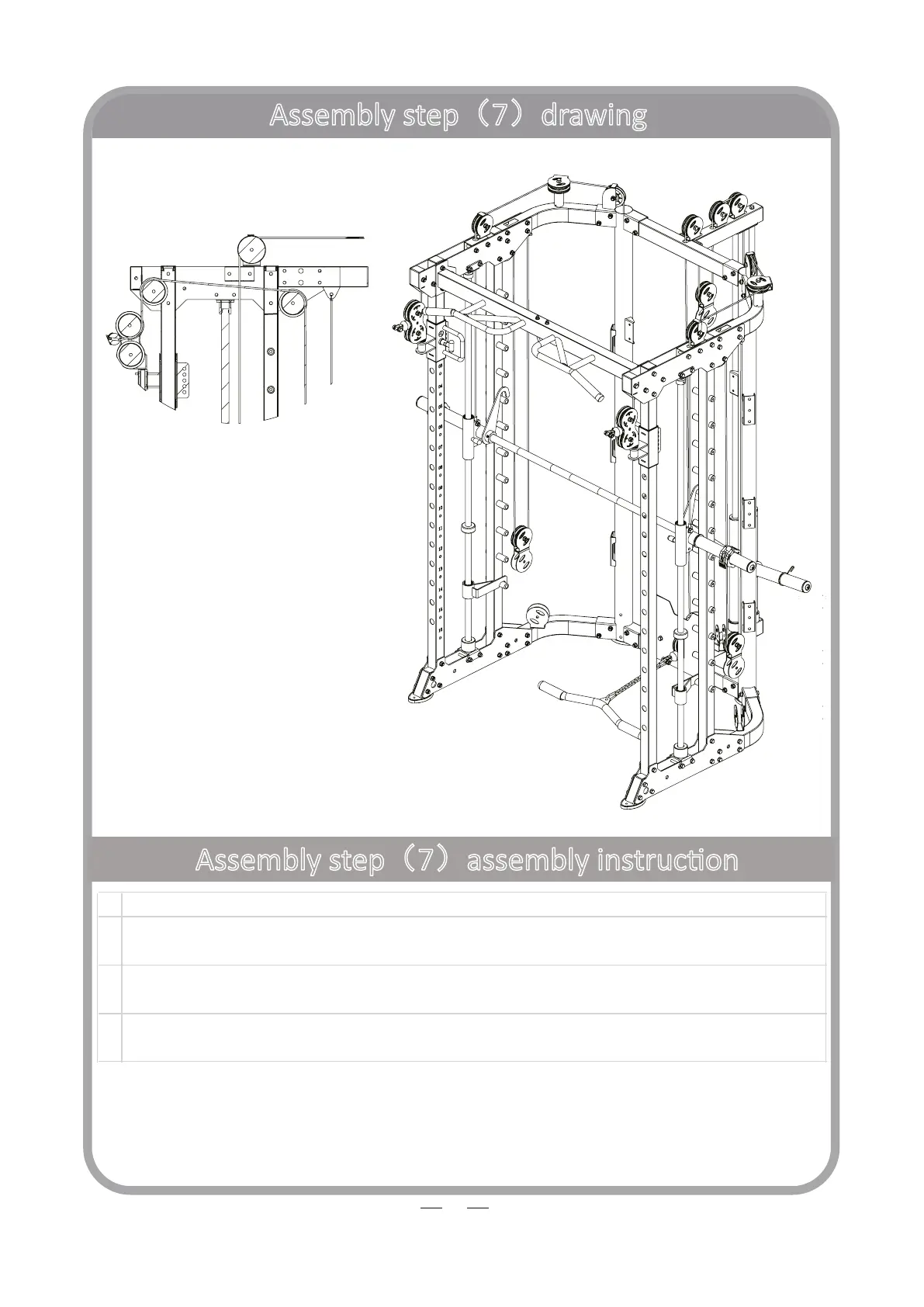

Assembly step（7）drawing
Assembly step（7）assembly instrucon
Internal wire schematic
1 To feed cable through frame.
2 As the shown in the figure fix pulley-57 fastening on upper plate using M10x80 hexagon bolt-
24, Φ10 washer-11 and M10 lock nut-10 and pulley spacer sleeve-68
3 Fix pulley-57 fastening on ”-“ shape pulley frame-63 using M10x45 hexagon bolt-59, Φ10
washer-11 and M10 lock nut-10
4 As the shown in the figure put the wire-67 using M10x45 hexagon bolt-59, Φ10 washer-11
and M10 loc
k nut-10 fastening on bending tube, careful to keep the wire vercal
