Orbit X304 - Assembly Step 9; Assembly Step 9: Explosion Drawing

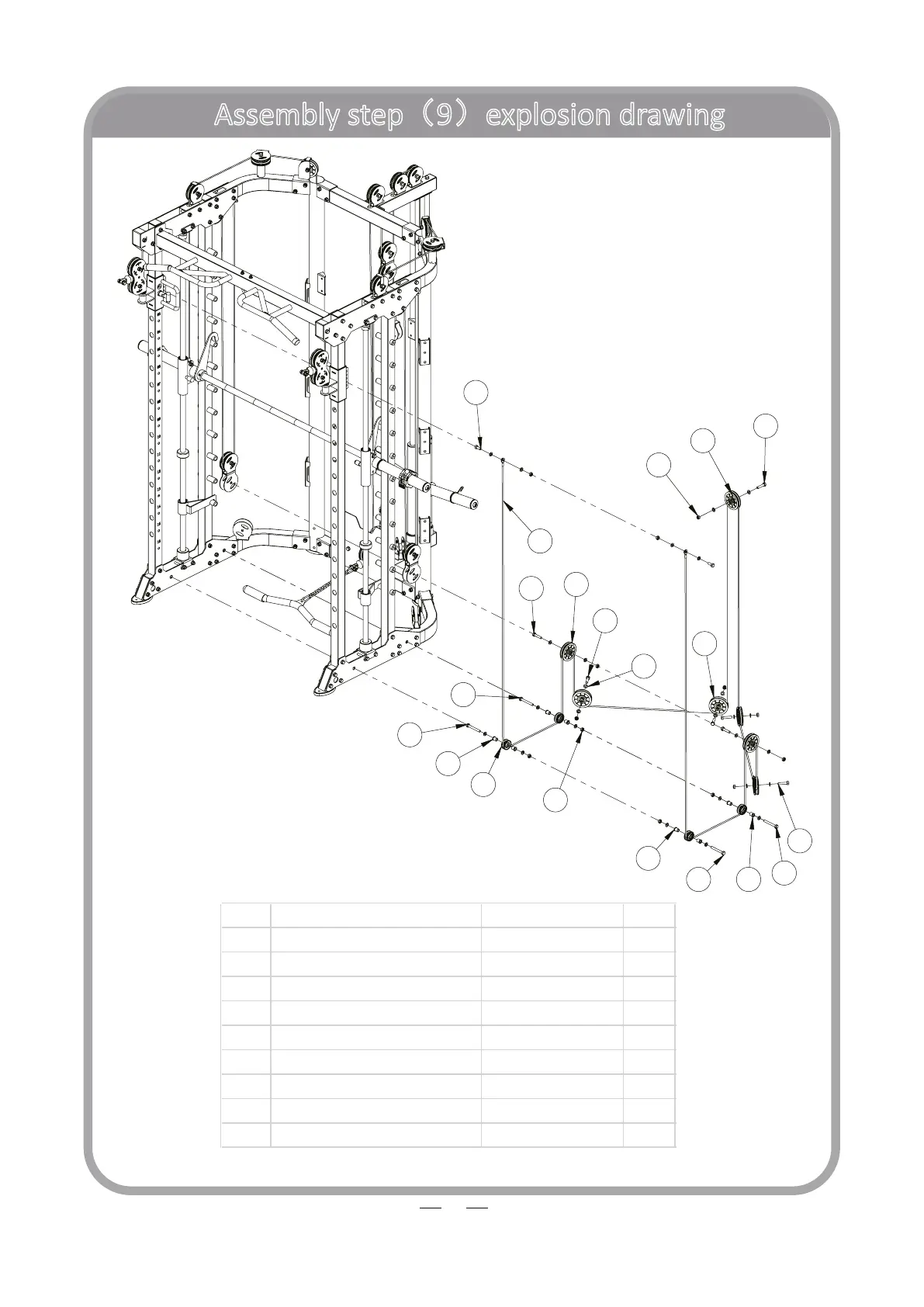

Assembly step（9）explosion drawing
23
59
68
57
24
11
10
57
73
72
49
57
59
10
24
24
24
59
59
68
68
No. Descripon Note Qty.
10 lock nut M10 26
11 washer Φ10 13
24 hexagon bolt M10*80 4
49 hexagon bolt M10*25 2
57 pulley Φ95 7
59 hexagon bolt M10*45 7
68 pulley spacer sleeve Φ20*10.5*L20.5 8
72 wire Φ5*9715mm 1
73 pulley Φ50 4
