Step 20

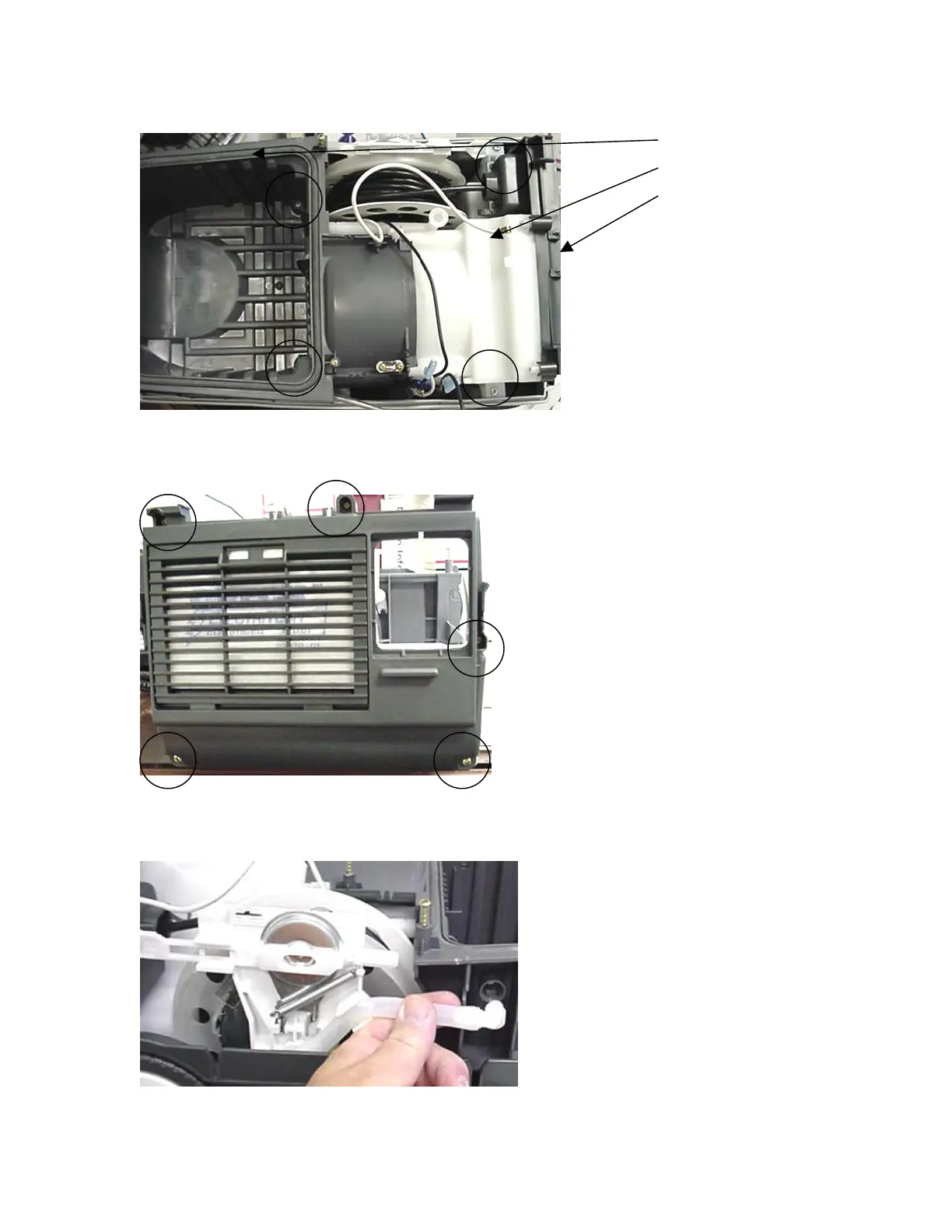

Dust Chamber/Motor Housing/Back Lid Assembly Screw Locations
Step 21
Back Lid Screw Locations
Dust Chamber
Motor Housing
Back Lid
If removing the assembly
only, perform steps 21, 23
& 24 before removing the
assembly from the lower
housing.
Step 22
Cord Winder Cooling Tube
