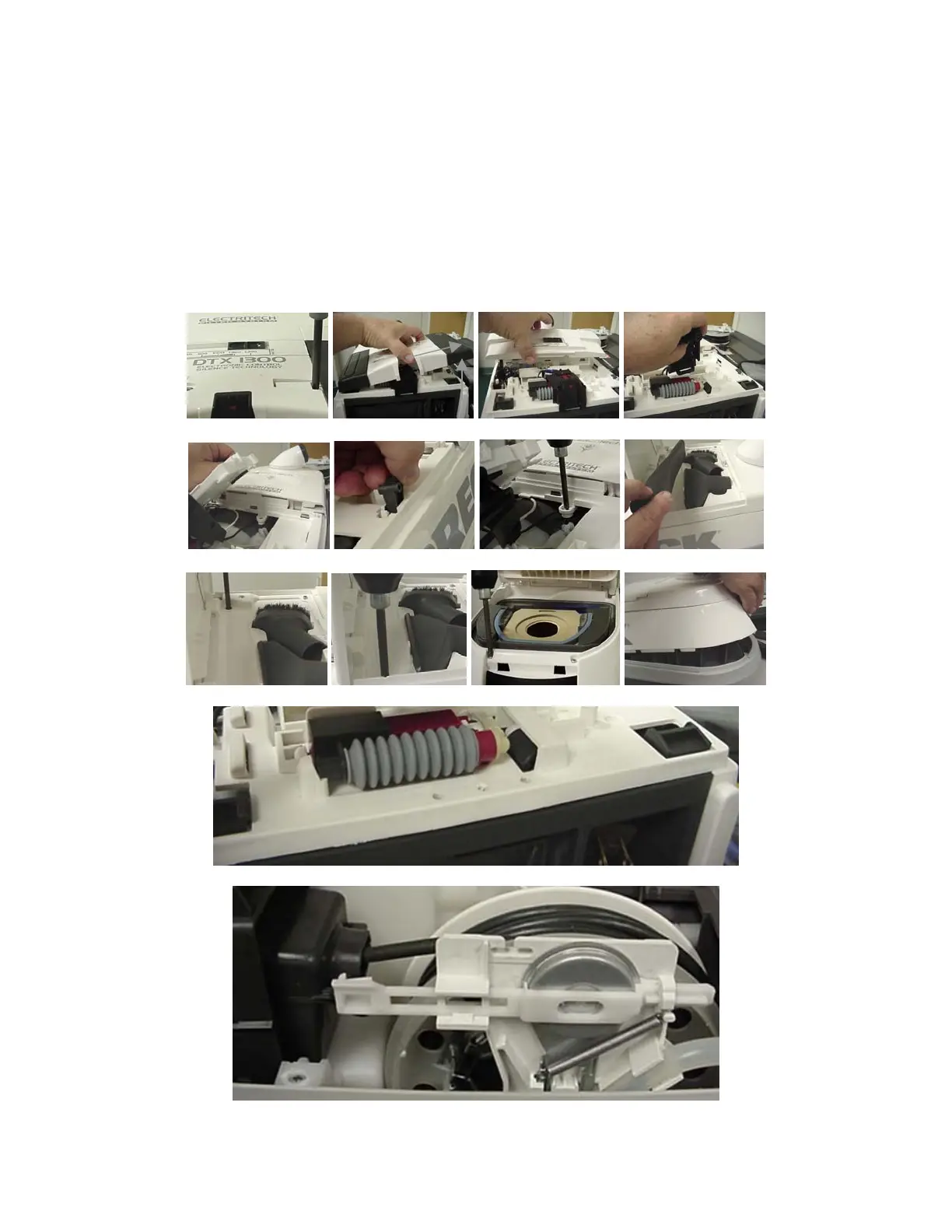

Cord Winder Replacement Without Disconnecting Everything
1. Remove service screw (A) 2. Lift panel up and pull off right (B) 3. Remove circuit board cover (C)
4. Unhook park (D) 5. Move circuit board holder (E) 6. Remove cord winder actuator (F)
7. Remove 5 screws (G, H, I, J, K) 8. Lift upper housing & unhook (L, M) 9. Remove cord winder (N)
This instruction eliminates total disassembly just to replace the cord
winder. Only two leads and a cooling tube to the cord winder need
to be disconnected and reconnected. See the disassembly
instruction to finish the cord winder removal.
A
B
C
D
E
F
G
H
I J K L
M
N
