(6) Heavy-Duty Floor MachineFMH
PROFESSIONAL GRADE

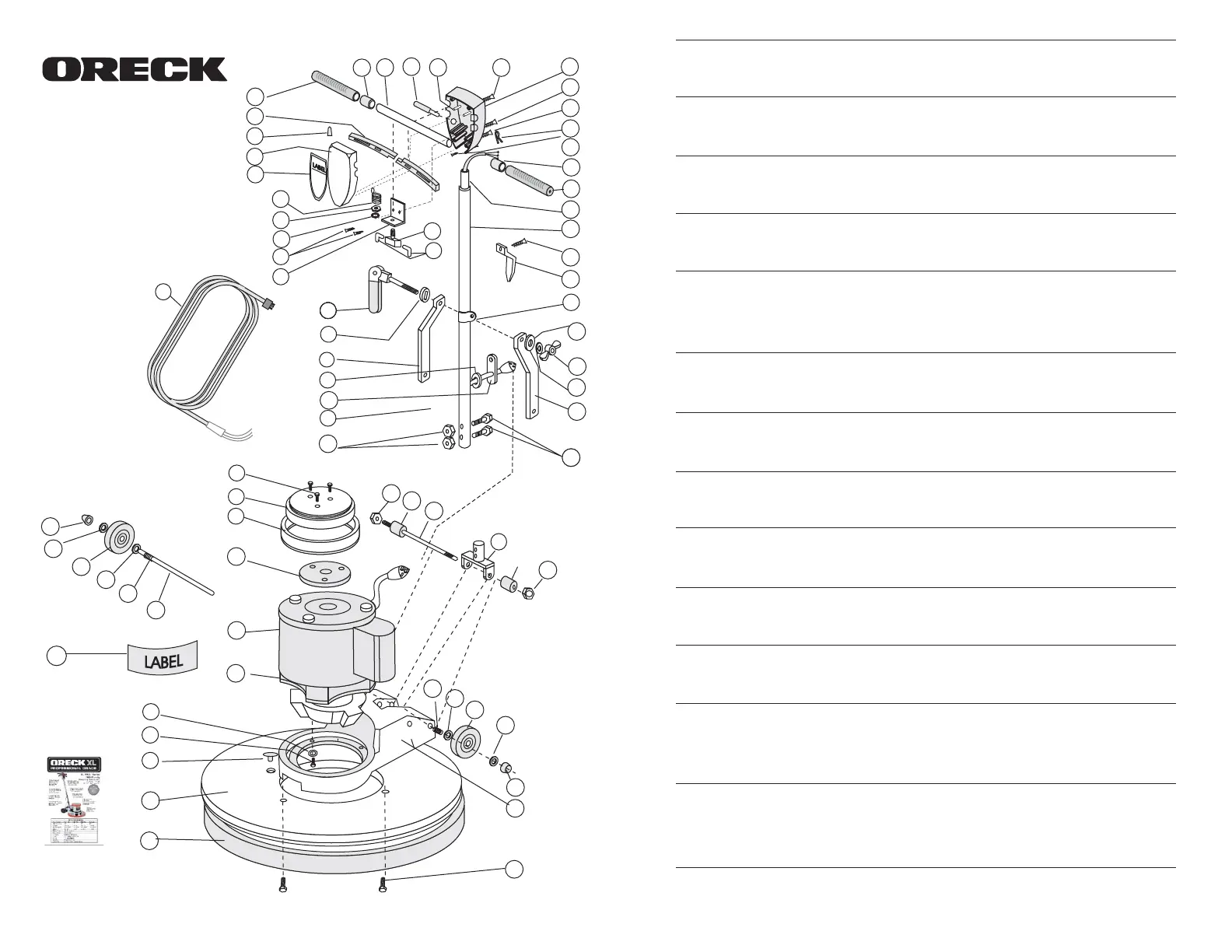

FMH Heavy-Duty Floor Machine (7)
30
13
12
11
22
10
15
16
23
3
4
5
2
7
36
37
1
38 39
6
7
6
8
9
32
33
26
28
29
30
24
25
27
34
18
19
17
16
20
14
21
31
35
57
57
58
59
60
50
51
53
50
52
51
53
54
42
41
40
40
41
48
49
43
44
52
45
54
55
56
46
47
63
62
61
Number Description PART # # Required
1 Switch Box Back ME-A-104 1
2 Handle Tube Screw ME-B-23 2
3 Switch Box Closing Screw ME-B-21 4
4 Strain Relief Clip ME-M-213 1
5 Ground Wire Screw ME-B-68 2
6 Rubber Spacer ME-M-218 R 2
7 Hand Grip ME-M-218 2
8 Handle Tube Insert ME-M-247 1
9 Handle Tube Assembly ME-M-206 1
10 Cable Hook Screw ME-B-2 2
11 Cable Hook ME-A-164 1
12 Sliding Collar ME-A-111 1
13 Cam Washer ME-B-37 1
14 Cam Lock Wing Nut ME-B-25 1
15 Cam Split Washer ME-B-39 1
16 Bent Brace ME-M-216 2
17 Yoke Bolt ME-B-18A 2
18 Yoke Nut ME-B-19 2
19 Handle Tube Cable ME-G-16 1
20 Black Rubber Cable Connector ME-M-249 1
21 Cable Grommet ME-B-63 1
22 Rectangular Hole Cam Washer ME-B-67 1
23 Cam Assembly C-100 1
23A Complete Cam Assembly Kit (Includes 1 each of CCA 1
Drawing Items #13, 14, 15, 22, 23)
24 50 Foot Cable 14/3 Red ME-G-14-50-R 1
25 Switch Mounting Plate ME-G-30-B 1
26 Switch Plate Screw ME-B-1 2
27 Int. Tooth Lock Washer (For Switch) ME-B-35 1
28 Insulated Flag Wire Connector ME-G-48 2
29 On-Off Switch And Plate Assembly ME-G-30-AB 1
30 Lock Washer ME-B-33 1
31 Trigger Return Spring ME-G-30-CT057 1
32 Label For Switch Box CALL FOR # 1
33 Switch Box Front ME-A-103 1
34 Wire Connector ME-G-47 1
35 Trigger ME-A-105 2
36 16" Crossbar ME-M-211-A 1
37 Safety Interlock Assembly SIME-A-1 1
38 Trigger Pin ME-B-70 2
39 Crossbar Screw ME-B-22 2
40 Acorn Nut For Yoke Pin ME-B-8 2
41 Rubber Yoke Spacer ME-B-5 2
42 Yoke Pin ME-B-7 1
43 Yoke ME-A-1001 1
44 Drip Cap Mounting Screw ME-B-151 3
45 66 Frame Drip Cap Cover ME-M-242 1
46 66 Frame Drip Cap Cover Bumper ME-M-239 1
47 Cork Drip Cap Gasket ME-M-248 1
48 Motor 66 Frame 1.5 HP With Gearbox,115V MOTOR 1.5 HP / GB 1
49 Gear Box, 11:1, Triple Planetary GB96008,L,H 1
50 Hub Caps V0038 2
51 Spring Washer ME-B-51 4
52 6" Wheels ME-M-245 2
53 ½" Flat Washer ME-B-29 2
54 Spring ME-B-30 2
55 Axel ME-M-240 1
56 Label for Motor CALL FOR # 1
57 Main Machine Frame ME-A-166 1
58 Cap Screw ME-B-31 4
59B Bumper 15" ME-M-232-15 1
59C Bumper 17" ME-M-232-17 1
59D Bumper 19" ME-M-232-19 1
59E Bumper 21" ME-M-232-21 1
60B Apron 15" ME-A-167 1
60C Apron 17" ME-A-169 1
60D Apron 19" ME-A-171 1
60E Apron 21" ME-A-172 1
61 Scrubber Plug ME-B-50 1
62 Base Casting Screw ME-B-95 3
63 ¼" Medium Split Washer ME-B-32 3
™
XL PRO FMH Series
Heavy-Duty Floor Machine
175 RPM - 1.5 HP
15”, 17”, 19”, and 21”
®
