pure alcohol .
2. Rotate the blade position .
Loosen the fixing screw
Turn the blade to the next position as numbered
Tighten the blade fixing screw
Adjusting
Adjusting
Adjusting
Adjusting the
the
the
the blade
blade
blade
blade height
height
height
height
After all 16 blade positions have been used, the blade can then
be raised to allow for additional cleaves. This height adjustment
can be done twice providing a total of 48 usable blade positions.
To raise the blade height .

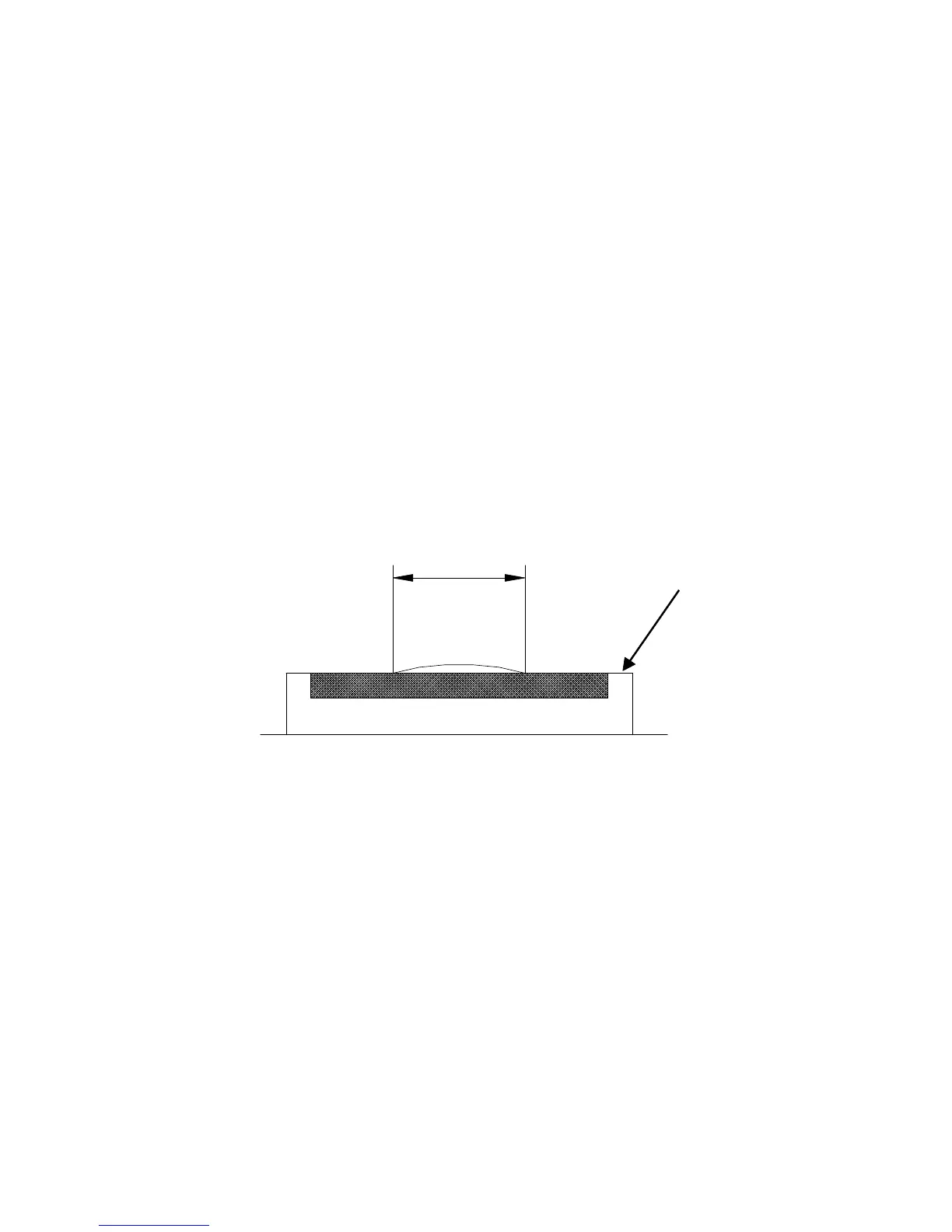

3mm
Bare fiber clamp
Figure H- 3
Loosen the blade height locking screws.
Referring to Figure H- 3, turn the blade height
adjustment screw so that the length of exposed blade
edge along the bare fiber clamp is 4 to 5mm .
Tighten the blade height locking screws.
Blade
Blade
Blade
Blade replacement
replacement
replacement
replacement
Remove the blade fixing screw and used blade
Set new blade and tighten blade fixing screw
