8
A
H
F

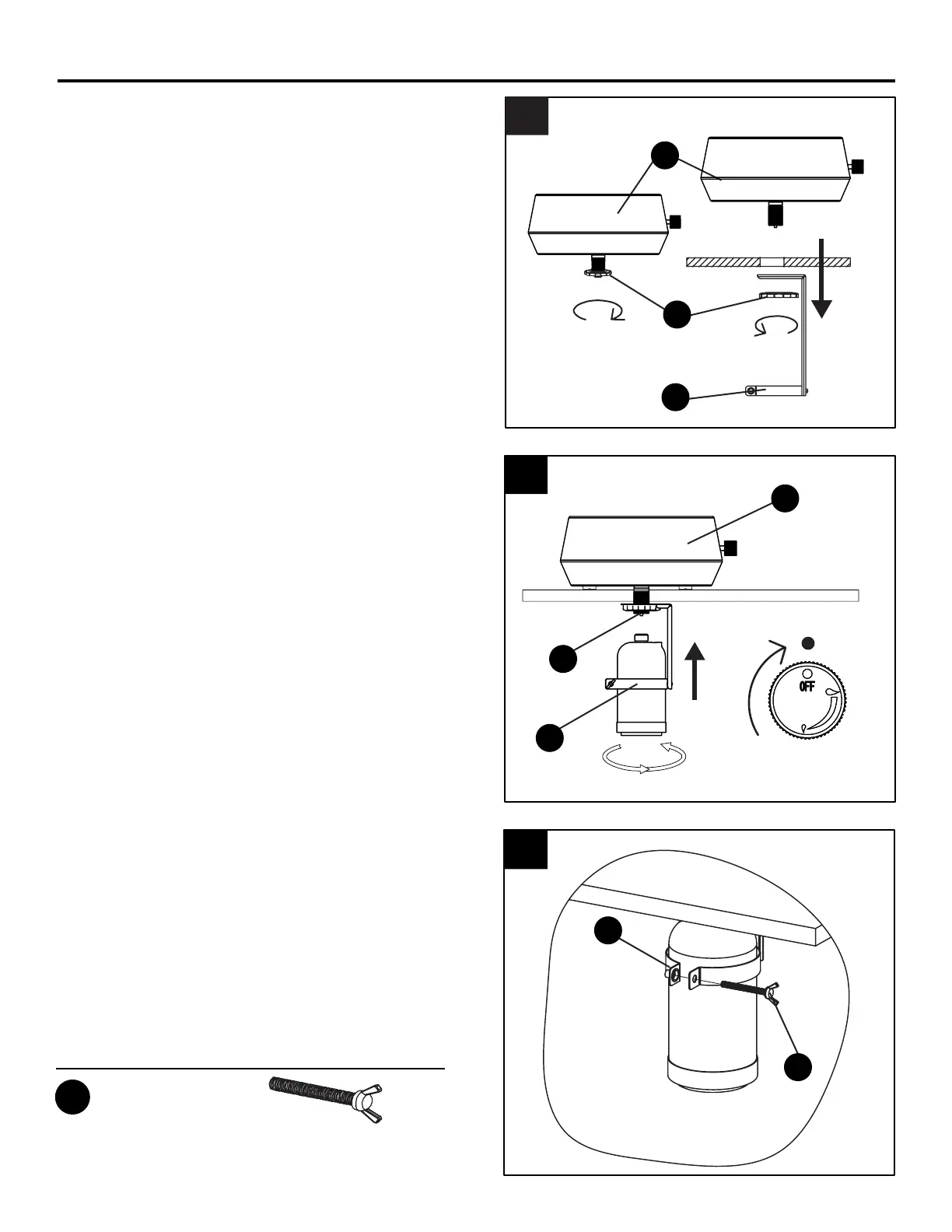

ASSEMBLY INSTRUCTIONS
2. Remove the support ring (E) from the body (A).
Insert the body (A) through the umbrella hole in
your table and the tank bracket assembly made in
step 1. Screw the support ring (E) to the body (A)
from underneath the table to secure the body to
the table.
4. Once the tank is attached to the regulator,
insert the wing screw (BB) into the tank bracket
and turn clockwise to secure the propane gas
tank tightly.
3. Check that the control knob (C) for the gas
supply system is turned to the “OFF” position
before assembling the 1 lb. propane gas tank.
To attach the 1 lb. propane gas tank (not
included) on the unit, screw the 1 lb. gas tank to
the regulator (F).
NOTE: Use only 20-pound cylinders
(approximately 18 ¼ inches high and 12 ¼ inches
in diameter) equipped with a cylinder connection
device compatible with the connection for the
hose regulator supplied with this appliance.
Propane gas and cylinder are sold separately.
A dented, rusted or damaged propane cylinder
may be hazardous and should be checked by
your cylinder supplier. Never use a propane
cylinder with a damaged valve connection.
3
4
F
A
H
2
A
E
H
E
H
A
Hardware Used
BB
Wing Screw
M6x55
x 1
BB
H
H
BB
To Next Page
