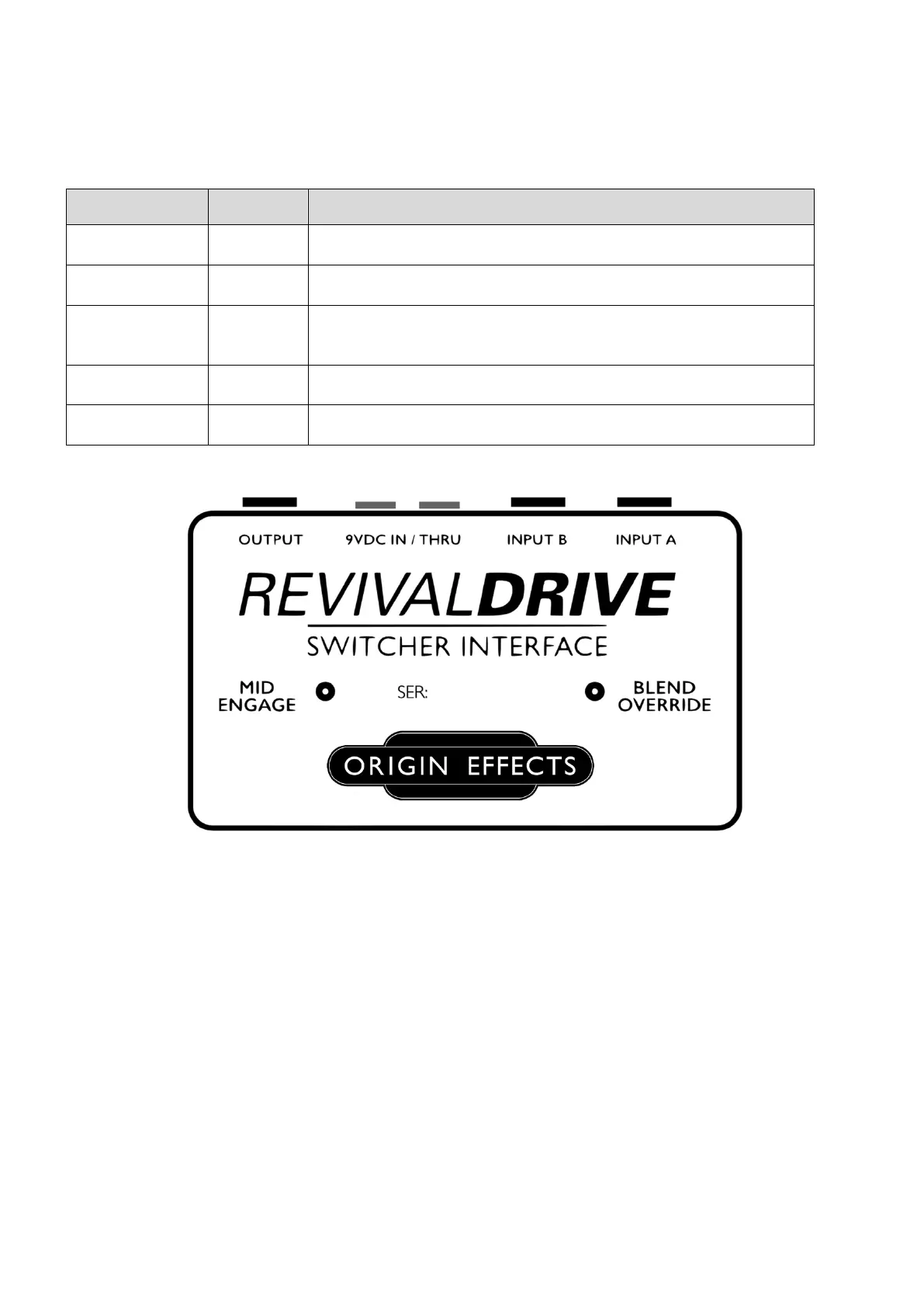

Appendix A - Connections
CONNECTOR TYPE FUNCTION
INPUT A TRS
Connects to Remote Switcher.
Controls bypass state and channel.
INPUT B TRS
Connects to Remote Switcher.
Controls mid engage and blend override.
THRU
2.1mm
barrel
Connects to an additional pedal.
Provides a 9V DC centre negative “daisy-chain” power
connection.
9VDC IN
2.1mm
barrel
Connects an external power supply.
Provides power to unit. 9VDC, centre negative.
OUTPUT TRS
Connects to F/SWITCH socket on RevivalDRIVE.
Controls pedal functions.

Origin Effects RevivalDRIVE Specifications

General

Bypass	True Bypass
Technology	Analog
Inputs	1 x 1/4"
Outputs	1 x 1/4"
Power Source	9V DC power supply (not included)
Input Impedance	1 MΩ
Output Impedance	1 kΩ
Type	Overdrive
Controls	Output, Blend, Highs, Lows, More/Pres, Gain
Channels	Mono
