IN 573 08/16

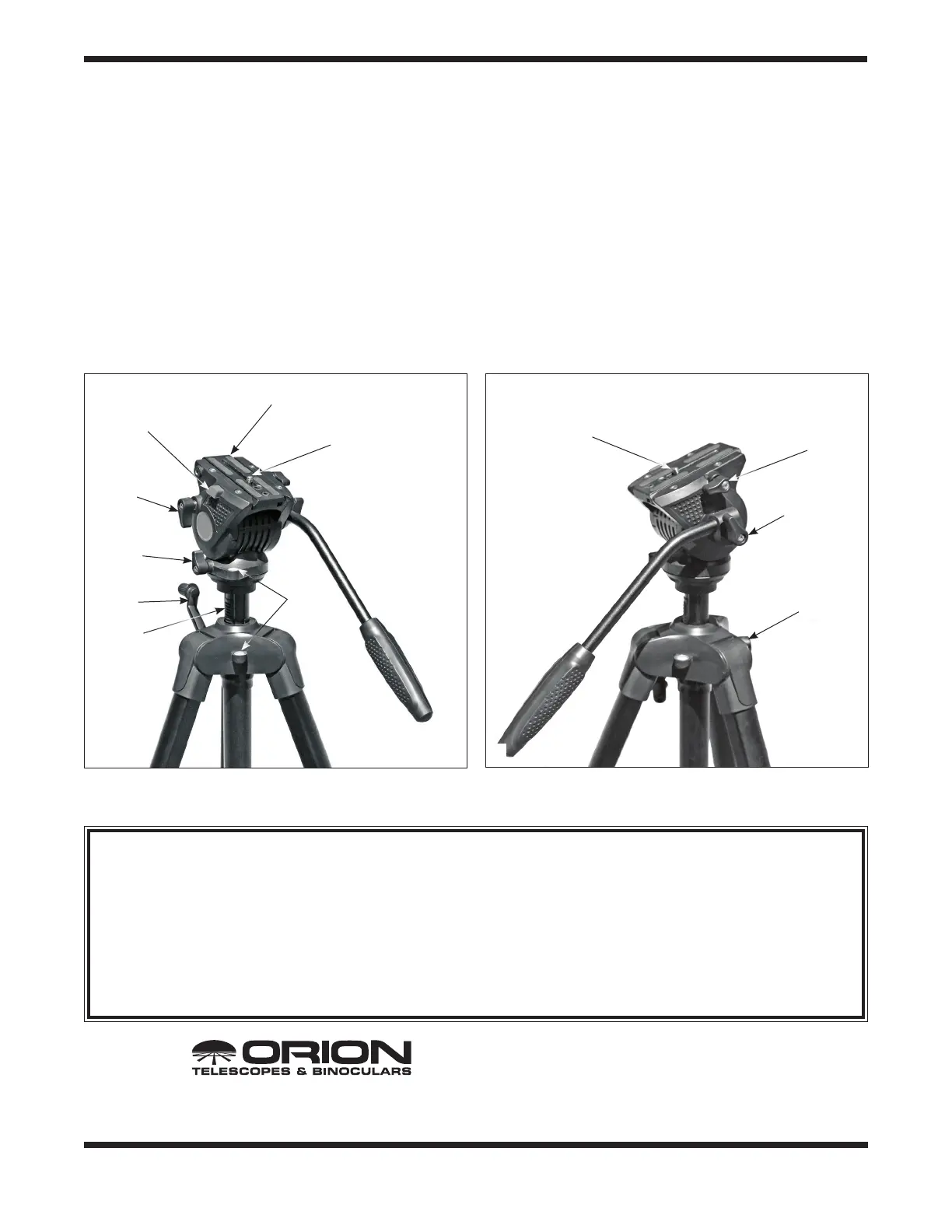

Figure 2. (A) The Tritech II pan head, left side and (B) right side.
Quick-release
plate
Quick-release
plate lock lever
Panning handle
adjustment lever
Center column
lock
Plate release
button
Bubble
levels
Geared
column
Altitude tensioner
and lock
Azimuth tensioner
and lock
Crank
1/4"-20 post
1/4"-20 post
A
B
Care and Cleaning
Clean with mild detergent and a soft cloth. Use a soft
brush and air blower to remove sand and dust from lock-
ing threads and sliding sections. This tripod does not
require regular application of lubricant. Dry and/or clean
the tripod after use in wet, sandy, or dusty conditions.
Not recommended for use in salt water. Do not use in
temperatures lower than -22°F (-30°C). Do not exceed
the recommended load capacity.
One-Year Limited Warranty
This Orion product is warranted against defects in materials or workmanship for a period of one year from the date of purchase. This
warranty is for the benet of the original retail purchaser only. During this warranty period Orion Telescopes & Binoculars will repair
or replace, at Orion’s option, any warranted instrument that proves to be defective, provided it is returned postage paid. Proof of pur-
chase (such as a copy of the original receipt) is required. This warranty is only valid in the country of purchase.
This warranty does not apply if, in Orion’s judgment, the instrument has been abused, mishandled, or modied, nor does it apply to
normal wear and tear. This warranty gives you specic legal rights. It is not intended to remove or restrict your other legal rights under
applicable local consumer law; your state or national statutory consumer rights governing the sale of consumer goods remain fully
applicable.
For further warranty information, please visit www.OrionTelescopes.com/warranty.
Corporate Offices: 89 Hangar Way, Watsonville CA 95076 - USA
Toll Free USA & Canada: (800) 447-1001
International: +1(831) 763-7000
Customer Support: support@telescope.com
Copyright © 2020 Orion Telescopes & Binoculars. All Rights Reserved. No part of this product instruction or any of its contents may be
reproduced, copied, modied or adapted, without the prior written consent of Orion Telescopes & Binoculars.
AN EMPLOYEE-OWNED COMPANY
Specifications
Rotation axes: Two (360° azimuth, ~170°
altitude)
Material: Aluminum alloy + ABS
Max. load capacity: 13.2 lbs. (6kg)
Max. height, with center column contracted:
56.5" (143.5cm)
Max. height, with center column extended:
68.2" (173.2cm)
Length collapsed: 27.3" (69.3cm)
Max. leg diameter: 1.2" (30mm)
Weight: 4.8 lbs. (2.16kg)
